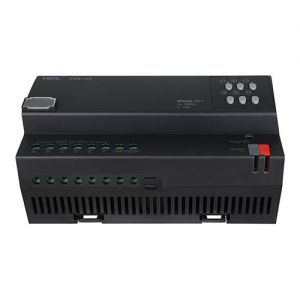

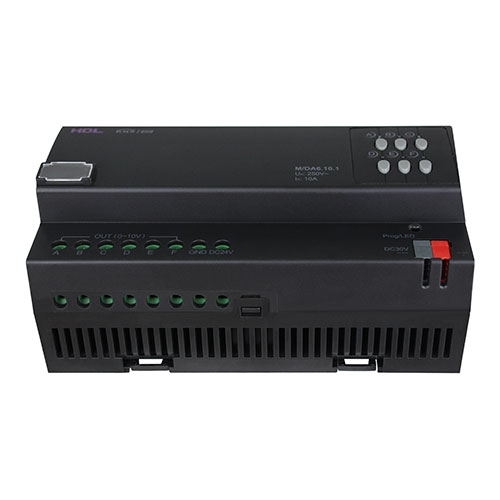

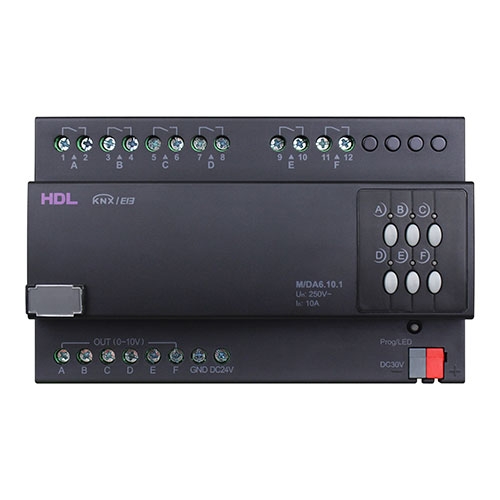

The M-DA6.10.1-232 is ballast dimming and relay output unit, which is capable of controlling multiple load types via its 6 output channels. The module comes with a dedicated manual control feature, making instant system manipulation possible.
Selling points of M-DA6.10.1-232
1. Dual outputs
The M-DA6.10.1-232 combines a 10A switching relay output, with a 0-10v ballast dimmer. Due to this unique combination of functions, the module is perfectly suited to ballast control applications.
2. Load types
Each relay channel from the M-DA6.10.1-232 is capable of being connected to dimmable ballasts and powering them on or off. The dimming and control of both 0-10V LED lights, and 0-10V fluorescents is possible.
3. Brightness value
Exact light intensity requirements can be met with the M-DA6.10.1-232, as the light can be increased or decreased in incremental stages. A user can choose between 1% brightness at 0.1volts, and 100% brightness at 10V.
4. Staircase lighting
When the module is utilized to control staircase lighting, the run time of the dimmer is able to be modified. This enables the lighting to match the average speed at which a person can ascend or descend the staircase.
5. Scene Recovery
When the dimmer has been powered off, it is able to automatically restore the last scene used when it is powered on again. This gives the user a system that remembers their previous scene, and requires no further control or modification.
