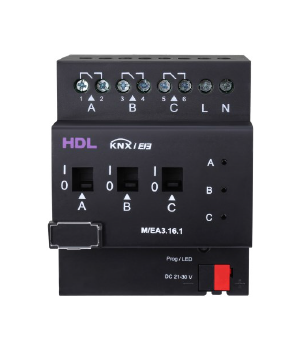

KNX Energy Meter Actuator

Parameters

Model : HDL-M/EA3.16.1

SKU : 313010007

Bus Power : mA

Width : 72 mm

Height : 90 mm

Depth : 66 mm

Weight : 255 g


[Επικοινωνήστε για Τιμή]
313010007

Προσθήκη στη Λίστα Αγαπημένων

KNX Energy Meter Actuator, Din-rail Mounted, AC110V-240V, 3CH single phase Power meter, Able to Measure Active energy,current, voltage, frequency, active power, apparent power, power fact of each Channel or Totally three channels. the threshold values of current, voltage and active power of each channel can be set, supports 3CH 16A relay control, Supoorted by GraView Energy Management Software

Document (M_EA3-16-1-Energy-Actuator-(Hardware-Version：A)-(KNX).pdf, 297 Kb) [Λήψη]

Ets Document (Energy_3fold_Actuator_V1-0.zip, 146 Kb) [Λήψη]
