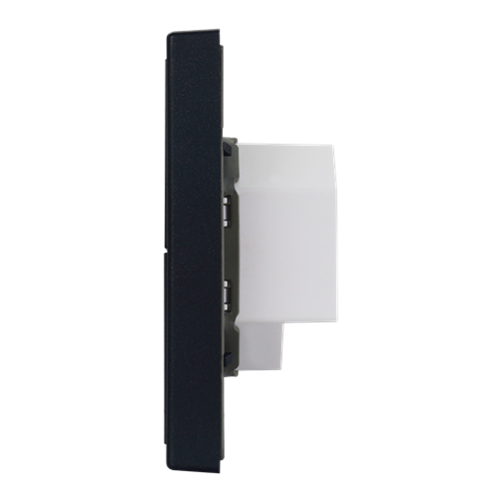

KNX Tile Series 4 Buttons Panel B

Basic Parameters

Working voltage: 21~30V DC

Working current: M/PT1RA.1: 7mA / 30V DC

           M/PT1RB.1: 8.5mA / 30V DC

        M/PT2RA.1: 9mA / 30V DC

        M/PT2RB.1: 11.5mA / 30V DC

        M/PT4RA.1: 12mA / 30V DC

        M/PT4RB.1: 12mA / 30V DC

Communication: KNX

Cable diameter of KNX terminal: 0.6 - 0.8mm

External Environment

Working temperature: -5℃~45℃

Working relative humidity: ≤90%

Storage temperature: -20℃~60℃

Storage relative humidity: ≤93%

Specifications

Dimensions: Plastic version: 86×86×11(mm)

       Metal version: 90×90×11(mm)

Net weight: Plastic version: 64g

     Metal version: 110g

Housing material: Plastic version: Flame retardant PC

            Metal version: Aluminum alloy

Protection rating (Compliant with EN 60529): IP20




[Επικοινωνήστε για Τιμή]

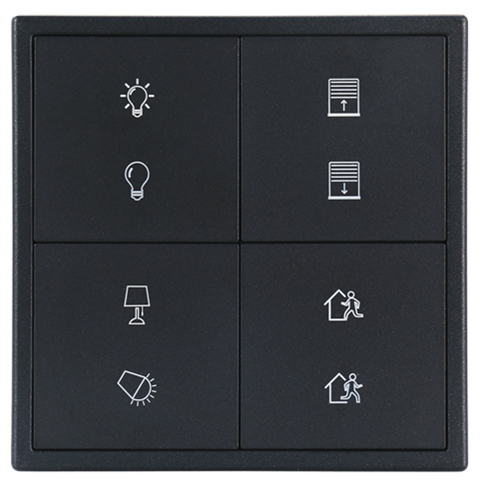

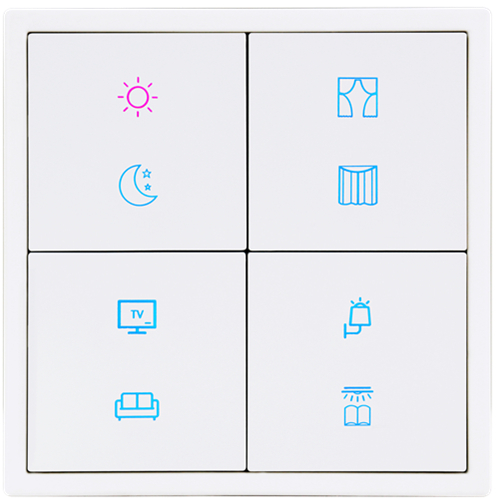

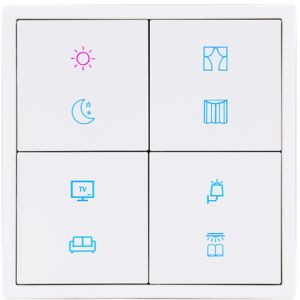

KNX Tile series Button Panel 2.0 contains 1/2/4-button panels, both plastic and metal versions. The B version enables a single button to split to two buttons in ETS, thereby allowing the 1/2/4-button panels to manage 2/4/8 controls, respectively. Icons and text of each button supports laser labelling. With built-in RGB backlight for each pushbutton, the color and brightness level can be set by ETS or manually set on the panel. The panels support controls of lighting, curtains, scenes, music, etc

Document (KNX_Tile_Series_4_Buttons_Panel_B_.pdf.crdownload, 315 Kb) [Λήψη]
