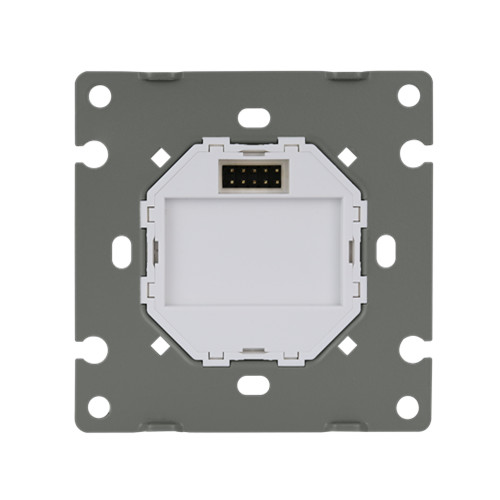

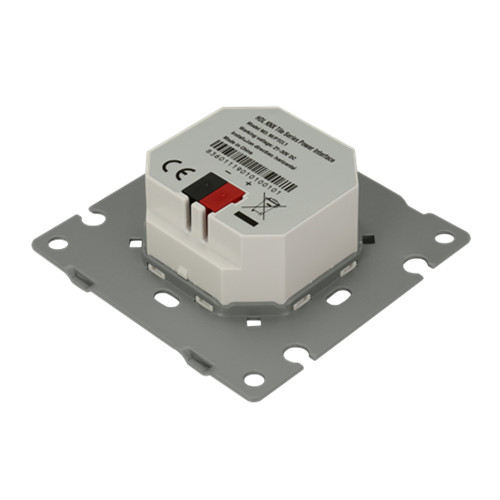

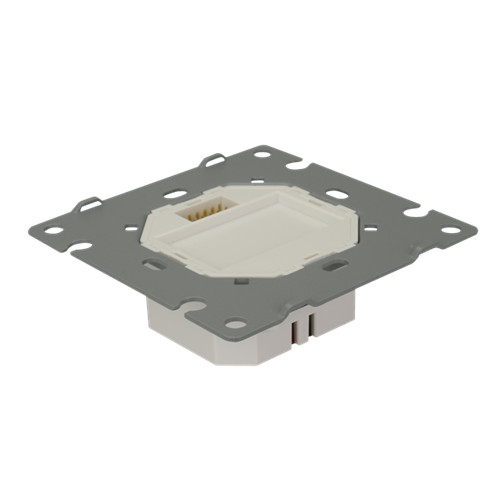

Panel Power Interface EU

Basic Parameters

Working voltage   21~30V DC

Communication     KNX

Cable diameter of KNX terminal   0.6-0.8mm



External Environment

Working temperature -5℃~45℃

Working relative humidity ≤90%

Storage temperature -20℃~60℃

Storage relative humidity ≤93%

Specifications

Dimensions 81.4×81.4×27 (mm)

Net weight 69g

Housing material Flame-retardant nylon, metal

Installation Wall box (See Figure 5)

Protection rating (Compliant with EN 60529) IP20




[Επικοινωνήστε για Τιμή]

Προσθήκη στη Λίστα Αγαπημένων

 Panel Power Interface EU, provides DC power and communicates to HDL Tile Series Wall panel Excludes Tile Thermostat 2.0

Document (KNX_Tile_Series_Power_Interface_.pdf.crdownload, 300 Kb) [Λήψη]
