Space Grey

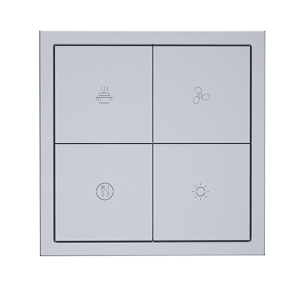

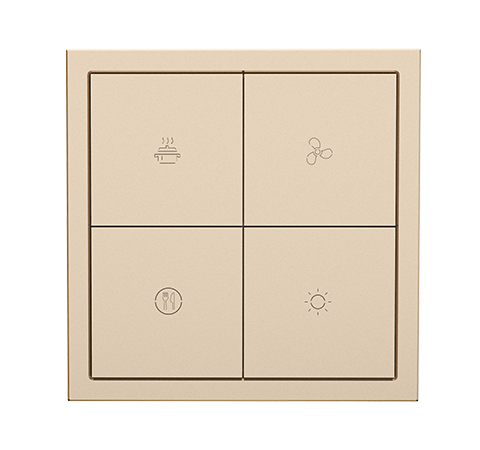

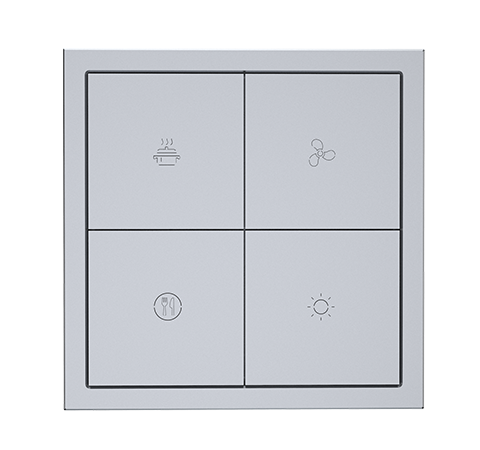

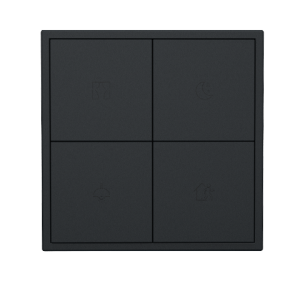

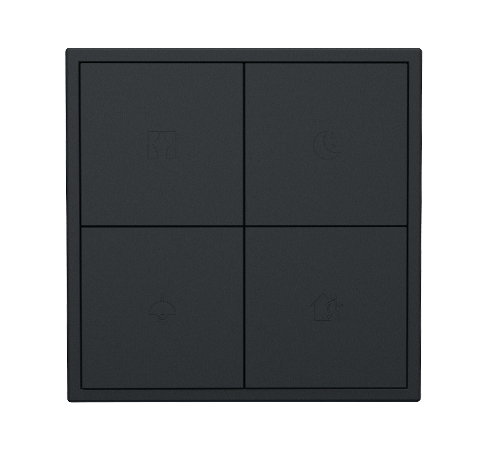

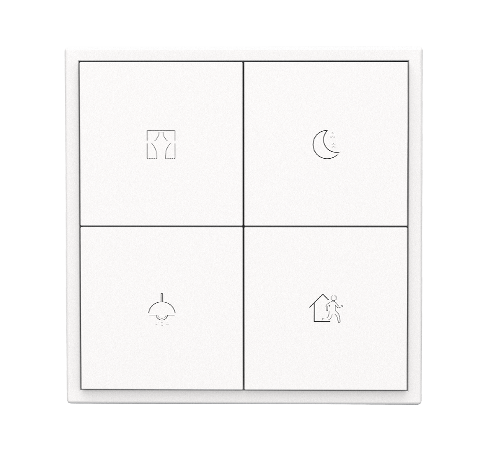

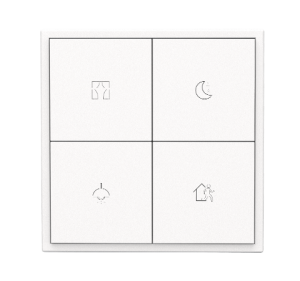

Tile Series 4 Button Smart Panel EU 2.0

Product code : M/PT4RA.1

Working Voltage: 21~30V DC

Communication: KNX

Cable diameter of KNX terminal: 0.6 - 0.8mm

Working temperature: -5℃~45℃

Working relative humidity: ≤90%

Storage temperature: -20℃~60℃

Storage relative humidity: ≤93%


[Επικοινωνήστε για Τιμή]

Προσθήκη στη Λίστα Αγαπημένων

 Tile Series 4 Button Smart Panel EU 2.0, used to control lighting,curtain and scene,plastic material(ivory white/ash gray color),Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon, Frame is NOT included, Powered by M/PTCI.1

Document (20220402180423678.pdf, 315 Kb) [Λήψη]
