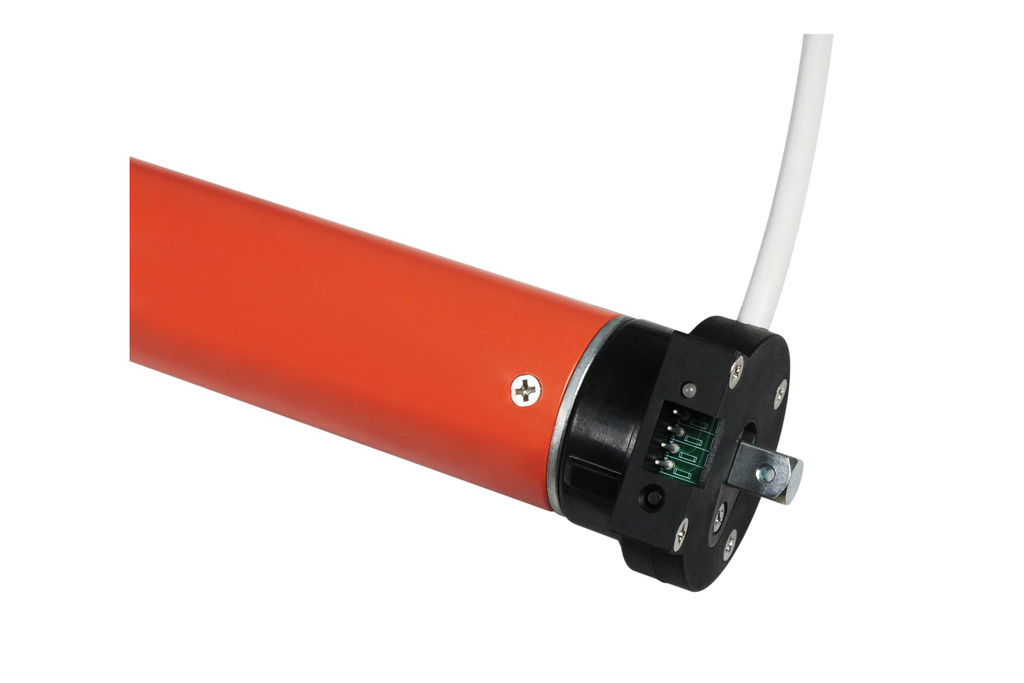

The MVSM45B.12 is a tubular blind controller, which has been designed to automate all common roller blinds. When the unit receives a HDL Buspro signal, the tubular motor can open, close, or open/close a blind to a set percentage.
When operating, the unit can output 10 Nm of torque giving an effortlessly smooth action, while operating at a barely audible 42dB.
1. Ultra-quiet Operation
Operating at a mere 42dB, the blind controller is whisper quiet, this allows seamless integration into any environment.
2. High Torque & Large Load
With a motor capable of outputting 10N.m of torque, the blind controller can raise and lower a load of 15Kg. A tube diameter of 55mm allows multiple fabric types to be used, and helps to increase operational effectivity and reliability.
3. Customized shading percentages
With percentage control a user is able to specify exactly how much they want their blinds opened. These percentages can also be activated automatically by scenes, or sensors, to create an optimum environment.
4. Accurate Operational Distance
To ensure a long service life a limiter has been installed that prevents the motor from over retracting, or over extending. The blind can also be programmed with the exact distance it must travel, so wear is minimized and energy is saved.
If the blind experiences a power outage while operating, it will immediately stop, and its position will be recorded. When the power is reconnected, the module can calculate and the remaining distance it needs to travel to achieve its last command.
5. Convenient wiring
Using the Buspro interface blinds can be powered and controlled using ‘parallel wiring’. In a normal system each blind would have to be wired directly to the distribution box, with the Buspro system the blinds may be connected to each other, with only the first blind in the chain being connected to the distribution box.
This dramatically speeds up the installation time, and reduces the cost of rewiring.
