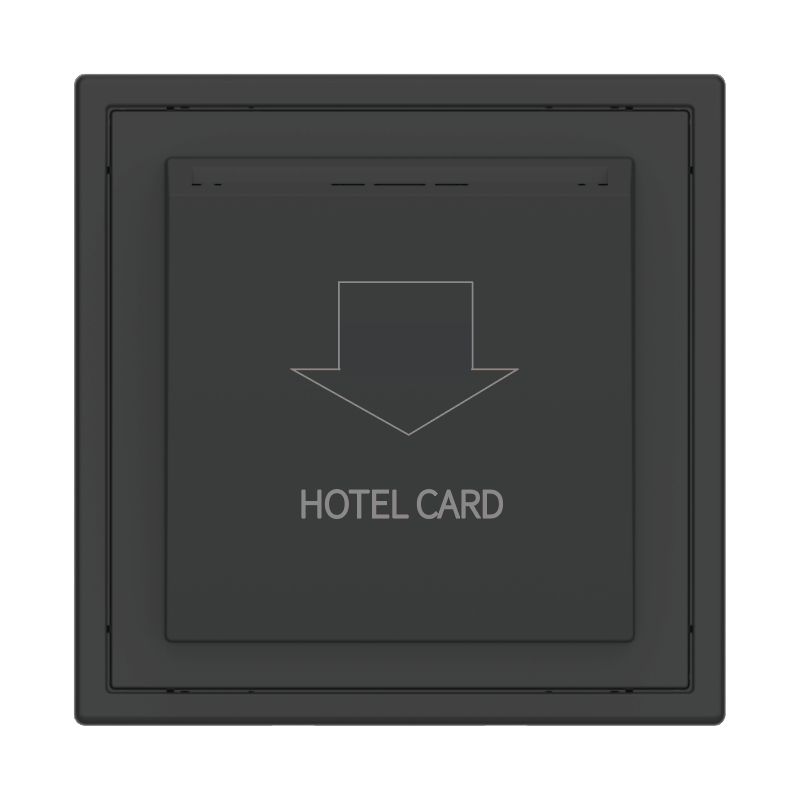

Tile Series Card Holder Panel 2.1, Dry contact， master card panel for energy control of hotel guest room , Voltage 24V DC ，
High frequency M1 card 13.56 MHz ，Four colors(ivory white, ash gray, Champagne Gold and space gray) are available for plastic,
Frame is NOT included
Dimensions (mm): 86×86×45.8
Tile Series 3 button smart panel 2.1, used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon,
Frame is NOT included
Poweredby MPFPIT-1P-KT.18
Dimenstions (mm): 86*86*10.5
Tile Series Thermostat 2.1, used to control air conditioning, floor heating and fresh air system, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor, humidity sensor and proximity sensor, with LED backlight.
Frame is NOT included,
Powered by MPFPIT-2P-KT.18
Dimensions (mm): 86*86*10.5
Tile Series 2 button smart panel 2.1, used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space
gray), Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon, Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Tile Series 3 button smart panel 2.1, used to control lighting, curtain and scene, Metal(Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
iTouch Series 2 Buttons Touch Panel EU, with Aluminum Frame, used to control lighting,curtain and scene,
LED backlight and LED indicator.
Powered by M/PCI.1-A
Source 10 Touch screen, Android OS with built-in Smart home App to control lighting, curtain,air conditioning, security, floor heating,
music etc, 1200*2000Resolution, built-in Microphone to support between-in Screen intercom, Built-in proximity sensor/Lux sensor,
Bult-in temperature and humidiry sensor,Ethernet access via Wifi or RJ45, IP20, Color Option：Dark Purple，
Powered by specialized power interface to support Buspro, KNX, Zigbee protoco.
Dimensions (mm): 301.3*155.2*9.8
Tile Series Thermostat 2.1, used to control air conditioning, floor heating and fresh air system, metal(Champagne Gold/space gray color),
Built-in temperature sensor, humidity sensor and proximity sensor, with LED backlight.
Frame is NOT included,
Powered by MPFPIT-2P-KT.18
Dimensions (mm): 86*86*10.5
Tile Series 2 button smart panel 2.1, used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space
gray), Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon, Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
The Granite Display is a multifunctional touch control panel with a 4.3-inch high-resolution 800×480 LCD. You can quickly access your most-used functions or scenes via shortcut buttons on the home screen and customize these shortcuts as desired. Exploring the user interface, you’ll find it intuitive and comfortable for controlling your home devices.
With an aluminum panel, it is used to control lighting, curtains, scenes, air conditioning, floor heating, music, and fresh air systems.
Built-in temperature sensor, humidity sensor, and proximity sensor.
Color options: Space Gray frame / black glass.
Powered by M/PCI2PU.2, supports both vertical and horizontal user interface (UI).
Dimensions (mm): 86 × 116 × 11
Modern Series DLP Smart Panel US, with LCD screen and Aluminum Frame, Multipage used to control the lighting, curtain, scene, music, AC and floor heating. built-in temperature sensor.
Powered by M/PCI.3-A
Dimension (mm): 86*116*10
Tile Series 1 button smart panel 2.1, used to control lighting,curtain and scene, plastic(ivory white/ash gray/champagne
gold/space gray). Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon.
Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
with Aluminum Frame, used to control lighting,curtain and scene, LED backlight and LED indicator. Powered by M/PCI.3-A
Dimension (mm): 86*116*10
Tile Series Thermostat 2.1, used to control air conditioning, floor heating and fresh air system, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor, humidity sensor and proximity sensor, with LED backlight.
Frame is NOT included,
Powered by MPFPIT-2P-KT.18
Dimensions (mm): 86*86*10.5
Tile Series 4 button smart panel 2.1，used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Tile Series 2 button smart panel 2.1, used to control lighting, curtain and scene, Metal(Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon.
Frame is NOT included.
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Tile Series 8 button smart panel 2.1，used to control lighting,curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon,
Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimenstions (mm): 86*86*10.5
Tile Series Card Holder Panel 2.1, Dry contact， master card panel for energy control of hotel guest room , Voltage 24V DC ，
High frequency M1 card 13.56 MHz ，Four colors(ivory white, ash gray, Champagne Gold and space gray) are available for plastic,
Frame is NOT included
Dimensions (mm): 86×86×45.8
