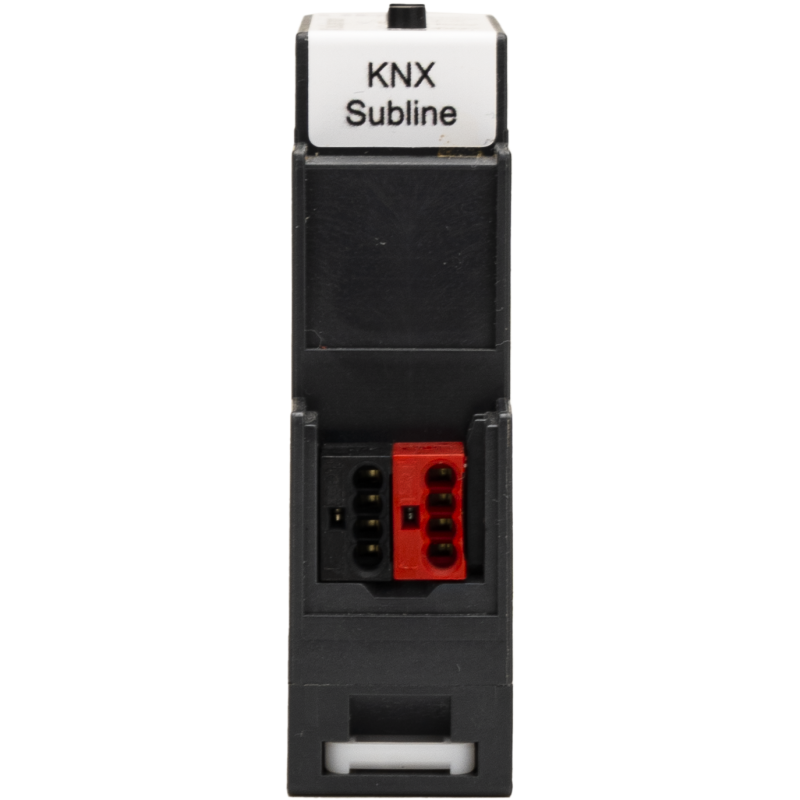

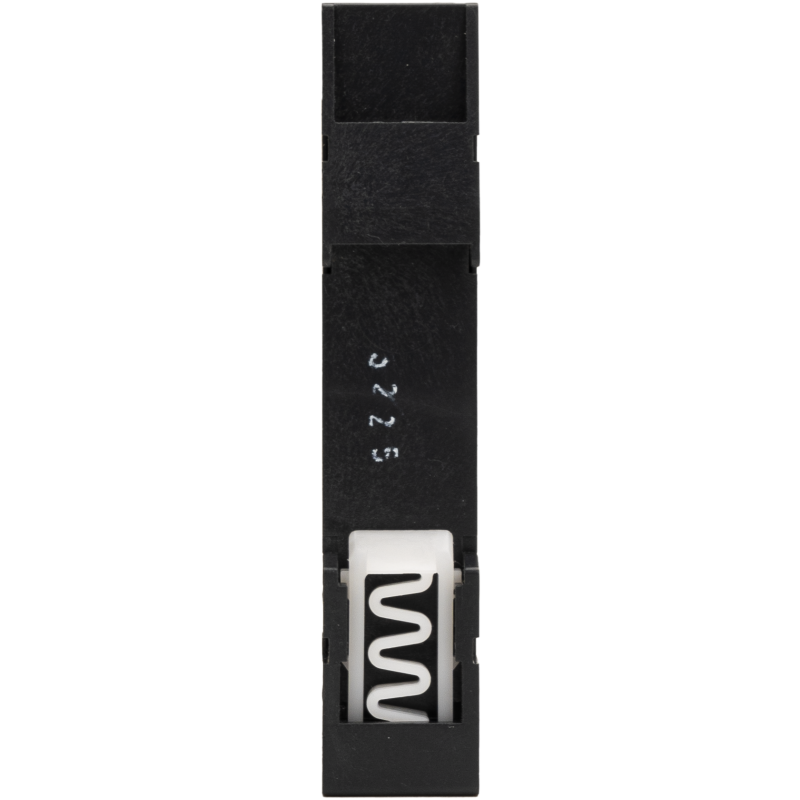

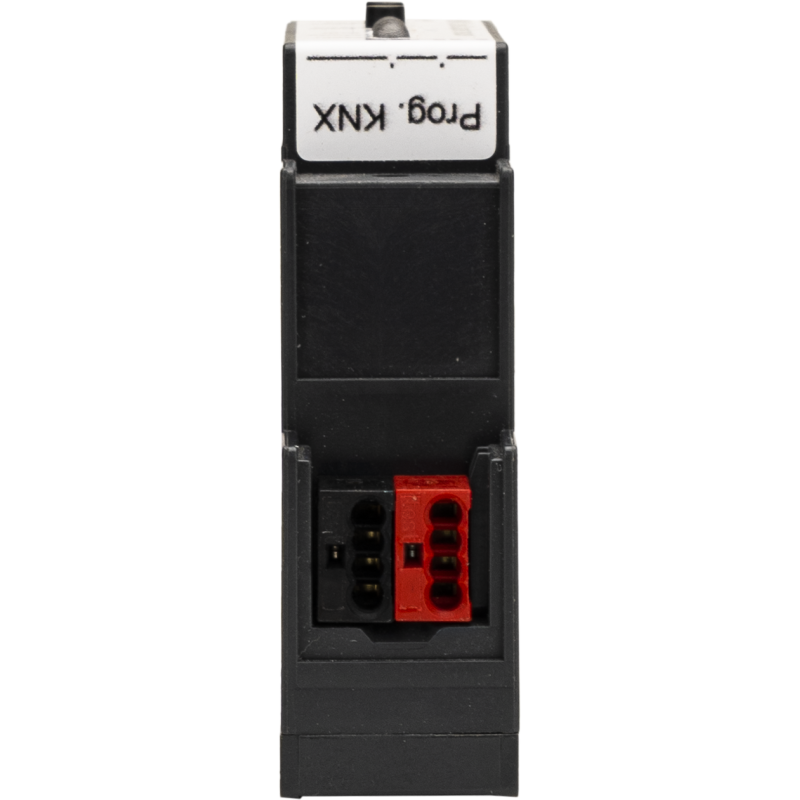

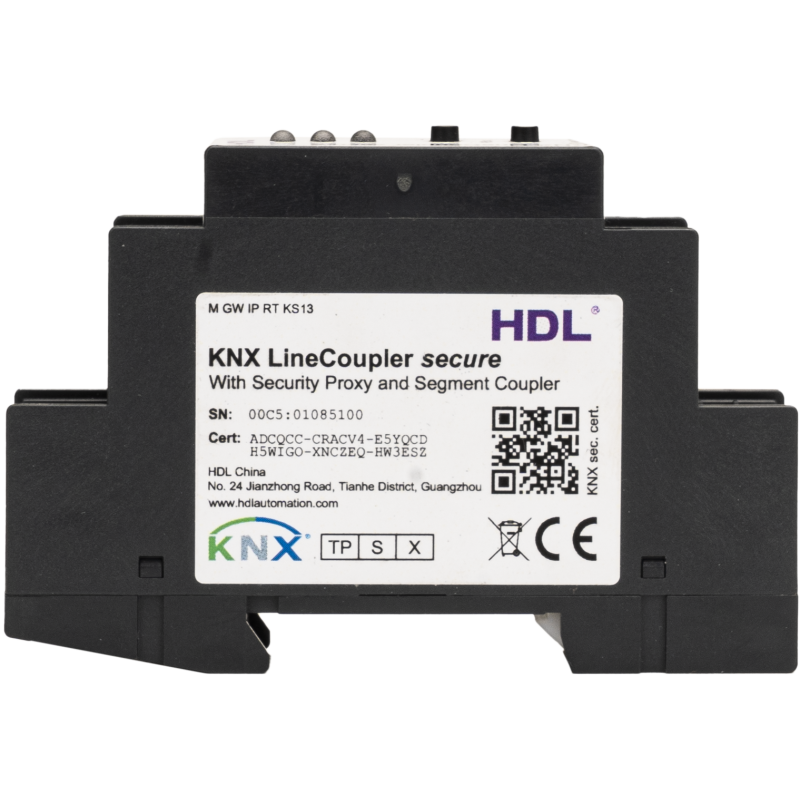

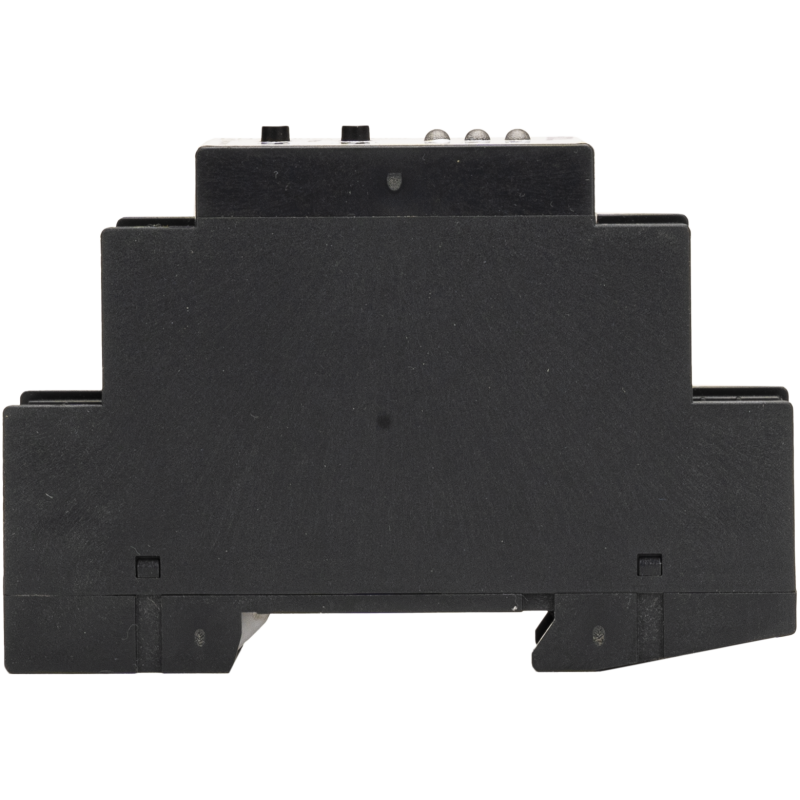

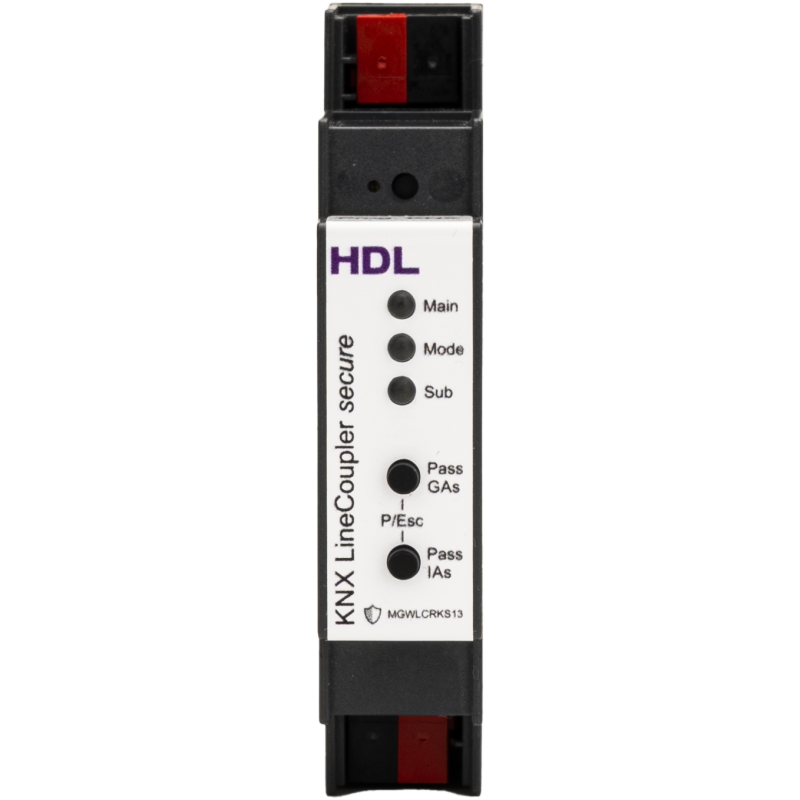

KNX Line Coupler secure, With Security Proxy and Segment Coupler, DIN-Rail Mount, to be used as coupler for connecting two KNX bus segments.
Provides galvanic isolation between lines, equipped with extended filter table for main group, supports KNX Data Security and KNX Long Frames,
supports Security Proxy and Segment Coupler, front buttons for disabling telegram filter during testing, LEDs indicate operating conditions
and communication errors on the KNX bus, powered via KNX main line bus.with KNX Security
Dimensions: 61*18*90
Installed in junction box or on DIN rail with accessory, Supports protocols conversion between RS485 to KNX,Three working modes: string mode, hexadecimal mode and data mode.
Dimension (mm): 46*45*18
This timer controller is embedded with RTC, can run real time itself, can used as master timer and slave timer.
Dimension (mm): 144*90*66
Cable for KNX VRV/VRF Indoor Gateway,
MHVACSGW-KT.13 must work with this cable.
KNX IP Router Secure, KNX IP router with KNX Security, DIN-Rail Mount，
It can be used as line‐ or backbone coupler and provides a data connection between
the upper KNX net/IP line (main line or backbone) and the lower TP KNX bus line (sub line).
It also provides with the tunnelling protocol a connection point for ETS to enable commissioning and monitoring.with KNX Security
Dimensions: 61*18*90
DIN-Rail Mount, with USB Conector galvanically isolated from KNX Bus that establish a bidirectional data connection between PC and KNX BUS, Enable addressing, setting parameters, visualzation, protocolin and diagnoisis of the bus devices.
Dimension (mm): 70*90*36
KNX USB Interface, With KNX Long Frames, USB-C, DIN-Rail Mount, with USB-C connector galvanically isolated from KNX Bus
that establishes a bidirectional data connection between PC/laptop and KNX installation bus, supports programmingvia ETS, KNX Long Frames,
faster download, with LEDs indicating operating status and bus communication errors.with KNX Security
Dimensions: 61*18*90
Gateway between HDL Link and KNX Bus communication,supports protocol http\tcp\udp\mqtt , supports KNX Assistance Software, KNX ETS, ON+, Cloud server Support intranet communication, remote access, integrating scene, logic, security,
clock, server automatic prompt upgrade,data backup, Driver management of third-party products and other functions, support homekit, need auxiliary power supply 200mA/24V DC
Dimension (mm): 90*36*63.7
KNX VRV/VRF Indoor Gateway, Supports indoor units of multiple VRV/VRF or duct AC brands, including Daikin, Hitachi, Gree, Mitsubishi Heavy Industries, Midea, Hisense, Toshiba, York, Haier, etc.
Can work independently or alongside original panels (master-slave adaptation automatic), and supports third-party panel replacement.
Supports wired centralized control, Bluetooth firmware upgrades, remote fault diagnosis, and testing via a dedicated Bluetooth mini program.
Απαιτείται Indoor Gateway AC cable
Used for bidirectional data exchange between KNX and RS232, KNX and RS485. It supports 3 work modes: String mode, Hexadecimal mode, Data mode, supports up to 200 control targets.
Dimension (mm): 90*72*66
DIN-Rail Mount, to be used as coupler and Repeater(to amplify the signal), if as a line coupler, it can be linked with other line or backbone line, a separate power supply include a choke is required for each new line and each line will be electrically isolated, the line coupler can filter telegrams and permit pass or black them to other adjaccent lines.
Dimension (mm): 70*90*36
DIN-Rail Mount, both110/250 VAC, 50-60Hz, can output maximum 960mA Current to EIB BUS, Overload and Short-Circuit Protection, with Reset Button.
Dimension (mm): 144*90*66
KNX Dual Output Power Supply Module, DIN-Rail Mount, 100-240V~ 50/60Hz,
Provides one KNX BUS output 30V DC 640mA and one 24V DC 640mA auxiliary output,
overload, short-circuit, over-voltage and over-temperature protection, manual reset function.
Dimensions: 72*90*64
KNX VRV/VRF Outdoor Gateway，supports up to 64 indoor units. It enables centralized connection of multiple air conditioners to a smart home control system or BMS system.
Supports RS485, KNX, or UART (with optional wireless module) and is compatible with major brands including
Daikin, Hitachi, Toshiba, Mitsubishi Electric, Hisense, Haier, Panasonic, York, Midea, LG, Gree, Samsung, Trane, Carrier, etc.
Dimensions(mm): 108*87*49.7
It can be used as line‐ or backbone coupler and provides a data connection between the upper KNX net/IP line (main line or backbone) and the lower TP KNX bus line (sub line).
It also provides with the tunnelling protocol a connection point for ETS to enable commissioning and monitoring.
Dimension (mm): 70*90*36
DIN-Rail Mount,10A per Channel, both 110/250 VAC, 50 60Hz,internal use of 16A High-current magnetic relay.
Dimension (mm): 72*90*66
DIN-Rail Mount, totally 19CH (12CH 5A TV8 relay, 5CH 10A Magnetic latching relay, 2CH 1A Mosfet Dimming),both110/250 VAC,50-60Hz, used for controlling lighting, curtains and FCU. Auxiliary current:97mA/30V DC.
Dimension (mm): 144*90*66
Input Voltage:AC100-240V, 50/60Hz), 2CH, 10A/CH relay output, 4CH dry contact input, 4CH LED output, 12mA/CH, long press the button to control all the relay channels on/off, With scene control, staircase light control, delay control functions,
Must work with Auxiliary Power input DC20-30V
Dimension (mm): 46.8×46.8×23
KNX Dual Output Power Supply Module, DIN-Rail Mount, 100-240V~ 50/60Hz,
Provides one KNX BUS output 30V DC 640mA and one 24V DC 640mA auxiliary output,
overload, short-circuit, over-voltage and over-temperature protection, manual reset function.
Dimensions: 72*90*64
DIN-Rail Mount, 1.5A per Channel and totally 6A, both110/220 VAC, 50-60Hz,LED status indicator and bypass button for each output, Parallel channels can form heavy current output.
Dimension (mm): 144*90*64
KNX IP Router Secure, KNX IP router with KNX Security, DIN-Rail Mount，
It can be used as line‐ or backbone coupler and provides a data connection between
the upper KNX net/IP line (main line or backbone) and the lower TP KNX bus line (sub line).
It also provides with the tunnelling protocol a connection point for ETS to enable commissioning and monitoring.with KNX Security
Dimensions: 61*18*90
KNX Line Coupler secure, With Security Proxy and Segment Coupler, DIN-Rail Mount, to be used as coupler for connecting two KNX bus segments.
Provides galvanic isolation between lines, equipped with extended filter table for main group, supports KNX Data Security and KNX Long Frames,
supports Security Proxy and Segment Coupler, front buttons for disabling telegram filter during testing, LEDs indicate operating conditions
and communication errors on the KNX bus, powered via KNX main line bus.with KNX Security
Dimensions: 61*18*90
