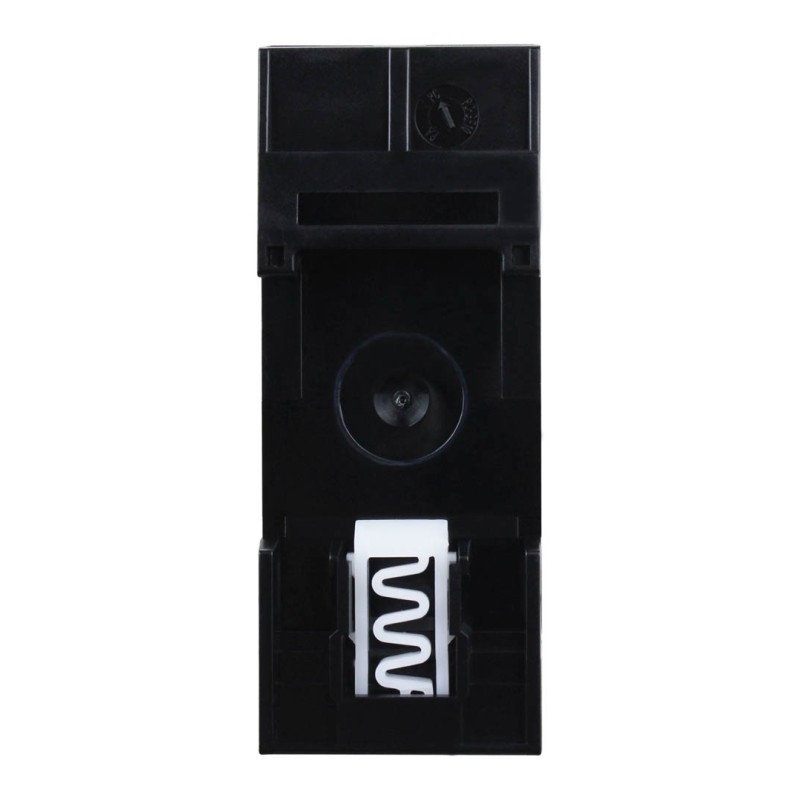

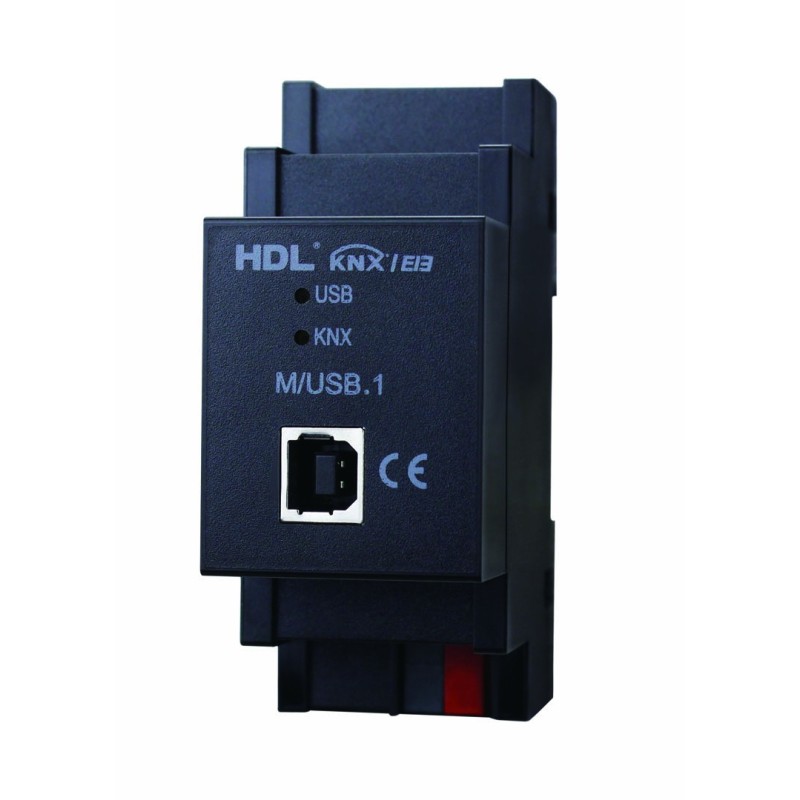

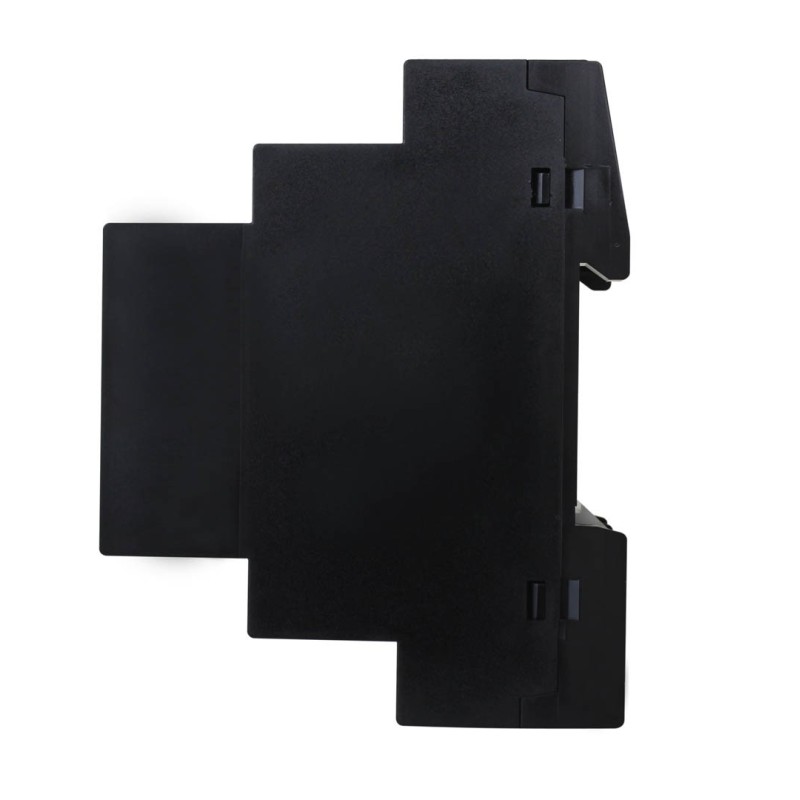

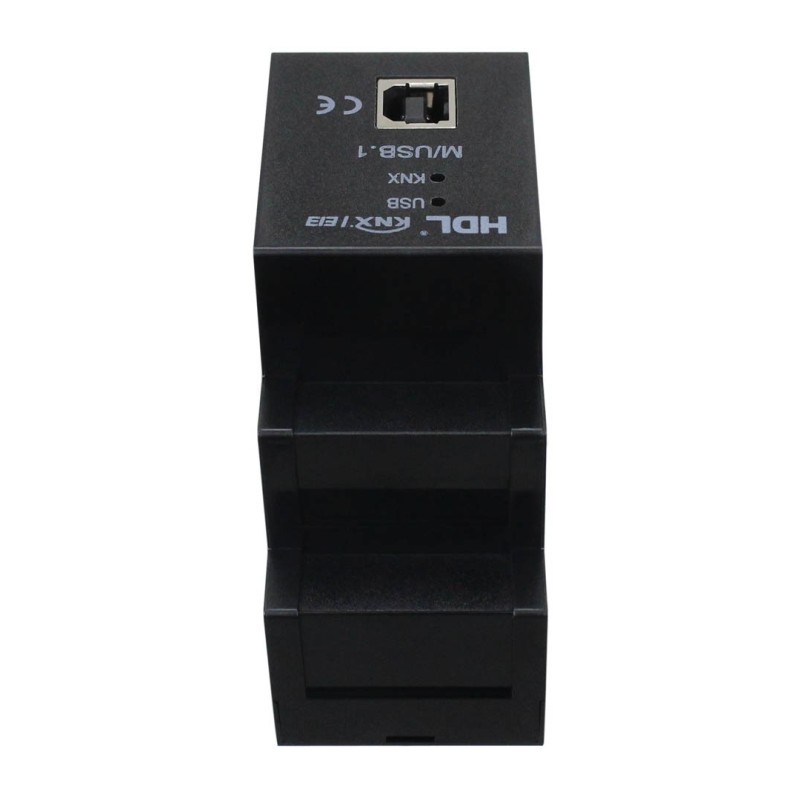

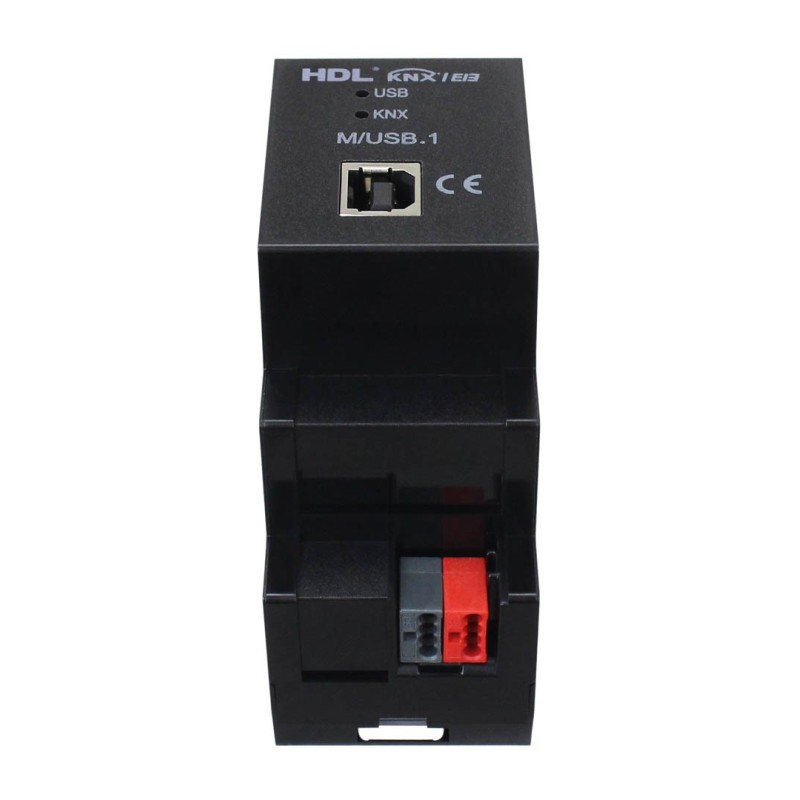

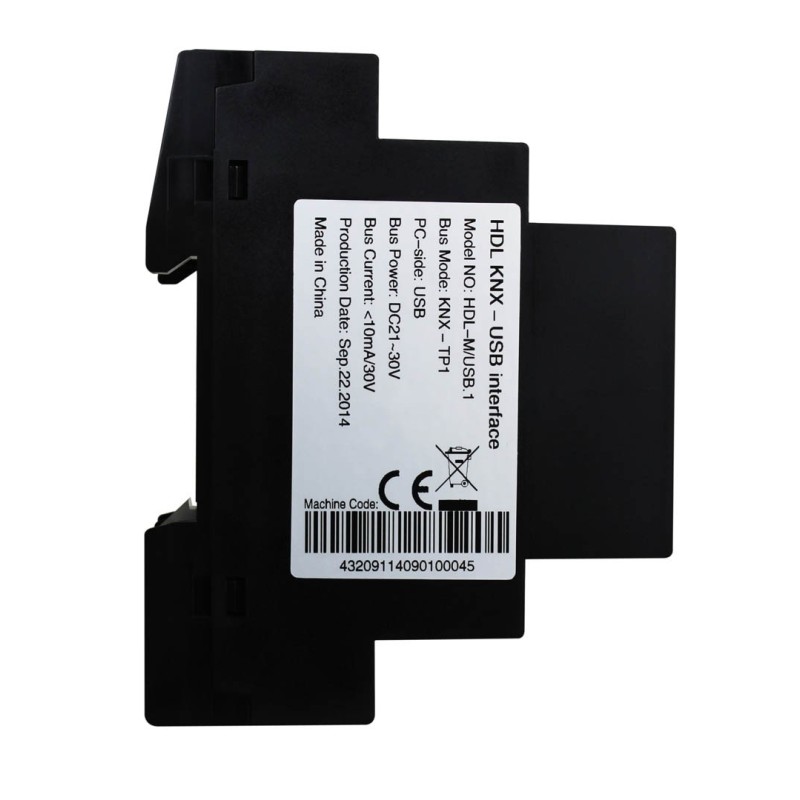

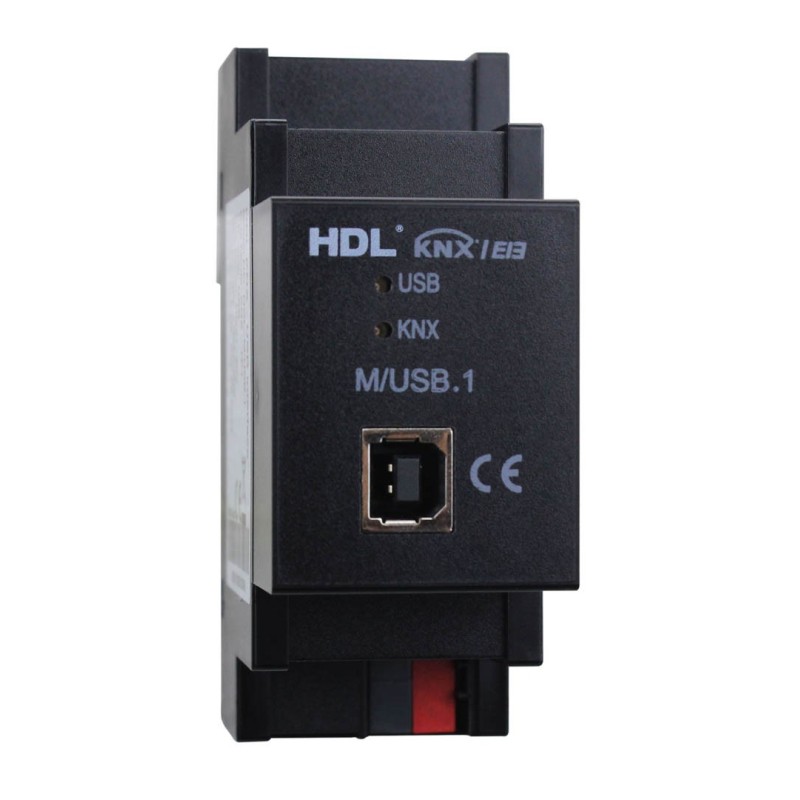

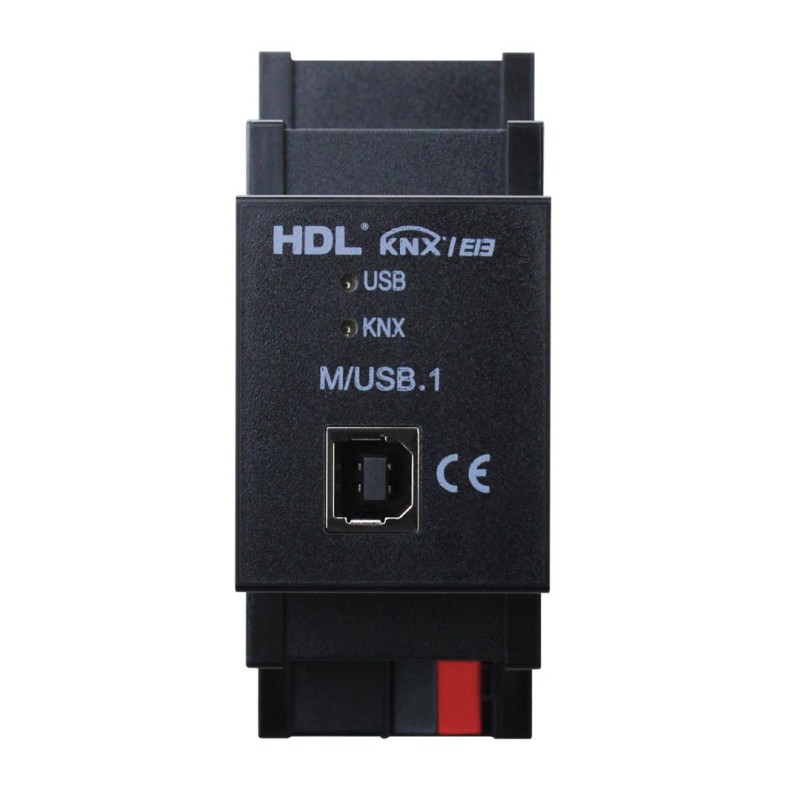

KNX USB Interface

Cable for KNX VRV/VRF Indoor Gateway,

MHVACSGW-KT.13 must work with this cable.

KNX USB Interface, With KNX Long Frames, USB-C, DIN-Rail Mount, with USB-C connector galvanically isolated from KNX Bus
that establishes a bidirectional data connection between PC/laptop and KNX installation bus, supports programmingvia ETS, KNX Long Frames,
faster download, with LEDs indicating operating status and bus communication errors.with KNX Security

Dimensions: 61*18*90

KNX VRV/VRF Outdoor Gateway，supports up to 64 indoor units. It enables centralized connection of multiple air conditioners to a smart home control system or BMS system.
Supports RS485, KNX, or UART (with optional wireless module) and is compatible with major brands including
Daikin, Hitachi, Toshiba, Mitsubishi Electric, Hisense, Haier, Panasonic, York, Midea, LG, Gree, Samsung, Trane, Carrier, etc.

Dimensions(mm):  108*87*49.7

KNX IP Router Secure, KNX IP router with KNX Security, DIN-Rail Mount，
It can be used as line‐ or backbone coupler and provides a data connection between
the upper KNX net/IP line (main line or backbone) and the lower TP KNX bus line (sub line).
It also provides with the tunnelling protocol a connection point for ETS to enable commissioning and monitoring.with KNX Security

Dimensions: 61*18*90

KNX VRV/VRF Indoor Gateway, Supports indoor units of multiple VRV/VRF or duct AC brands, including Daikin, Hitachi, Gree, Mitsubishi Heavy Industries, Midea, Hisense, Toshiba, York, Haier, etc.
Can work independently or alongside original panels (master-slave adaptation automatic), and supports third-party panel replacement.
Supports wired centralized control, Bluetooth firmware upgrades, remote fault diagnosis, and testing via a dedicated Bluetooth mini program.

Απαιτείται Indoor Gateway AC cable

This timer controller is embedded with RTC, can run real time itself, can used as master timer and slave timer.
Dimension (mm): 144*90*66

Used for bidirectional data exchange between KNX and RS232, KNX and RS485. It supports 3 work modes: String mode, Hexadecimal mode, Data mode, supports up to 200 control targets.
Dimension (mm): 90*72*66

DIN-Rail Mount, both110/250 VAC, 50-60Hz, can output maximum 960mA Current to EIB BUS, Overload and Short-Circuit Protection, with Reset Button.
Dimension (mm): 144*90*66

KNX Dual Output Power Supply Module, DIN-Rail Mount, 100-240V~ 50/60Hz,
Provides one KNX BUS output 30V DC 640mA and one 24V DC 640mA auxiliary output,
overload, short-circuit, over-voltage and over-temperature protection, manual reset function.

Dimensions: 72*90*64

Gateway between HDL Link and KNX Bus communication,supports protocol http\tcp\udp\mqtt , supports KNX Assistance Software, KNX ETS, ON+, Cloud server Support intranet communication, remote access, integrating scene, logic, security,
clock, server automatic prompt upgrade,data backup, Driver management of third-party products and other functions, support homekit, need auxiliary power supply 200mA/24V DC
Dimension (mm): 90*36*63.7

Installed in junction box or on DIN rail with accessory, Supports protocols conversion between RS485 to KNX,Three working modes: string mode, hexadecimal mode and data mode.
Dimension (mm): 46*45*18

KNX Line Coupler secure, With Security Proxy and Segment Coupler, DIN-Rail Mount, to be used as coupler for connecting two KNX bus segments.
Provides galvanic isolation between lines, equipped with extended filter table for main group, supports KNX Data Security and KNX Long Frames,
supports Security Proxy and Segment Coupler, front buttons for disabling telegram filter during testing, LEDs indicate operating conditions
and communication errors on the KNX bus, powered via KNX main line bus.with KNX Security

Dimensions: 61*18*90

It can be used as line‐ or backbone coupler and provides a data connection between the upper KNX net/IP line (main line or backbone) and the lower TP KNX bus line (sub line).
It also provides with the tunnelling protocol a connection point for ETS to enable commissioning and monitoring.
Dimension (mm): 70*90*36

DIN-Rail Mount, to be used as coupler and Repeater(to amplify the signal), if as a line coupler, it can be linked with other line or backbone line, a separate power supply include a choke is required for each new line and each line will be electrically isolated, the line coupler can filter telegrams and permit pass or black them to other adjaccent lines.
Dimension (mm): 70*90*36

Occupancy Plus Sensor，Input voltage12 - 30V DC, support surface mount & surface mount，built in 24GHz millimeter wave
radar technology，includes LUX sensor, Temprature sensor , 2 ch Dry contact input, 1HVAC control，1 Constant brightness
control, logic block. supports Master & slave mode. Maximum detection range: diameter 8m，Support KNX Secure
Dimensions (mm): Φ66 x 34.6, Φ48.5 x 27.5

DIN-Rail Mount, both110/240 VAC, 50-60Hz, supports communication between the HDL KNX BUS and the DALI BUS system. capable of managing 64 DALI ballasts, support switch, dimming, color temperature adjustment, RGB/RGBW/xy coordinate color control ,DALI2 Compitable.
Dimension (mm):  72*90*64

The Granite Display is a multifunctional 4-inch high-resolution touch control panel. You can quickly access your most-used functions or scenes via shortcut buttons on the home screen, and customize these shortcuts as desired. As you explore more of the user interface, you’ll find it intuitive and comfortable for controlling your home devices.

With a 4-inch LCD and aluminum panel, it is used to control lighting, curtains, scenes, air conditioning, floor heating, music, and fresh air systems.
Built-in temperature sensor, humidity sensor, and proximity sensor.
Color options: Space Gray frame / black glass.
Powered by M/PCI2PE.1

Dimensions (mm): 86 × 86 × 11

DIN-Rail Mount,10A per Channel, both110/250 VAC, 50-60Hz,internal use of 16A High-current magnetic relay,control motor via its relay function.
Dimension (mm):  144*90*66

Airkit2 Pro Air Quality Sensor can be used to detect and display indoor air quality, including air quality indicators such as
environmental temperature and humidity, Lux, PM2.5, PM1.0, PM10, CO2, TVOC and HCHO.

Main functions:

1. Built-in temperature and humidity detection
2. Built-in illuminance detection
3. Built-in PM1.0, PM2.5, PM10 detection
4. Built-in CO2 detection
5. Built-in HCHO detection
6. Built-in TVOC detection
7. Built-in microwave distance detection, automatically turns on the screen when a human body is detected, and automatically turns off the screen when the human body leaves
8. Support custom level threshold for air quality
9. Support mixed calculation of internal and external inputs for testing projects
10. It has 5 logical block functions, each logical block can set 10 target outputs, and supports logical locking

Dimensions (L*W*H): 86mm*86mm*49.5mm

Provides DC power and communicates to M/PTL4.1
Dimension (mm):  86*86*30

KNX VRV/VRF Outdoor Gateway，supports up to 64 indoor units. It enables centralized connection of multiple air conditioners to a smart home control system or BMS system.
Supports RS485, KNX, or UART (with optional wireless module) and is compatible with major brands including
Daikin, Hitachi, Toshiba, Mitsubishi Electric, Hisense, Haier, Panasonic, York, Midea, LG, Gree, Samsung, Trane, Carrier, etc.

Dimensions(mm):  108*87*49.7

KNX Dual Output Power Supply Module, DIN-Rail Mount, 100-240V~ 50/60Hz,
Provides one KNX BUS output 30V DC 640mA and one 24V DC 640mA auxiliary output,
overload, short-circuit, over-voltage and over-temperature protection, manual reset function.

Dimensions: 72*90*64
