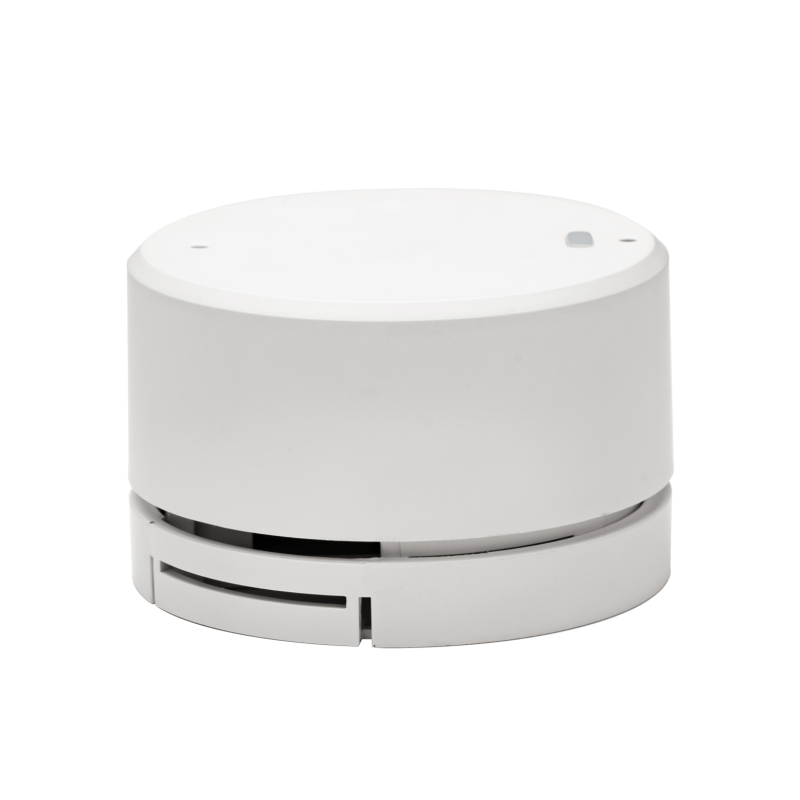

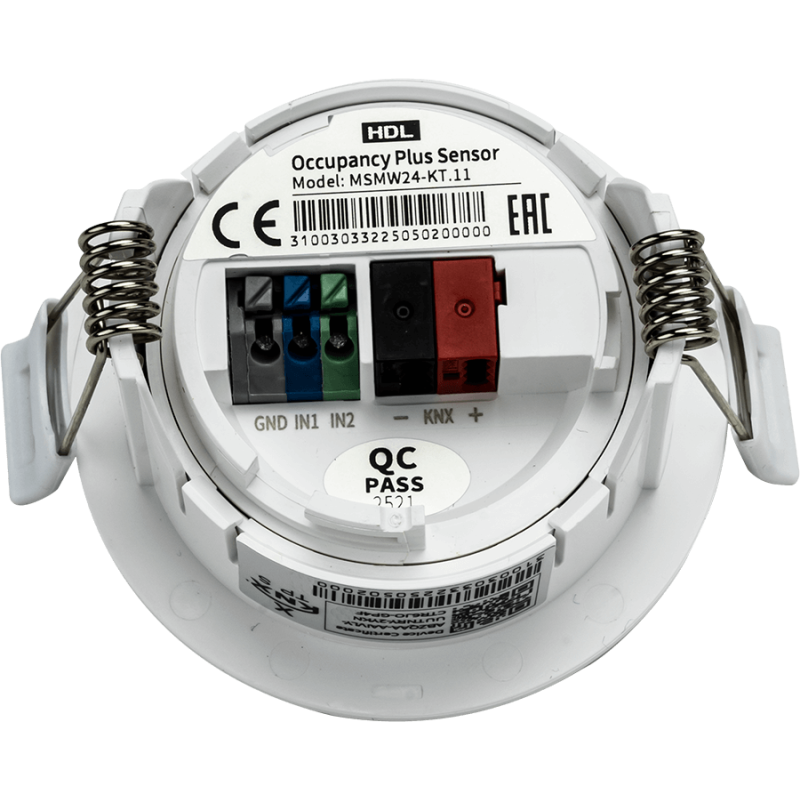

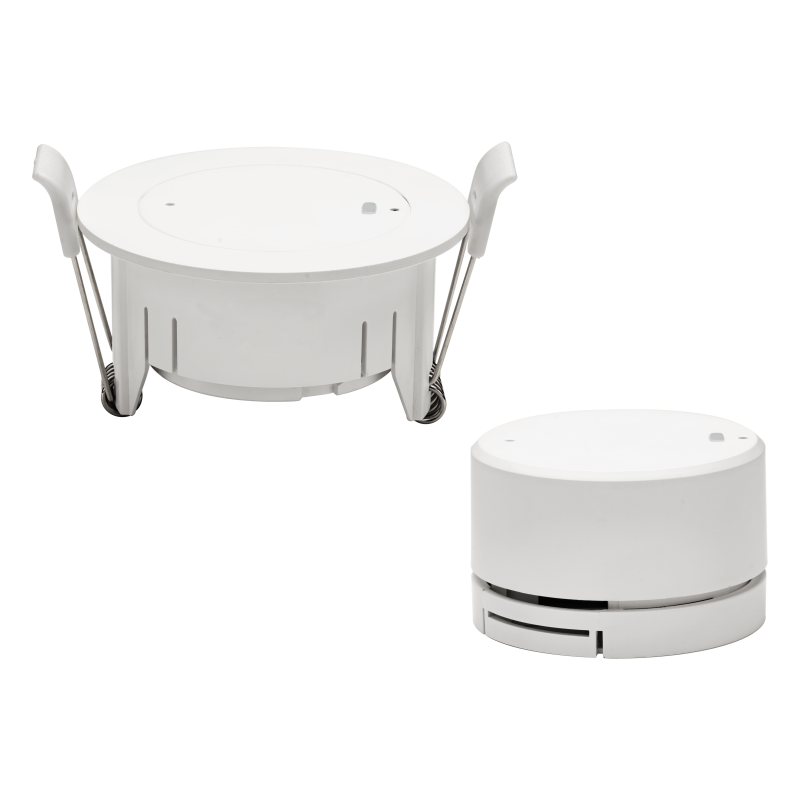

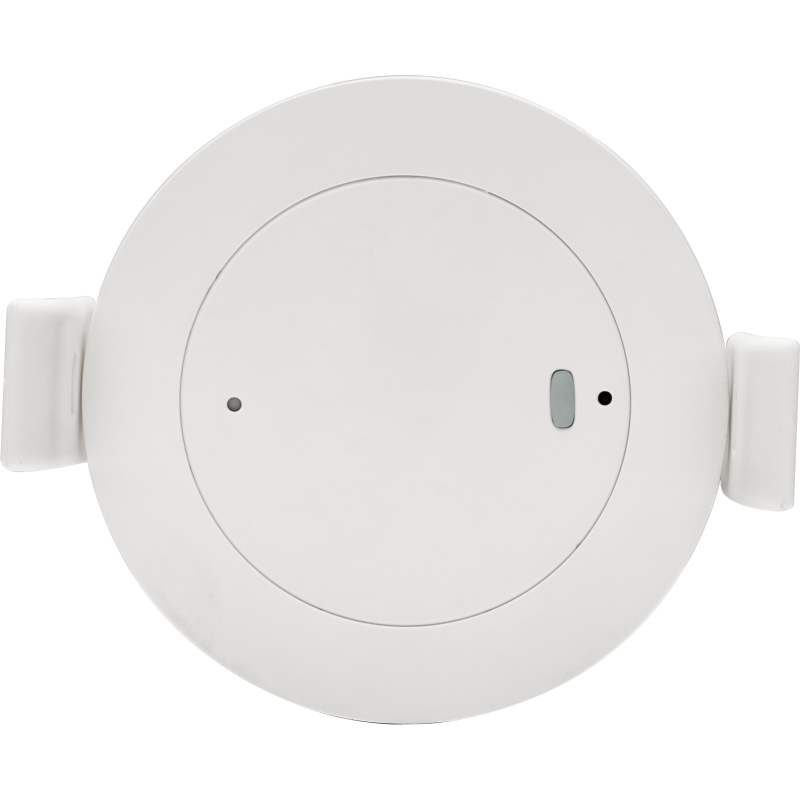

Occupancy Plus Sensor

Standard KNX Terminal, includes motion sensor, LUX sensor and external telegram detection, motion detection range H:3m D:9m.
Dimension (mm): 63*63*38

Standard KNX Terminal, includes motion sensor, Lux sensor, temperature sensor, dry contact and external telegrams, motion detection range H:2.5m D:8m.
Dimension (mm): 80*80*28

Includes Lux sensor, motion sensor and temperature sensor, support trigger alarms, adjust lighting and regulate HVAC systems effortlessly. motion detection range H:2.5m D:24m.
Dimension (mm): 84*84*42

Airkit2 Pro Air Quality Sensor.
Rated Voltage: 30V DC, Standard KNX Terminal, air quality detection and display, including temperature, humidity, illuminance, PM2.5, PM1.0, PM10 and CO₂.
Supports local screen display, remote real‑time monitoring and linkage with other devices to improve indoor air quality.
Support 86mm flush mounting box.

Main functions:

1. Built-in temperature and humidity detection

2. Built-in illuminance detection

3. Built-in PM1.0, PM2.5, PM10 detection

4. Built-in CO2 detection

5. Built-in microwave distance detection, automatically turns on the screen when a human body is detected, and automatically turns off the screen when the human body leaves

6. Support custom level threshold for air quality

7. Support mixed calculation of internal and external inputs for testing projects

8. It has 5 logical block functions, each logical block can set 10 target outputs, and supports logical locking

Dimensions: 86*86*49.5

Airkit2 Pro Air Quality Sensor can be used to detect and display indoor air quality, including air quality indicators such as
environmental temperature and humidity, Lux, PM2.5, PM1.0, PM10, CO2, TVOC and HCHO.

Main functions:

1. Built-in temperature and humidity detection
2. Built-in illuminance detection
3. Built-in PM1.0, PM2.5, PM10 detection
4. Built-in CO2 detection
5. Built-in HCHO detection
6. Built-in TVOC detection
7. Built-in microwave distance detection, automatically turns on the screen when a human body is detected, and automatically turns off the screen when the human body leaves
8. Support custom level threshold for air quality
9. Support mixed calculation of internal and external inputs for testing projects
10. It has 5 logical block functions, each logical block can set 10 target outputs, and supports logical locking

Dimensions (L*W*H): 86mm*86mm*49.5mm

Includes PIR sensor, temperature sensor and brightness sensor. 4 independent logical blocks and 1 combined block are available, and each block contains 10 object outputs.
Logical relations AND, OR can be set and single mode and master / slave mode are supported. motion detection range H:3m D:12m.
Dimension (mm): Φ85*85

Includes LUX sensor, microwave sensor,humidity sensor,temperature sensor, dry contact, external telegram, Microwave detection range: Φ30m (Installation height:3m)
Dimension (mm): 126*78*114

Airkit2 Pro Air Quality Sensor.
Rated Voltage: 30V DC, Standard KNX Terminal, air quality detection and display, including temperature, humidity, illuminance, PM2.5, PM1.0, PM10.
Supports local screen display, remote real‑time monitoring and linkage with other devices to improve indoor air quality.

Main functions:

1. Built-in temperature and humidity detection
2. Built-in illuminance detection
3. Built-in PM1.0, PM2.5, PM10 detection
4. Built-in microwave distance detection, automatically turns on the screen when a human body is detected, and automatically turns off the screen when the human body leaves
5. Support custom level threshold for air quality
6. Support mixed calculation of internal and external inputs for testing projects
7. It has 5 logical block functions, each logical block can set 10 target outputs, and supports logical locking

Support 86mm flush mounting box.

Dimensions: 86*86*49.5

Includes 4 independent logic blocks and 1 combined logic block, the logic relation can be “AND” “OR” , logic input conditions can be the condition of LUX sensor, microwave sensor, temperature sensor, dry contact and external telegram, Microwave detection range: H:3m D:10m
Dimension (mm): 84*84*32

Includes 4 independent logic blocks and 1 combined logic block, the logic relation can be “AND” “OR” , logic input conditions can be the condition of LUX sensor, microwave sensor, temperature sensor, dry contact and external telegram, Microwave detection range: H:3m D:10m
Dimension (mm): 84*84*32

Panel Power Interface EU, with base Frame
Rated voltage：30V DC, Rated power : 50mA, Output power: 0.2A/5v DC
Provides DC power and communicates to HDL Wall panel, Tile Series Panel 2.1

Dimensions: 81.4*81.4*25.6

Airkit2 Pro Air Quality Sensor can be used to detect and display indoor air quality, including air quality indicators such as
environmental temperature and humidity, Lux, PM2.5, PM1.0, PM10, CO2, TVOC and HCHO.

Main functions:

1. Built-in temperature and humidity detection
2. Built-in illuminance detection
3. Built-in PM1.0, PM2.5, PM10 detection
4. Built-in CO2 detection
5. Built-in HCHO detection
6. Built-in TVOC detection
7. Built-in microwave distance detection, automatically turns on the screen when a human body is detected, and automatically turns off the screen when the human body leaves
8. Support custom level threshold for air quality
9. Support mixed calculation of internal and external inputs for testing projects
10. It has 5 logical block functions, each logical block can set 10 target outputs, and supports logical locking

Dimensions (L*W*H): 86mm*86mm*49.5mm

DIN-Rail Mount, both110/240 VAC, 50-60Hz, supports communication between the HDL KNX BUS and the DALI BUS system. capable of managing 64 DALI ballasts, support switch, dimming, color temperature adjustment, RGB/RGBW/xy coordinate color control ,DALI2 Compitable.
Dimension (mm):  72*90*64

Input volatage:21-30V DC and Auxiliary power DC24V, to provide power supply, RJ45 ethernet connection to Source 7/10/Mini built-in KNX interface and 2ch 5A relay output
Support 86*86 mm Size backbox installation

Dimension (mm):  76*76*29.2

to work with HDL-M/IRAC.1 Infrared Emitter.

KNX VRV/VRF Outdoor Gateway，supports up to 64 indoor units. It enables centralized connection of multiple air conditioners to a smart home control system or BMS system.
Supports RS485, KNX, or UART (with optional wireless module) and is compatible with major brands including
Daikin, Hitachi, Toshiba, Mitsubishi Electric, Hisense, Haier, Panasonic, York, Midea, LG, Gree, Samsung, Trane, Carrier, etc.

Dimensions(mm):  108*87*49.7

KNX Dual Output Power Supply Module, DIN-Rail Mount, 100-240V~ 50/60Hz,
Provides one KNX BUS output 30V DC 640mA and one 24V DC 640mA auxiliary output,
overload, short-circuit, over-voltage and over-temperature protection, manual reset function.

Dimensions: 72*90*64
