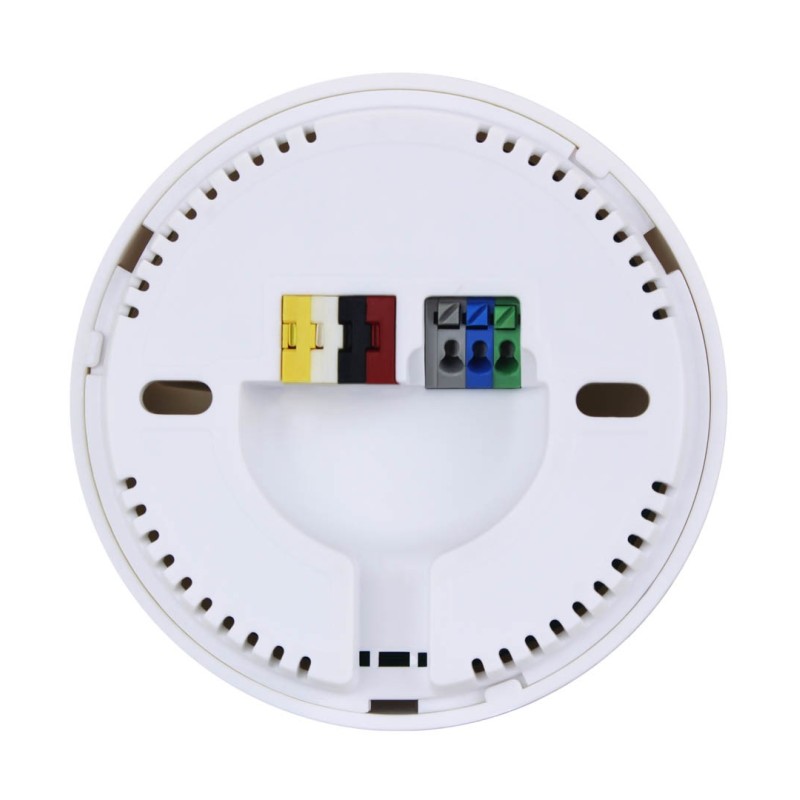

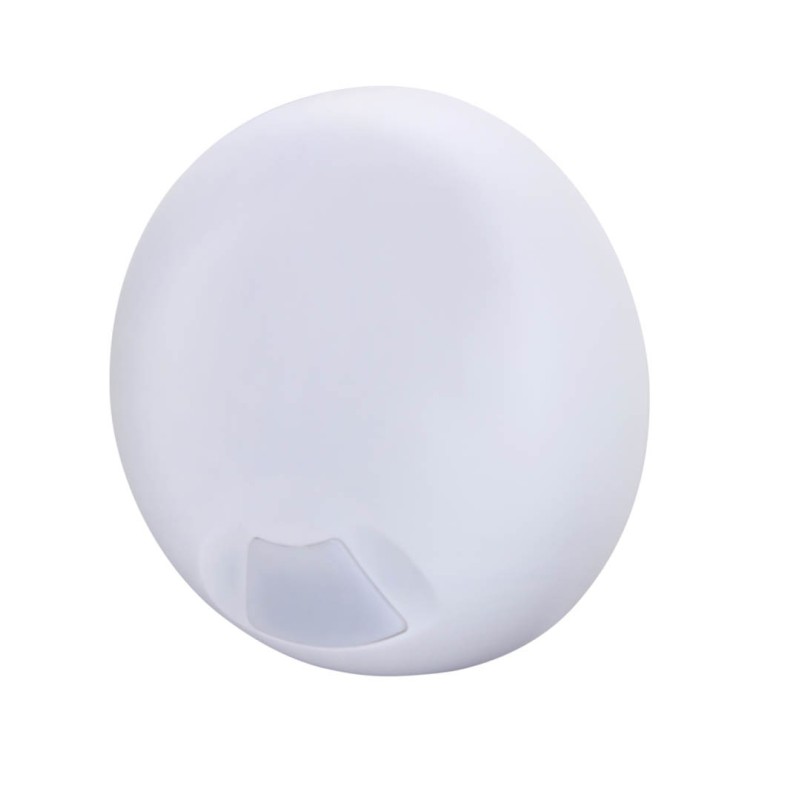

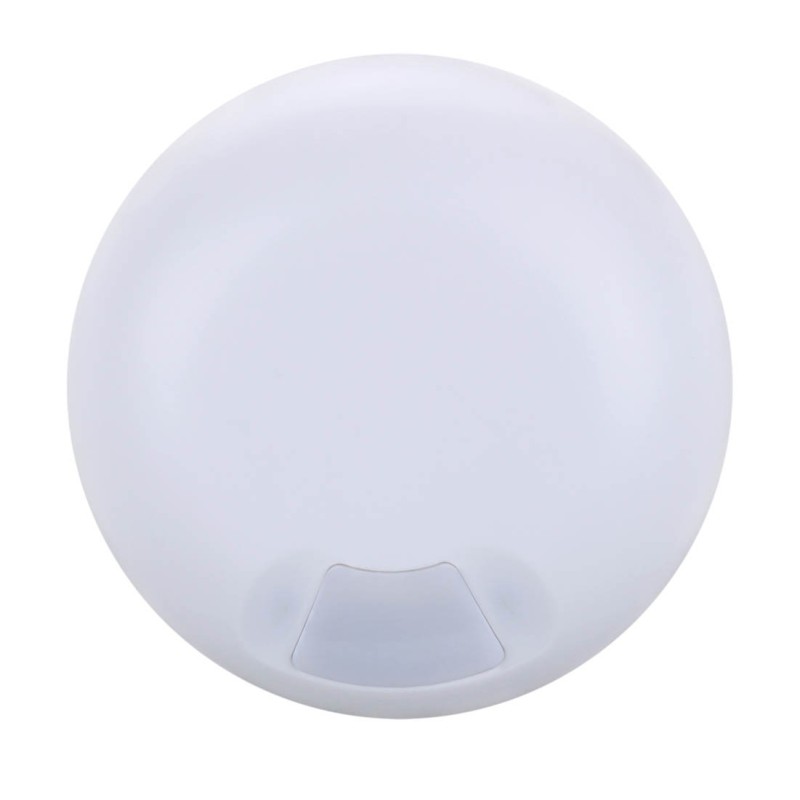

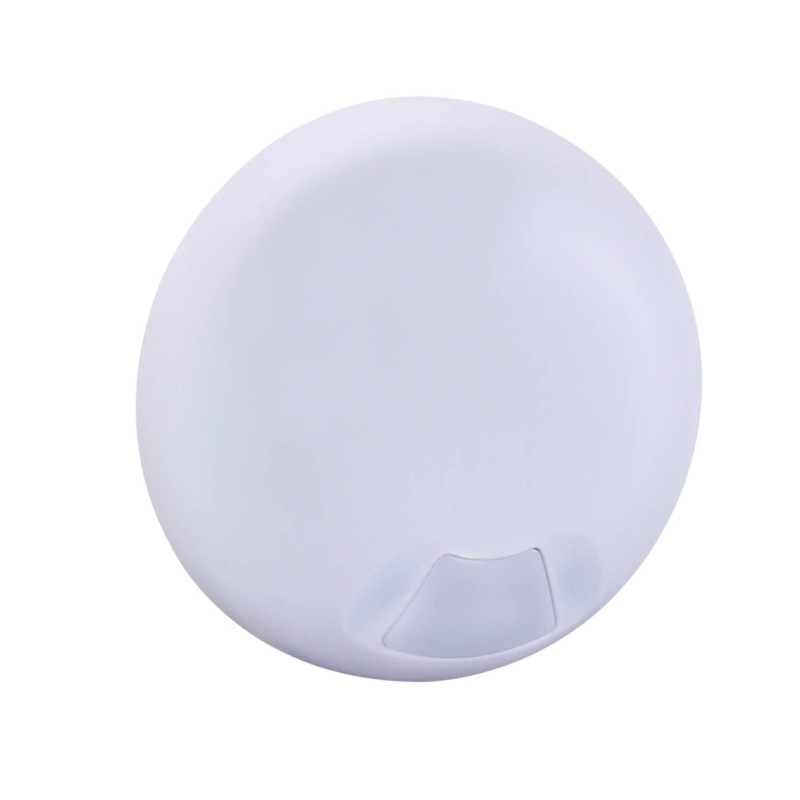

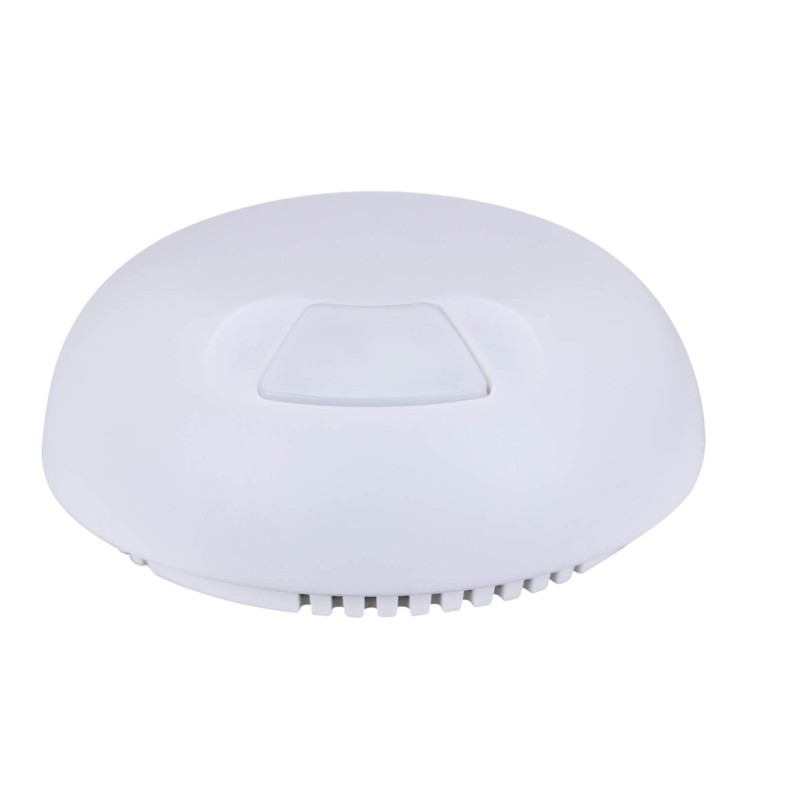

Surface Mount Indoor Microwave Sensor

Standard KNX Terminal, includes motion sensor, Lux sensor, temperature sensor, dry contact and external telegrams, motion detection range H:2.5m D:8m.
Dimension (mm): 80*80*28

Includes Lux sensor, motion sensor and temperature sensor, support trigger alarms, adjust lighting and regulate HVAC systems effortlessly. motion detection range H:2.5m D:24m.
Dimension (mm): 84*84*42

Includes LUX sensor, microwave sensor,humidity sensor,temperature sensor, dry contact, external telegram, Microwave detection range: Φ30m (Installation height:3m)
Dimension (mm): 126*78*114

Occupancy Plus Sensor，Input voltage12 - 30V DC, support surface mount & surface mount，built in 24GHz millimeter wave
radar technology，includes LUX sensor, Temprature sensor , 2 ch Dry contact input, 1HVAC control，1 Constant brightness
control, logic block. supports Master & slave mode. Maximum detection range: diameter 8m，Support KNX Secure
Dimensions (mm): Φ66 x 34.6, Φ48.5 x 27.5

Includes PIR sensor, temperature sensor and brightness sensor. 4 independent logical blocks and 1 combined block are available, and each block contains 10 object outputs.
Logical relations AND, OR can be set and single mode and master / slave mode are supported. motion detection range H:3m D:12m.
Dimension (mm): Φ85*85

Airkit2 Pro Air Quality Sensor can be used to detect and display indoor air quality, including air quality indicators such as
environmental temperature and humidity, Lux, PM2.5, PM1.0, PM10, CO2, TVOC and HCHO.

Main functions:

1. Built-in temperature and humidity detection
2. Built-in illuminance detection
3. Built-in PM1.0, PM2.5, PM10 detection
4. Built-in CO2 detection
5. Built-in HCHO detection
6. Built-in TVOC detection
7. Built-in microwave distance detection, automatically turns on the screen when a human body is detected, and automatically turns off the screen when the human body leaves
8. Support custom level threshold for air quality
9. Support mixed calculation of internal and external inputs for testing projects
10. It has 5 logical block functions, each logical block can set 10 target outputs, and supports logical locking

Dimensions (L*W*H): 86mm*86mm*49.5mm

Standard KNX Terminal, includes motion sensor, LUX sensor and external telegram detection, motion detection range H:3m D:9m.
Dimension (mm): 63*63*38

Tile Series 1 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 86*86*10.5

With 3.5-inch 480*480 LCD Touch screen, Built-in temperature, humidity and proximity sensor, used to control lighting,
curtain, scene, AC/FCU, floor heating, music and fresh air.
Frame is NOT included.
Dimenstions (mm): 76*76*11
Powered by M/PTCI2P.1

Tile Series 3 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 258*86*10.5

Panel power interface with auxiliary power interface EU， Rated voltage:30V , Retaed current: 10mA/30v,output power:1A/5v,

Auxiliary power supply:400ma/24v,provides DC power and communicates to Tile Series Thermostat 2.1 MPHT-6B-KT.18

Dimensions (mm): 51.2*51.2*23.1

Tile Series 4 button smart panel 2.1，used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1P-KT.18

Dimensions (mm): 86*86*10.5

Tile Series EU Socket 2.1, Rated voltage: 250V AC~ 16A,four colors(ivory white, ash gray, Champagne Gold and space gray) are
available for plastic plate,mount with plastic and metal frame,
Frame is NOT included.

Dimensions (mm): 86×86×39.1

Tile Series Thermostat 2.1, used to control air conditioning, floor heating and fresh air system, metal(Champagne Gold/space gray color),
Built-in temperature sensor, humidity sensor and proximity sensor, with LED backlight.
Frame is NOT included,
Powered by MPFPIT-2P-KT.18

Dimensions (mm): 86*86*10.5

Tile Series USB and Type-C Outlet 2.1, Rated voltage: 250V AC~, AC 100-240V~,50/60Hz , Maximum current 0.3A, Output Power 20W,
Type-C output : 5V / 3A, 9V / 2.22A, 12V / 1.67A .four colors(ivory white, ash gray, Champagne Gold and space gray) are
available for plastic plate,mount with plastic and metal frame
Frame is NOT included.

Dimensions (mm): 86*86*37.2
