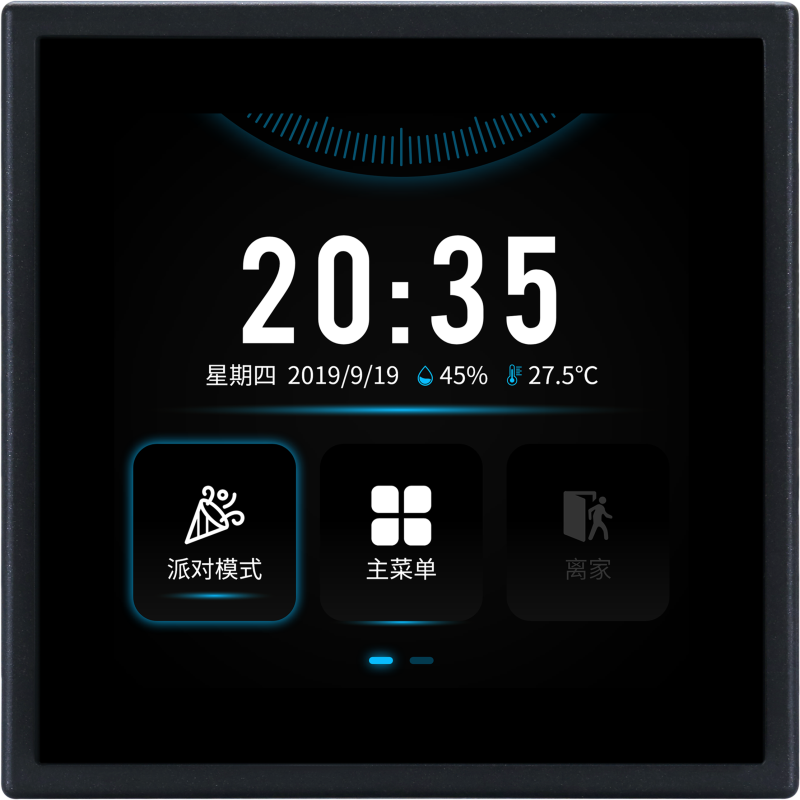

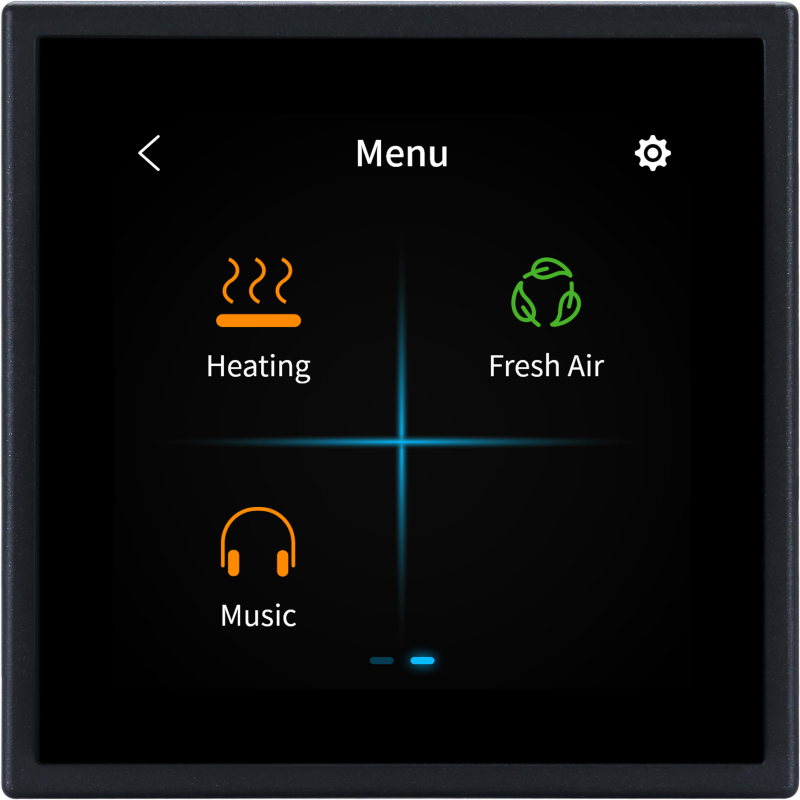

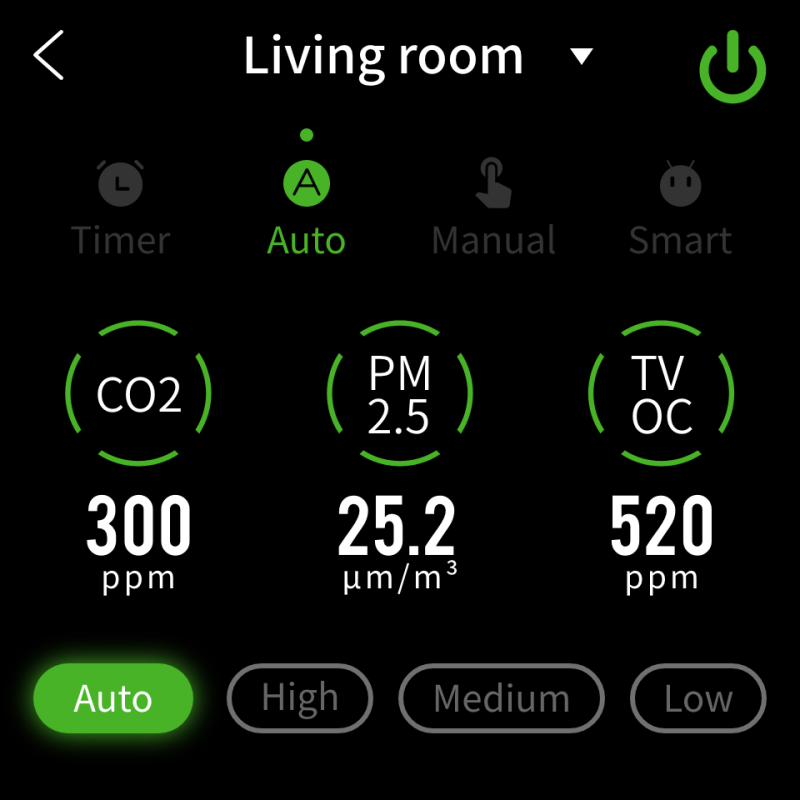

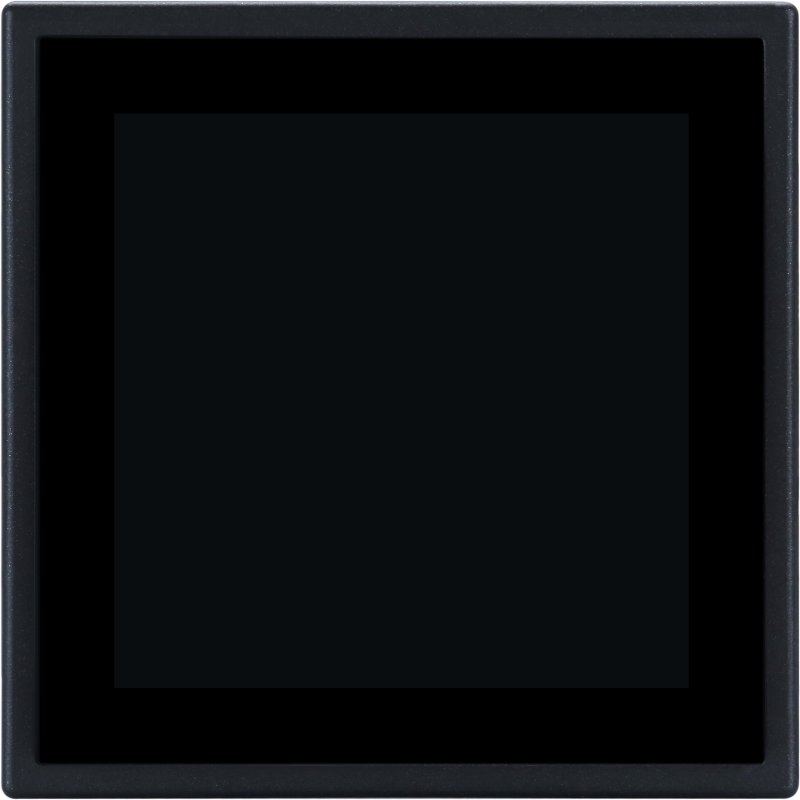

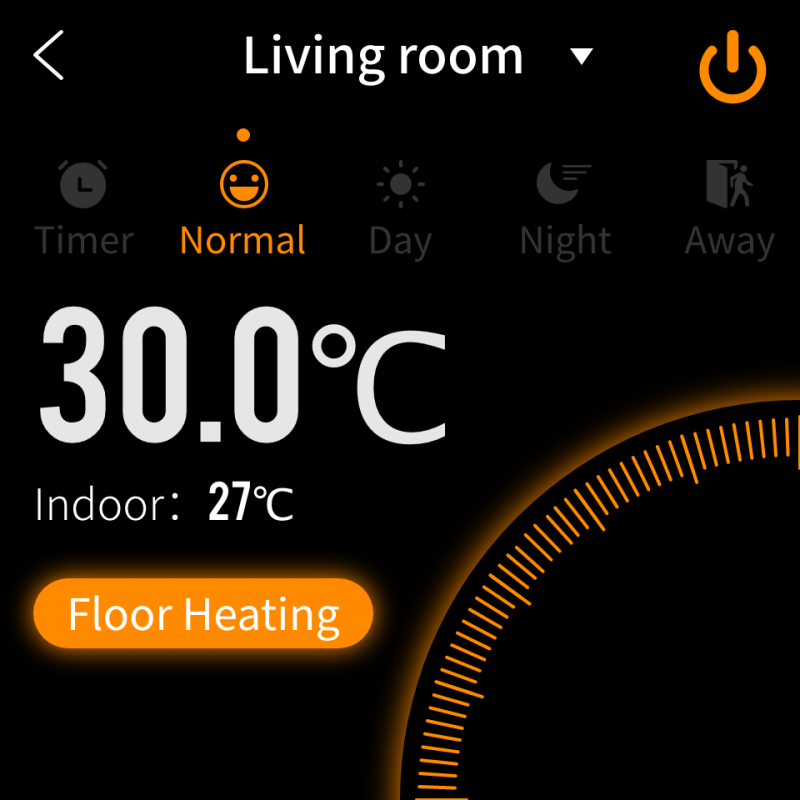

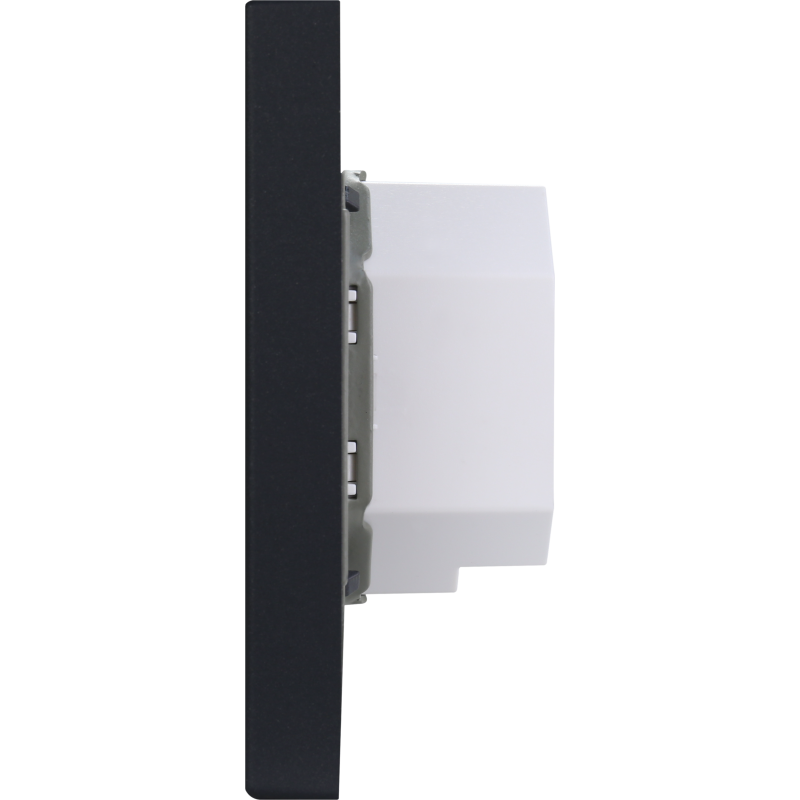

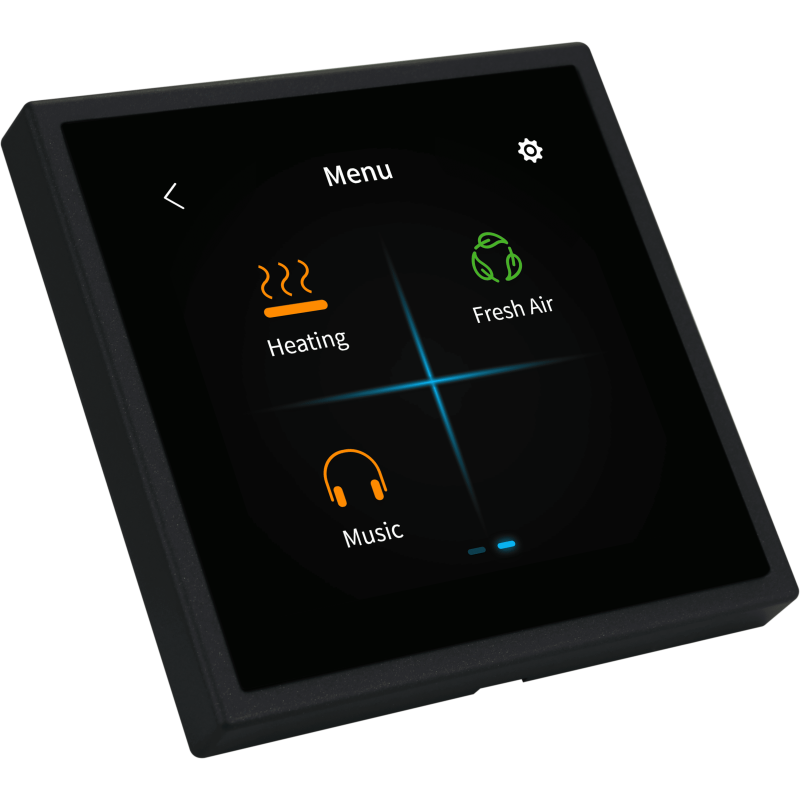

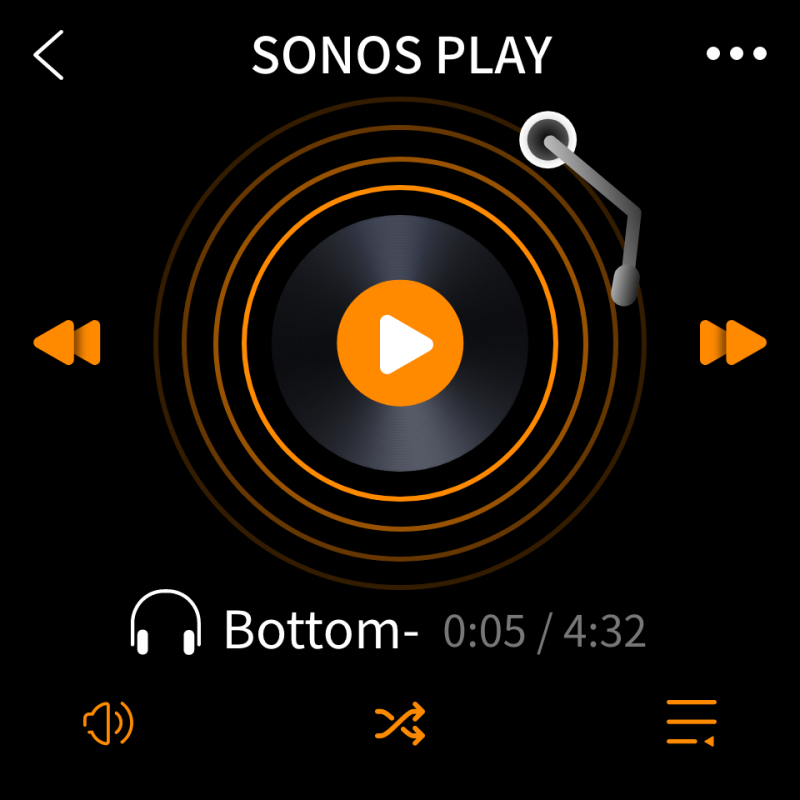

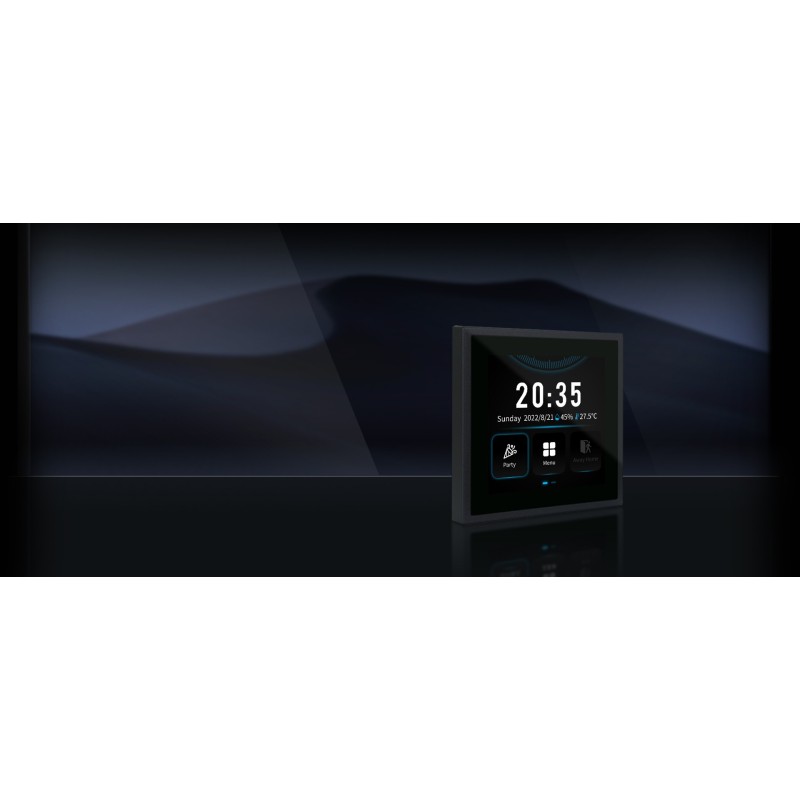

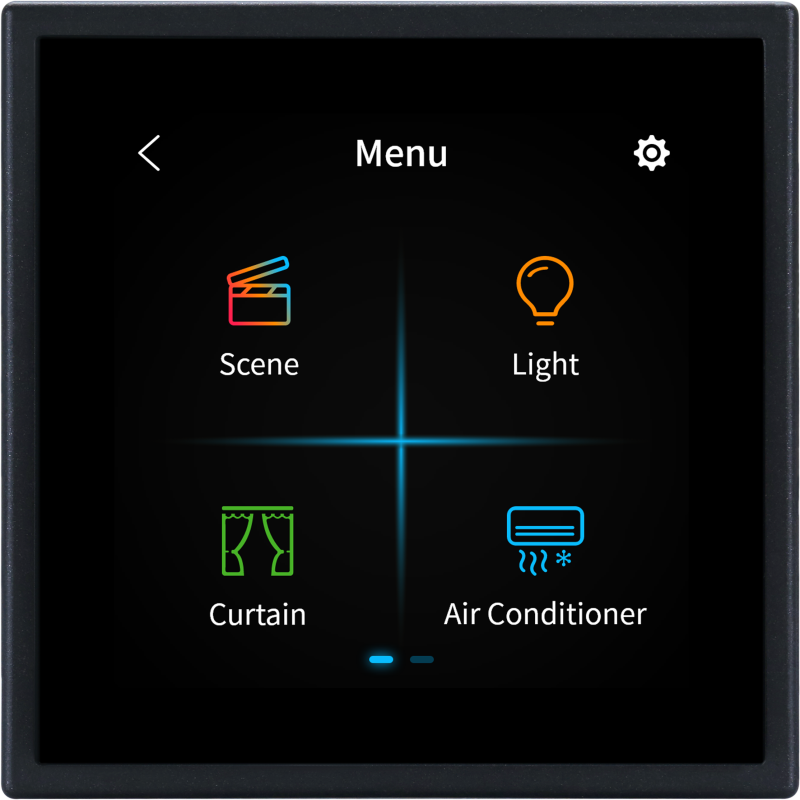

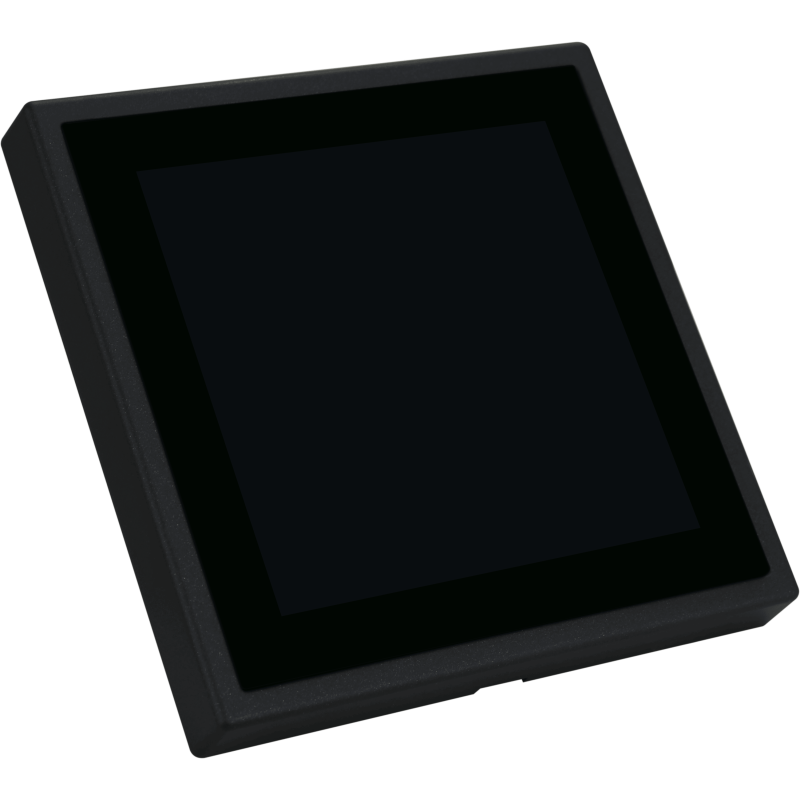

Tile Display

Xelent Series 8 Buttons Smart Panel, used to control lighting, curtain and scene,
Built-in temperature sensor and proximity sensor, RGB LED indicator function, customizable icon,
Brushed Aluminum: Black, Antique Bronze, Brass

Frame is NOT included.
Dimensions (mm): 81×81×9
Powered by MPFPIT-1P-KT.18

with Aluminum Frame, used to control lighting,curtain and scene, LED backlight and LED indicator. Powered by M/PCI.1-A
Dimension (mm):  86*86*10

The Granite Display is a multifunctional 4-inch high-resolution touch control panel. You can quickly access your most-used functions or scenes via shortcut buttons on the home screen, and customize these shortcuts as desired. As you explore more of the user interface, you’ll find it intuitive and comfortable for controlling your home devices.

With a 4-inch LCD and aluminum panel, it is used to control lighting, curtains, scenes, air conditioning, floor heating, music, and fresh air systems.
Built-in temperature sensor, humidity sensor, and proximity sensor.
Color options: Space Gray frame / black glass.
Powered by M/PCI2PE.1

Dimensions (mm): 86 × 86 × 11

Tile Series 8 button smart panel 2.1，used to control lighting,curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon,
Frame is NOT included,
Powered by MPFPIT-1PF-KT.18

Dimenstions (mm): 86*86*10.5

Tile Series 1 button smart panel 2.1, used to control lighting,curtain and scene, plastic(ivory white/ash gray/champagne
gold/space gray). Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon.
Frame is NOT included,

Powered by MPFPIT-1PF-KT.18
Dimensions (mm): 86*86*10.5

Tile Series 2 button smart panel 2.1, used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space
gray), Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon, Frame is NOT included,
Powered by MPFPIT-1PF-KT.18

Dimensions (mm): 86*86*10.5

Xelent Series 6 Buttons Smart Panel, used to control lighting, curtain and scene,
Built-in temperature sensor and proximity sensor, RGB LED indicator function, customizable icon,
Brushed Aluminum: Black, Antique Bronze, Brass

Frame is NOT included.
Dimensions (mm): 81×81×9
Powered by MPFPIT-1P-KT.18

Tile Series 3 button smart panel 2.1, used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon,
Frame is NOT included
Poweredby MPFPIT-1PF-KT.18

Dimenstions (mm): 86*86*10.5

Tile Series Thermostat 2.1, used to control air conditioning, floor heating and fresh air system, metal(Champagne Gold/space gray color),
Built-in temperature sensor, humidity sensor and proximity sensor, with LED backlight.
Frame is NOT included,
Powered by MPFPIT-2P-KT.18

Dimensions (mm): 86*86*10.5

Tile Series 3 button smart panel 2.1, used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon,
Frame is NOT included
Poweredby MPFPIT-1PF-KT.18

Dimenstions (mm): 86*86*10.5

The Granite Display is a multifunctional touch control panel with a 4.3-inch high-resolution 800×480 LCD. You can quickly access your most-used functions or scenes via shortcut buttons on the home screen and customize these shortcuts as desired. Exploring the user interface, you’ll find it intuitive and comfortable for controlling your home devices.

With an aluminum panel, it is used to control lighting, curtains, scenes, air conditioning, floor heating, music, and fresh air systems.
Built-in temperature sensor, humidity sensor, and proximity sensor.
Color options: Space Gray frame / black glass.
Powered by M/PCI2PU.2, supports both vertical and horizontal user interface (UI).

Dimensions (mm): 86 × 116 × 11

Xelent Series 6 Buttons Smart Panel, used to control lighting, curtain and scene,
Built-in temperature sensor and proximity sensor, RGB LED indicator function, customizable icon,
Brushed Aluminum: Black, Antique Bronze, Brass

Frame is NOT included.
Dimensions (mm): 81×81×9
Powered by MPFPIT-1P-KT.18

Xelent Series 6 Buttons Smart Panel, used to control lighting, curtain and scene,
Built-in temperature sensor and proximity sensor, RGB LED indicator function, customizable icon,
Plastic: Ivory white/Charcoal Gray

Frame is NOT included.
Dimensions (mm): 81×81×9
Powered by MPFPIT-1P-KT.18

Tile Series 8 button smart panel 2.1，used to control lighting,curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon,
Frame is NOT included,
Powered by MPFPIT-1PF-KT.18

Dimenstions (mm): 86*86*10.5

Xelent Series Thermostat Panel, used to control air conditioning, floor heating and fresh air system，
Built-in temperature sensor, humidity sensor and Human proximity sensor, adjustable sensing range 10-100cm, with LED backlight, with button lock/unlock function,
Plastic：Ivory white/Charcoal Gray

Frame is NOT included.
Dimensions (mm): 81×81×9
Powered by MPFPIT-2P-KT.18

Tile Series 4 button smart panel 2.1，used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1PF-KT.18

Dimensions (mm): 86*86*10.5

Tile Series 1 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 86*86*10.5

Panel Power Interface EU，Rated voltage：30V DC, Rated power : 50mA , output power: 0.2A/5v DC ，provides DC power and

communicates to HDL KNX Wall panel, Support KNX Xelent Series Panel

Dimensions (mm): 51.2*51.2*23.1

Provides DC power and communicates to Tile Series Thermostat 2.0, Tile Display
Dimension (mm):  81.4*81.4*27

Panel power interface with auxiliary power interface EU， Rated voltage:30V , Retaed current: 10mA/30v,output power:1A/5v,

Auxiliary power supply:400ma/24v,provides DC power and communicates to Tile Series Thermostat 2.1 MPHT-6B-KT.18

Dimensions (mm): 51.2*51.2*23.1

Tile Series 1 Button Momentary Switch 2.1, Rated voltage: 250V AC~ 10A,four colors (ivory white, ash gray, Champagne Gold and space gray) are available for plastic plate,mount with plastic and metal frame,
Frame is NOT included.

Dimensions (mm): 86*86*35.4

Tile Series Thermostat 2.1, used to control air conditioning, floor heating and fresh air system, metal(Champagne Gold/space gray color),
Built-in temperature sensor, humidity sensor and proximity sensor, with LED backlight.
Frame is NOT included,
Powered by MPFPIT-2P-KT.18

Dimensions (mm): 86*86*10.5

Tile Series USB and Type-C Outlet 2.1, Rated voltage: 250V AC~, AC 100-240V~,50/60Hz , Maximum current 0.3A, Output Power 20W,
Type-C output : 5V / 3A, 9V / 2.22A, 12V / 1.67A .four colors(ivory white, ash gray, Champagne Gold and space gray) are
available for plastic plate,mount with plastic and metal frame
Frame is NOT included.

Dimensions (mm): 86*86*37.2

Tile Series 4 button smart panel 2.1，used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1PF-KT.18

Dimensions (mm): 86*86*10.5
