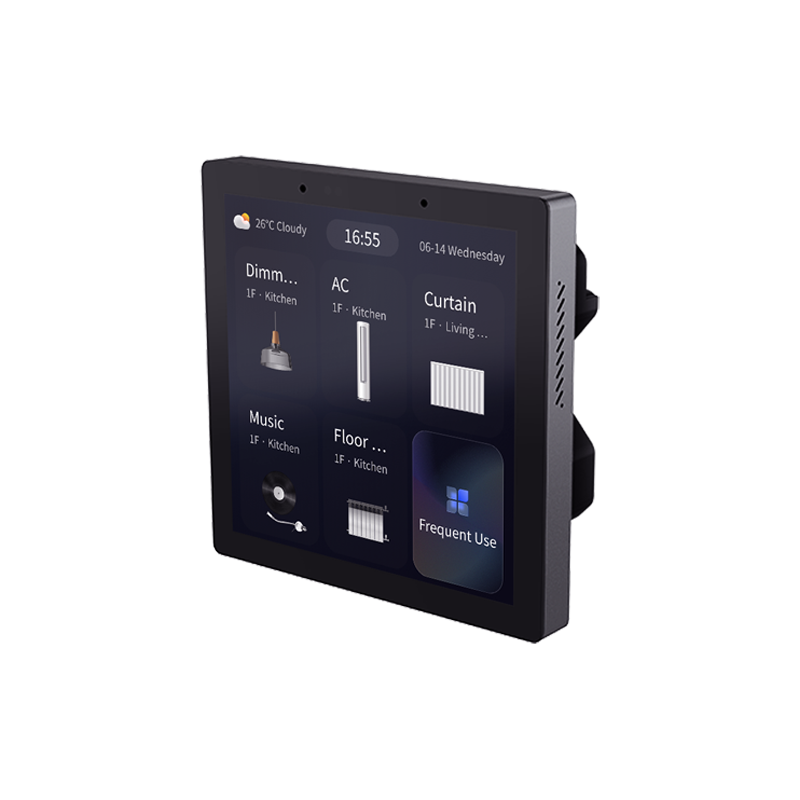

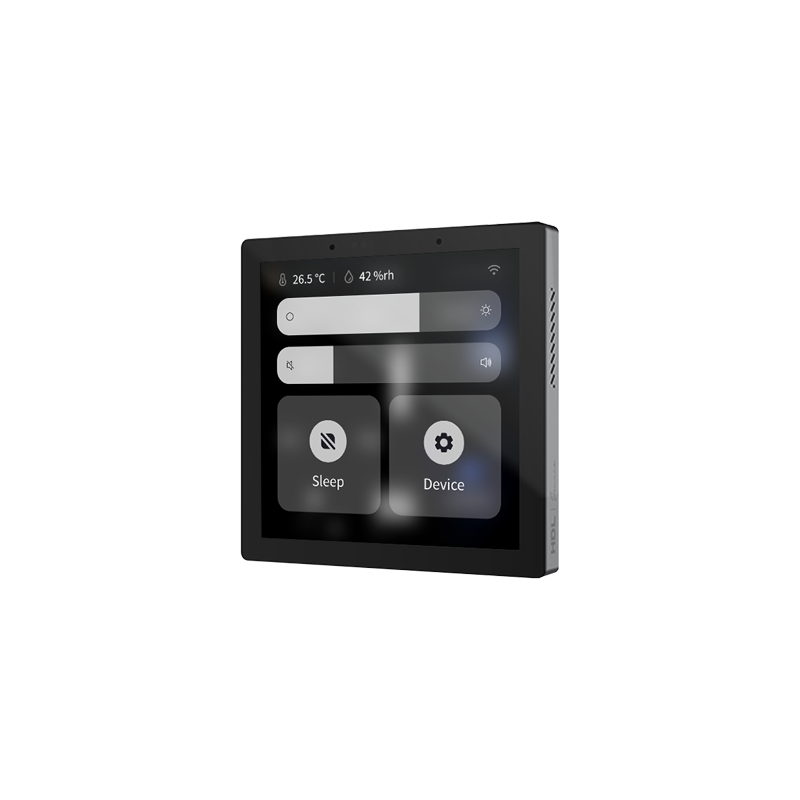

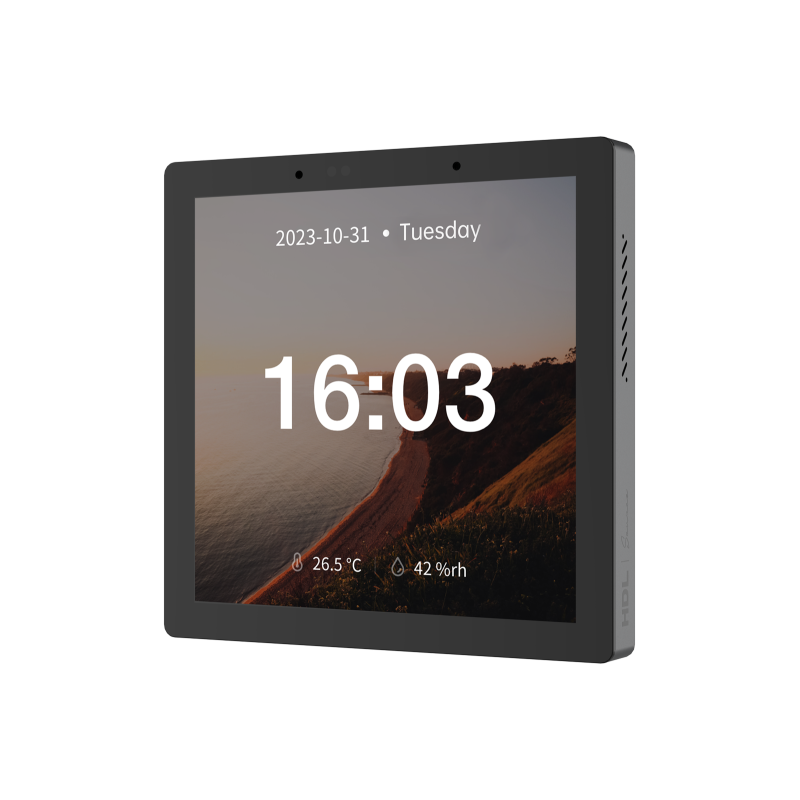

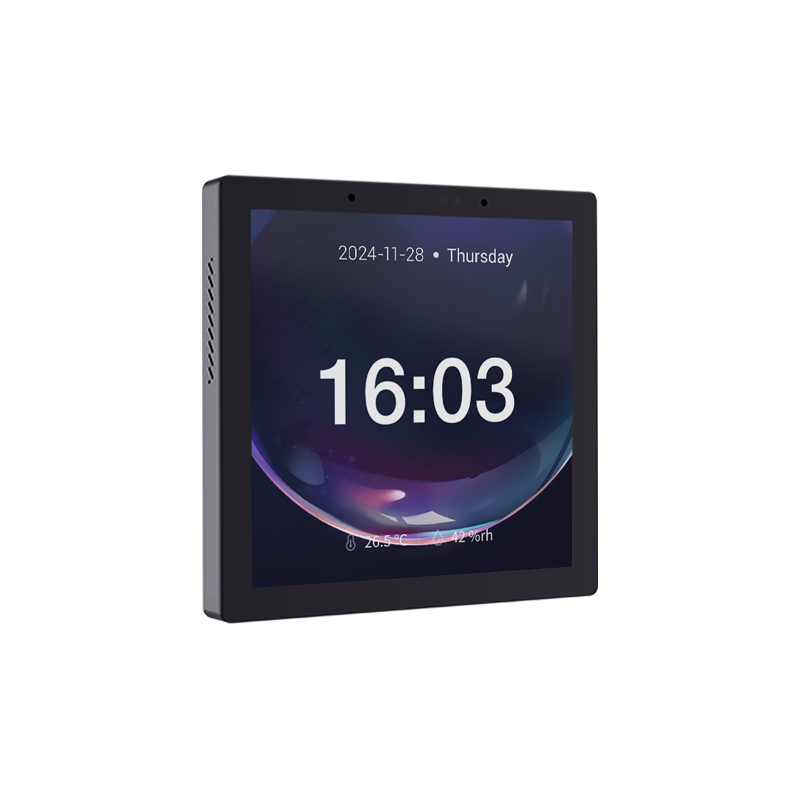

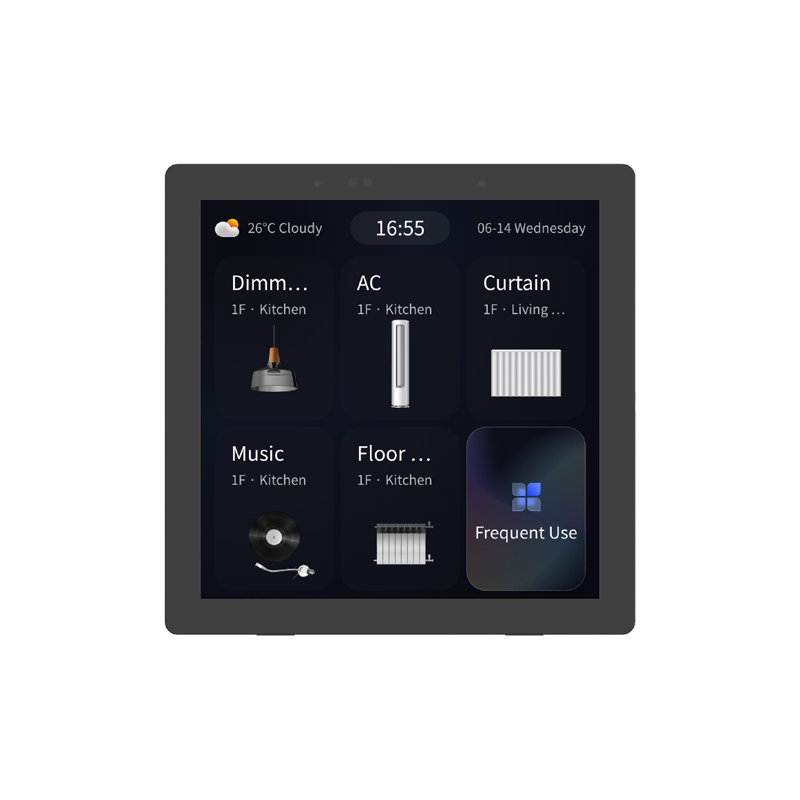

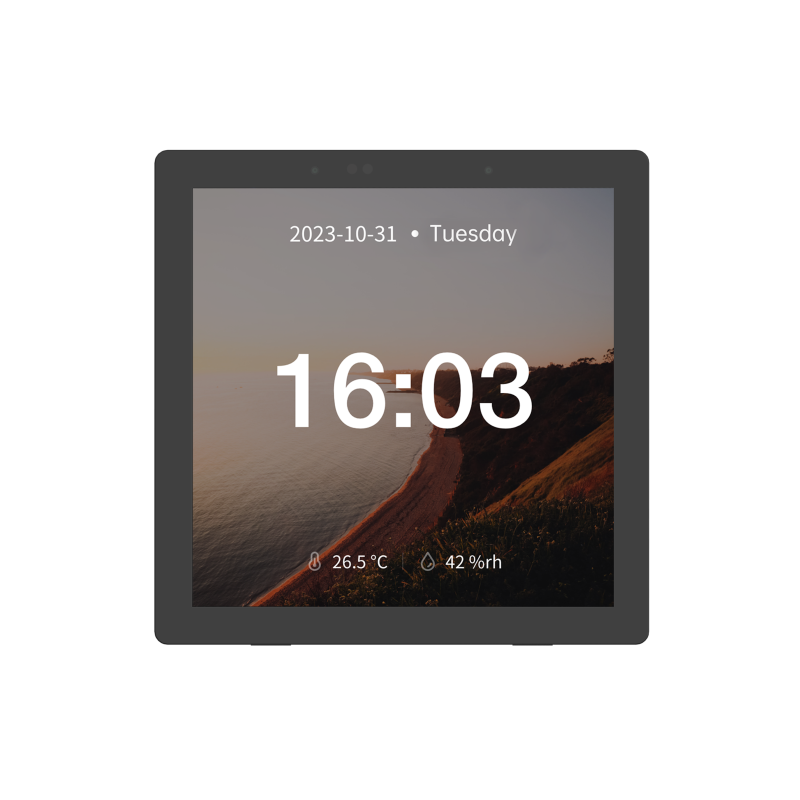

Source Mini Panel EU
with 4-inch LCD screen，used to control lighting, curtain,air conditioning, security, floor heating, music etc, 480x480 Resolution,
Built-in speaker and Microphone
Built-in temperature and humidity sensors, Built-in human proximity sensor and light sensor, Ethernet access via Wifi or RJ45, IP20,Color Option: plastic Space Gray Frame/black glass.
Powered by specialized power interface to support Buspro, KNX, Zigbee protoco.
Dimension (mm): 86*86*11
Source Mini
Source Mini is a 4-inch smart control panel, crafted with a high-resolution 480x480 touchscreen. With frameless design, it integrates into any interior setting.
Manage all your smart devices from a single, intuitive interface. With the Source Mini, you can control lighting, curtains, HVAC system, music, scenes, and even household appliances—right at your fingertips.
Built for ease, the Source Mini lets you pin favorite functions to the homepage for quick access and organize them to match your preferences, making everyday interactions faster and more intuitive.
Keep in touch with family members across rooms with the built-in devices. The Source Mini allows voice calls between Source Series panel, perfect for quick conversations between different rooms or floors.
Effortlessly switch between areas in your home with organized, precise control. Tailor each area to manage only the devices and scenes that matter most, ensuring seamless control over multiple spaces.
With HDL LINK Platform, Source Mini enhances the flexibility and functionality of the smart building. Users can create hybrid solutions that surpass the limitations of traditional systems.
With built-in Zigbee protocol, Source Mini serves as a Zigbee gateway. If you require additional protocols, you can easily select the corresponding power interface to support either Buspro or KNX, enabling the hybrid network of wired and wireless control. This flexibility removes the need for a separate gateway, streamlining setup and reducing costs.
- 4-inch color IPS capacitive touch screen, anti-fingerprint screen, resolution 480x480
- Built-in temperature, humidity sensor, PIR sensor and LUX sensor
- Enabling indoor communication between different rooms
- Capable of working as a gateway, supporting Buspro, KNX and Zigbee
| Model | Image | Description |
|---|---|---|
| DS-KD8003-IME1(B)/Flush |
-Flush.jpg)
|
IP version: Main unit, with its flush mounting accessories. IP65 (DS-KD8003-IME1(B)+DS-KD-ACF1/Plastic) |
| DS-KD8003-IME1(B)/Surface |
-Surface.jpg)
|
IP version: Main unit, with its surface mounting accessories. IP65 (DS-KD8003-IME1(B)+DS-KD-ACW1) |
| DS-KD8003-IME1(B) |
.jpg)
|
IP version: Main unit, needs mounting bracket. CMOS 2MP HD Colorful Camera, Fish eye, 1 Call Button, 1-ch indoor station access, 2 relays for door lock control. |
| DS-KD8003-IME1(B)/S |
-S.jpg)
|
IP version: Main unit, stainless steel, needs mounting bracket. CMOS 2MP HD Colorful Camera, Fish eye, 1 Call Button, 1-ch indoor station access, 2 relays for door lock control. |
| DS-KD8003-IME1(B)/NS |
-NS.jpg)
|
IP version: Main unit, stainless steel, needs mounting bracket. CMOS 2MP HD Colorful Camera, Fish eye, no Call Button, 1-ch indoor station access, 2 relays for door lock control. |
| DS-KS602(B) |
.jpg)
|
IP video intercom bundle for villa or house. One call button for easier calls. Stores messages and captured pictures in TF card. Convenient Hik-Connect APP Mobile Control. |
| DS-KIS702Y |
|
2-wire digital IP video intercom bundle for villa or house. One call button for easier calls. Includes: DS-KD8003-IME2/Surface x 1, DS-KH6320-WTE2 x 1, DS-KAD704Y x 1, DS-KAW30-2N x 1, 16GB TF card x 1. |
Specifications
- Bus Power
- ＜5W
- Protocol
- KNX
- MPN
- 308021205
