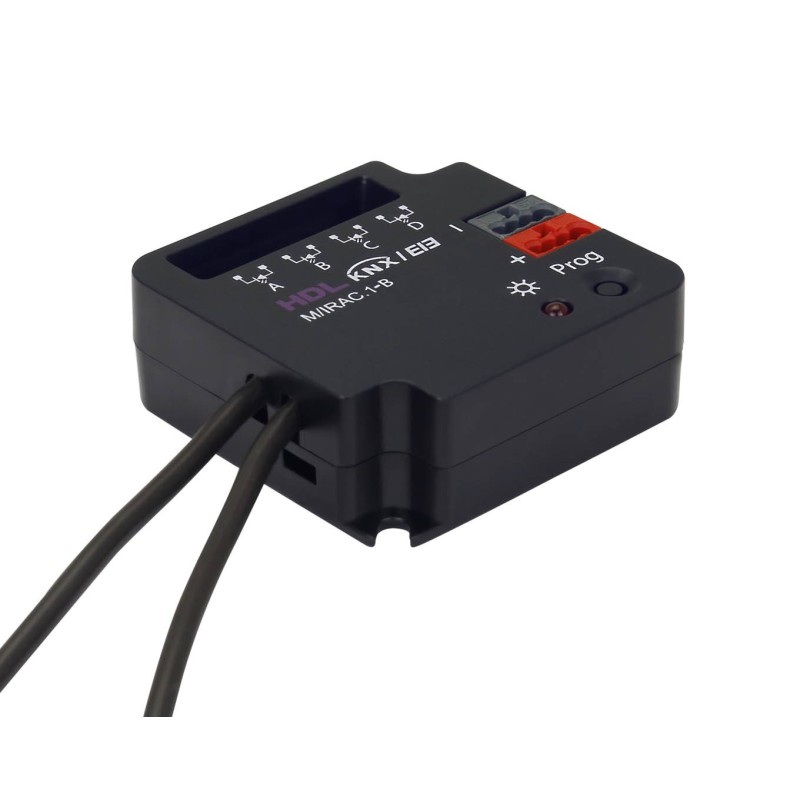

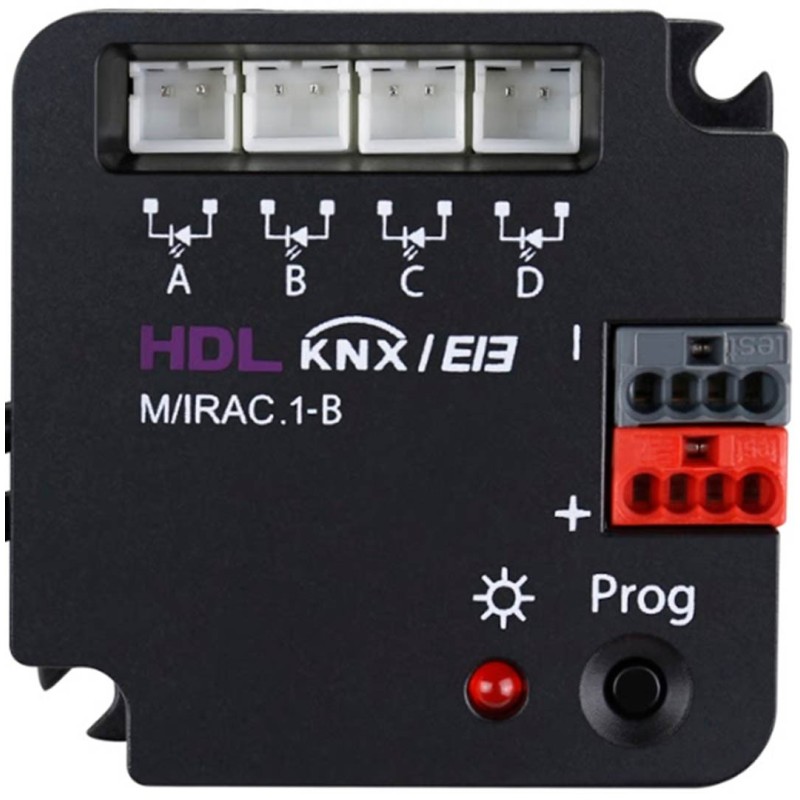

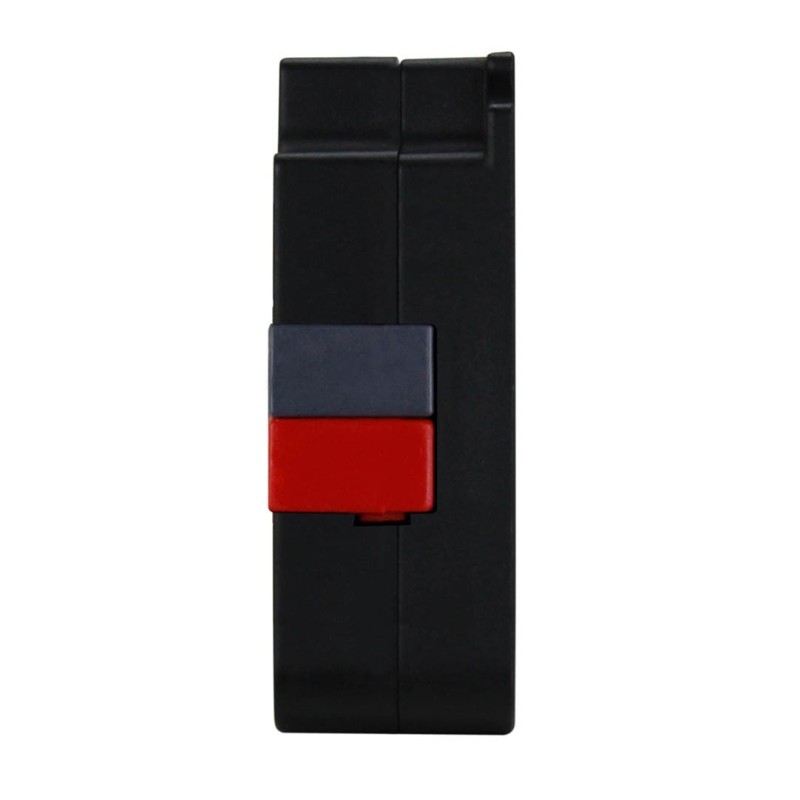

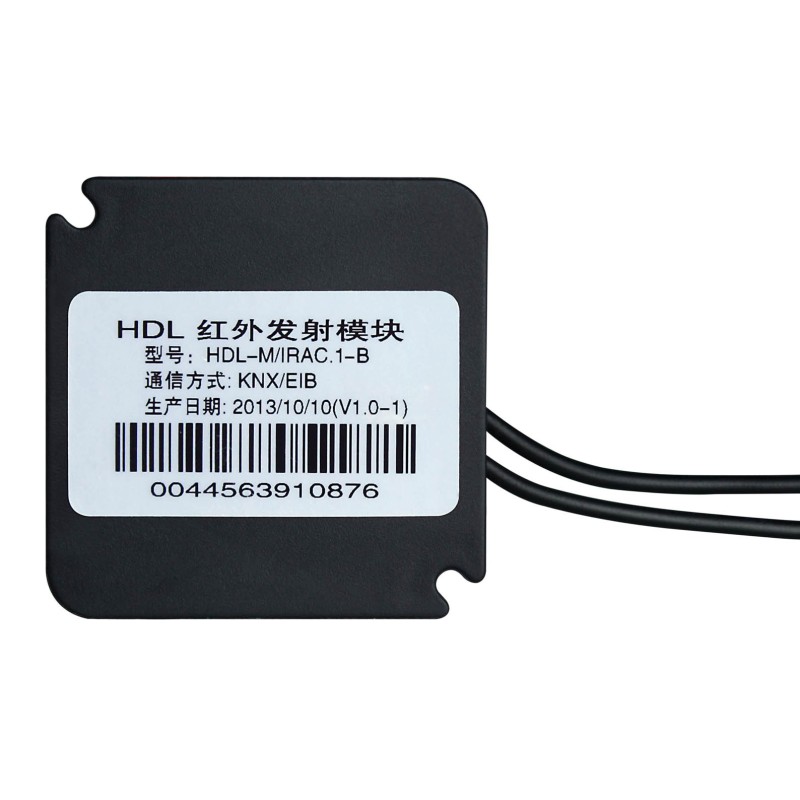

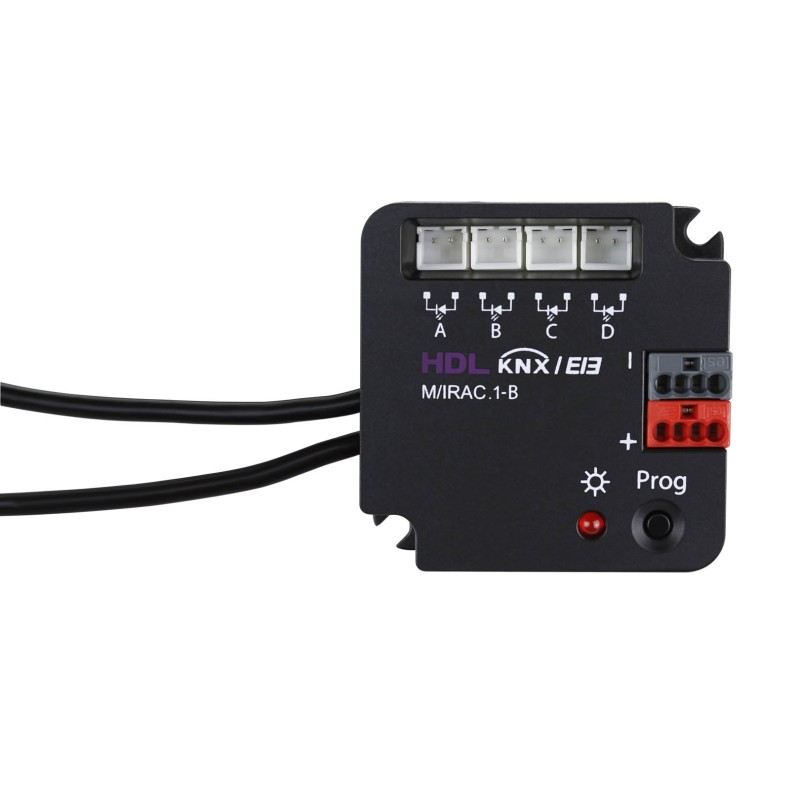

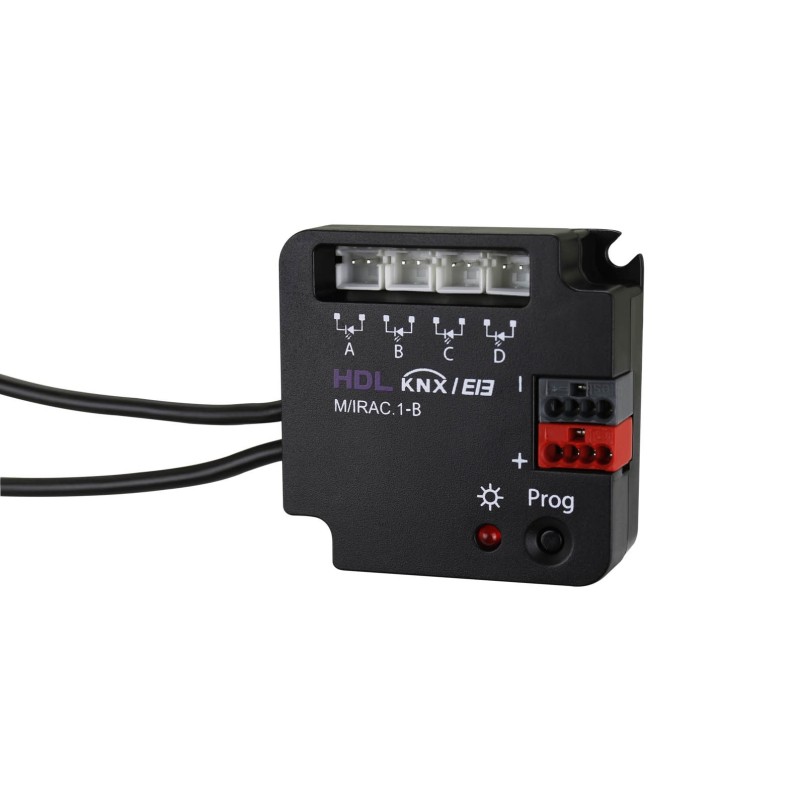

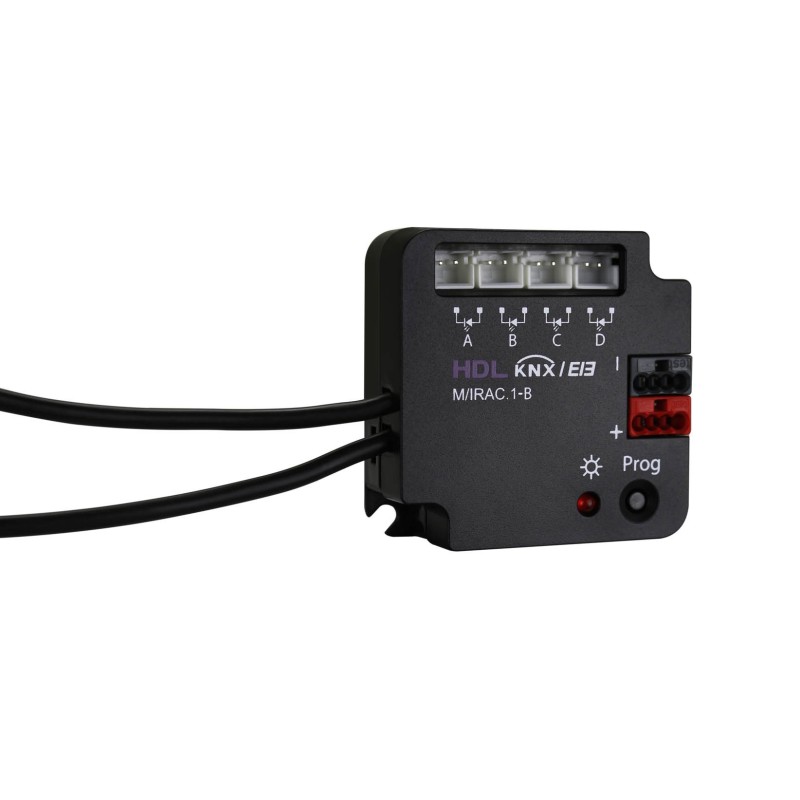

Infrared Emitter

to work with HDL-M/IRAC.1 Infrared Emitter.

For FCU Actuator,one wire bus for all of sensor, simple installation, metal shell with epoxy resin packaging protect sensor, allow to be putted to any of application for measure temperature.

includes 4 Dry Contact input channels, coupled with a temperature sensor and 4 dimming output channels or provide LED status indication.
Dimension (mm): 49*31*12

can be used as binary inputs and binary outputs. Binary input: used to switching, dimming and curtain control,Binary output: used to drive signal LEDs with on/off control or percentage control,Logic function: AND, OR, NAND, NOR, XOR, Auxiliary current:10mA/30V DC.
Dimension (mm): 72*90*64

USB Pluggable, IR learning/ Programming Kit. Comes with Software driver, for Pro installers and Integrators.
Dimension (mm): 98*70*38

Includes 24 Dry Contact input channels, serves as a bridge between mechanical or electronic control outputs and the KNX bus system. The unit enables the control of diverse targets, like dimmers, curtains, shutters, bells, etc.
Dimension (mm): 72*90*63

Includes 8 Dry Contact input channels, which is able to control sensors and logic controllers. The module can also control a diverse range of targets such as dimming controllers, curtain/shutter controllers, and switch controllers.
Dimension (mm): 49*31*12

Analog sensor, work with Dry Contact Module for temperature collection.

Tile Series 1 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 86*86*10.5

Panel Power Interface EU, with base Frame
Rated voltage：30V DC, Rated power : 50mA, Output power: 0.2A/5v DC
Provides DC power and communicates to HDL Wall panel, Tile Series Panel 2.1

Dimensions: 81.4*81.4*25.6

with 4-inch LCD screen，used to control lighting, curtain,air conditioning, security, floor heating, music etc, 480x480 Resolution,
Built-in speaker and Microphone
Built-in temperature and humidity sensors, Built-in human proximity sensor and light sensor, Ethernet access via Wifi or RJ45, IP20,Color Option: plastic Space Gray Frame/black glass.
Powered by specialized power interface to support Buspro, KNX, Zigbee protoco.
Dimension (mm):  86*86*11

USB Pluggable, IR learning/ Programming Kit. Comes with Software driver, for Pro installers and Integrators.
Dimension (mm): 98*70*38

to work with HDL-M/IRAC.1 Infrared Emitter.

Tile Series 4 button smart panel 2.1, used to control lighting, curtain and scene, Metal(Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1PF-KT.18

Dimensions (mm): 86*86*10.5

Occupancy Plus Sensor，Input voltage12 - 30V DC, support surface mount & surface mount，built in 24GHz millimeter wave
radar technology，includes LUX sensor, Temprature sensor , 2 ch Dry contact input, 1HVAC control，1 Constant brightness
control, logic block. supports Master & slave mode. Maximum detection range: diameter 8m，Support KNX Secure
Dimensions (mm): Φ66 x 34.6, Φ48.5 x 27.5

Input volatage:21-30V DC and Auxiliary power DC24V, to provide power supply, RJ45 ethernet connection to Source 7/10/Mini built-in KNX interface and 2ch 5A relay output
Support 86*86 mm Size backbox installation

Dimension (mm):  76*76*29.2
