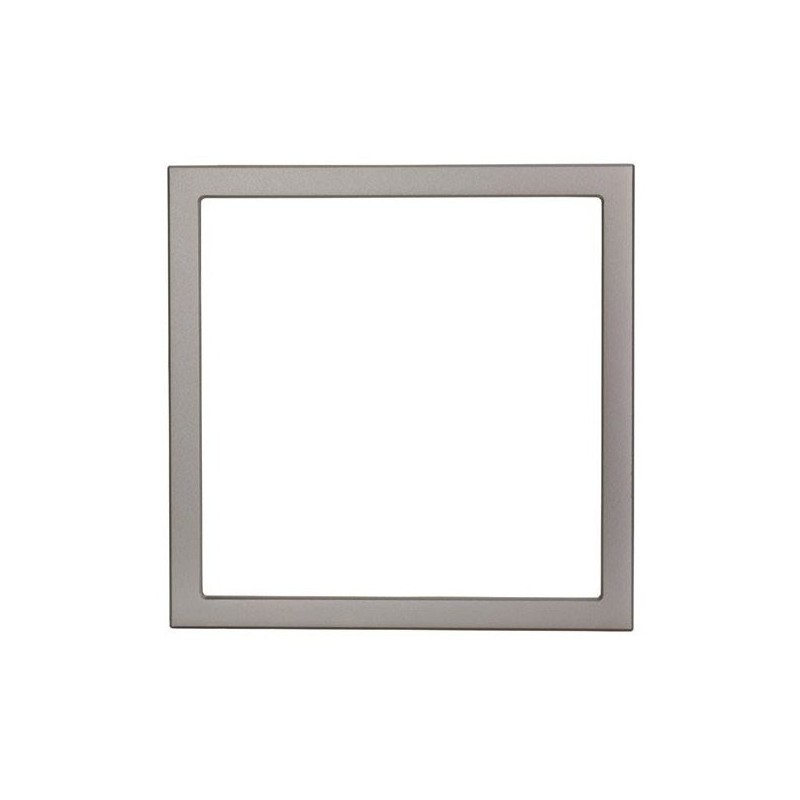

Tile Series 1 Gang Panel Frame 2.1 - Champagne Gold

Xelent Series 1 Gang Panel Frame - Brass, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 81.3*81.3*9

Xelent Series 2 Gang Panel Frame - Black, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 152.15*81.3*9

Xelent Series 1 Gang Panel Frame US Brushed Aluminium - Black, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 86*116.5*9

Xelent Series 4 Gang Panel Frame - Black, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 223*81.3*9

Xelent Series 4 Gang Panel Frame - Brass, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 223*81.3*9

Tile Series 4 Gang Panel Frame 2.1, vertical installation, plastic(ivory white, ash gray, Champagne Gold and space gray) are available

Dimensions (mm): 344*86*10.5

Xelent Series 4 Gang Panel Frame Vertical - Antique Bronze, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 81*294*9

Xelent Series 4 Gang Panel Frame - Antique Bronze, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 223*81.3*9

Xelent Series 1 Gang Panel Frame US - Ivory White, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 86*116.5*9

Xelent Series 4 Gang Panel Frame Vertical - Charcoal Gray, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 81*294*9

Tile Series 3 Gang Panel Frame 2.1 - Space gray, vertical installation, metal material(Champagne Gold/ space gray) is available.

Dimensions (mm):  258*86*10.5

Tile Series 1 Gang Panel Base Frame, MPFPIT-0210-KT.17 & MPFPIT-0410-KT.17

Dimensions (mm): 80.6 * 86.6

Xelent Series 2 Gang Panel Frame - Ivory White, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 152.15*81.3*9

Xelent Series 4 Gang Panel Frame Vertical - Ivory White, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 81*294*9

Tile Series 4 Gang Panel Frame 2.1 - Space gray, vertical installation, metal material(Champagne Gold/ space gray) is available.

Dimensions (mm):   344*86*10.5

Xelent Series 4 Gang Panel Frame - Charcoal Gray, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 223*81.3*9

Input volatage:21-30V DC and Auxiliary power DC24V, to provide power supply, RJ45 ethernet connection to Source 7/10/Mini built-in KNX interface and 2ch 5A relay output
Support 86*86 mm Size backbox installation

Dimension (mm):  76*76*29.2

Panel Power Interface EU, with base Frame
Rated voltage：30V DC, Rated power : 50mA, Output power: 0.2A/5v DC
Provides DC power and communicates to HDL Wall panel, Tile Series Panel 2.1

Dimensions: 81.4*81.4*25.6

with 4-inch LCD screen，used to control lighting, curtain,air conditioning, security, floor heating, music etc, 480x480 Resolution,
Built-in speaker and Microphone
Built-in temperature and humidity sensors, Built-in human proximity sensor and light sensor, Ethernet access via Wifi or RJ45, IP20,Color Option: plastic Space Gray Frame/black glass.
Powered by specialized power interface to support Buspro, KNX, Zigbee protoco.
Dimension (mm):  86*86*11

to work with HDL-M/IRAC.1 Infrared Emitter.

Tile Series 4 button smart panel 2.1, used to control lighting, curtain and scene, Metal(Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1PF-KT.18

Dimensions (mm): 86*86*10.5

Occupancy Plus Sensor，Input voltage12 - 30V DC, support surface mount & surface mount，built in 24GHz millimeter wave
radar technology，includes LUX sensor, Temprature sensor , 2 ch Dry contact input, 1HVAC control，1 Constant brightness
control, logic block. supports Master & slave mode. Maximum detection range: diameter 8m，Support KNX Secure
Dimensions (mm): Φ66 x 34.6, Φ48.5 x 27.5

USB Pluggable, IR learning/ Programming Kit. Comes with Software driver, for Pro installers and Integrators.
Dimension (mm): 98*70*38

Supports 4 channel infrared interfaces, totally can store up to 650 infrared codes, The control modes are ON/OFF control, Temperature control, Cooling/Heating, Fan speed control, Swing control etc.
Dimension (mm): 49*31*12
