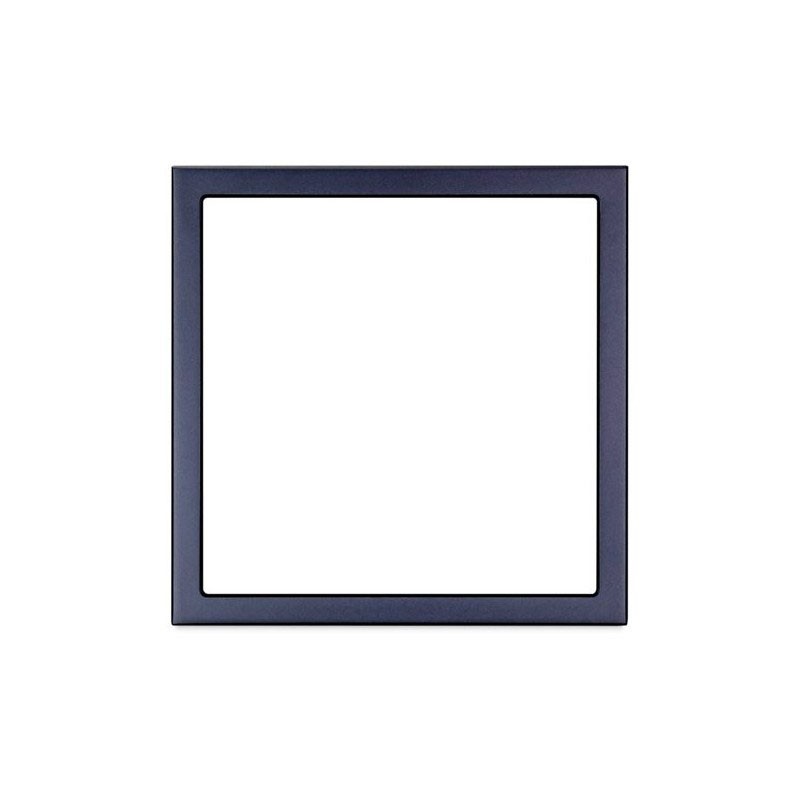

Tile Series 1 Gang Panel Frame 2.1 - Ash Gray

Tile Series 1 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 86*86*10.5

Xelent Series 3 Gang Panel Frame - Ivory White, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 223*81.3*9

Xelent Series 1 Gang Panel Frame - Black, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 81.3*81.3*9

Tile Series 1 Gang Panel Frame 2.1 - Space Gray, Metal (Champagne Gold/space gray color) material

Dimensions (mm): 86×86×10.5

Tile Series 2 Gang Panel Frame 2.1, vertical installation, plastic(ivory white, ash gray, Champagne Gold and space gray) are available.

Dimensions (mm): 172*86*10.5

Xelent Series 1 Gang Panel Frame US - Ivory White, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 86*116.5*9

Xelent Series 1 Gang Panel Frame US Brushed Aluminium - Brass, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 86*116.5*9

Xelent Series 3 Gang Panel Frame Vertical  - Black, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 81*223*9

Xelent Series 2 Gang Panel Frame - Black, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 152.15*81.3*9

Tile Series 4 Gang Panel Frame 2.1 - Space Gray, Metal (Champagne Gold/space gray color) material

Dimensions (mm): 344*86*10.5

Xelent Series 3 Gang Panel Frame - Charcoal Gray, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 223*81.3*9

Xelent Series 3 Gang Panel Frame - Black, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 223*81.3*9

Tile Series 1 Gang Panel Frame 2.1 - Space Gray, Metal (Champagne Gold/space gray color) material

Dimensions (mm): 86×86×10.5

Xelent Series 3 Gang Panel Frame Vertical - Antique Bronze, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 81*223*9

Tile Series 2 Gang Panel Frame 2.1, vertical installation, plastic(ivory white, ash gray, Champagne Gold and space gray) are available.

Dimensions (mm): 172*86*10.5

Xelent Series 4 Gang Panel Frame - Brass, (antique bronze/black/brass/charcoal gray/ivory white)

Dimensions (mm): 223*81.3*9

Modern Series DLP Smart Panel EU, with LCD screen and Aluminum Frame,
Multipage used to control the lighting, curtain, scene, music, AC and floor heating. built-in temperature sensor.
Powered by M/PCI.1-A
Dimensions (mm): 86*86*10

DIN-Rail Mount,10A per Channel, both 110/250 VAC, 50 60Hz,internal use of 16A High-current magnetic relay.
Dimension (mm):  72*90*66

DIN-Rail Mount,10A per Channel,both 110/250 VAC, 50 60Hz,internal use of 16A High-current magnetic relay.
Dimension (mm):  216*90*66

Tile Series 8 button smart panel 2.1，used to control lighting,curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon,
Frame is NOT included,
Powered by MPFPIT-1PF-KT.18

Dimenstions (mm): 86*86*10.5

DIN-Rail Mount,10A per Channel, both 110/250 VAC, 50 60Hz,internal use of 16A High-current magnetic relay.
Dimension (mm):  144*90*66

DIN-Rail Mount,10A per Channel,both 110/250 VAC, 50 60Hz,internal use of 16A High-current magnetic relay.
Dimension (mm):  288*90*66

Tile Series 1 Gang Panel Base Frame 2.1 EU，For MPFPIT-1P-KT.18 & MPFPIT-2P-KT.18

Dimensions (mm): 80.6 * 86.6

Panel Power Interface EU，Rated voltage：30V DC, Rated power : 50mA , output power: 0.2A/5v DC ，provides DC power and

communicates to HDL KNX Wall panel, Support KNX Xelent Series Panel

Dimensions (mm): 51.2*51.2*23.1
