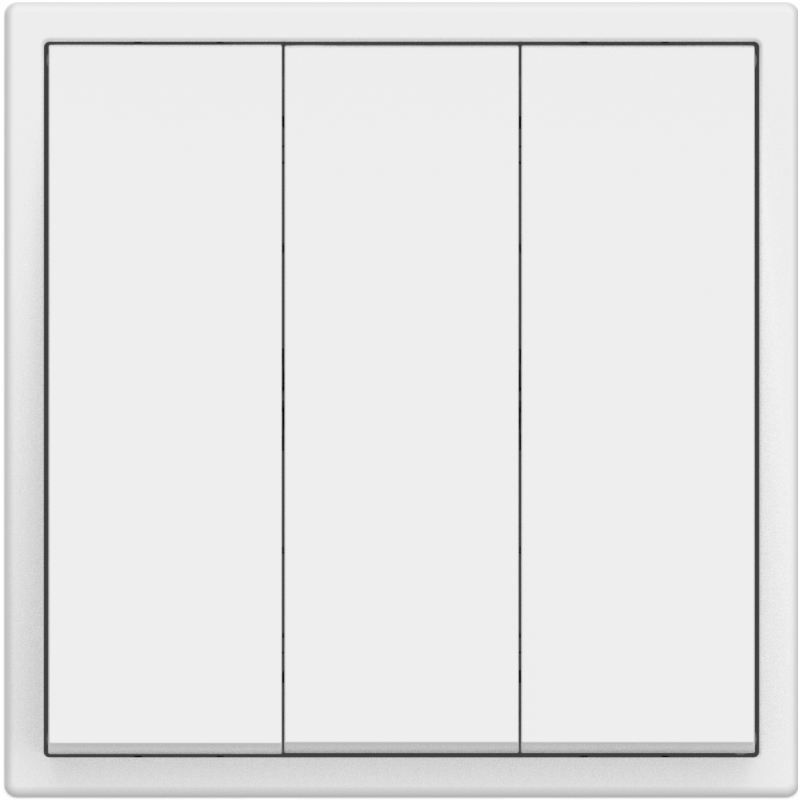

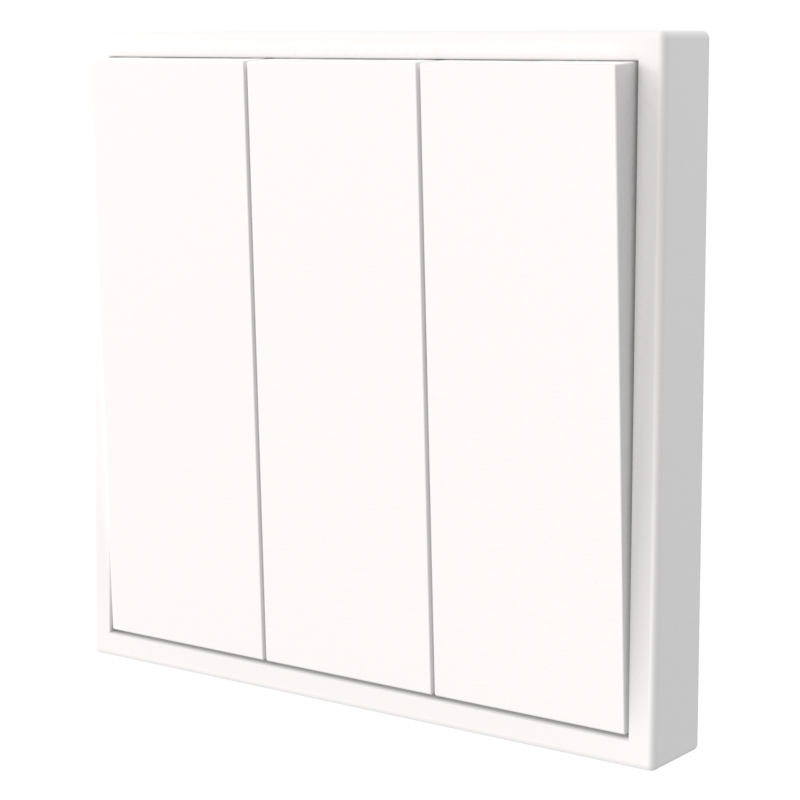

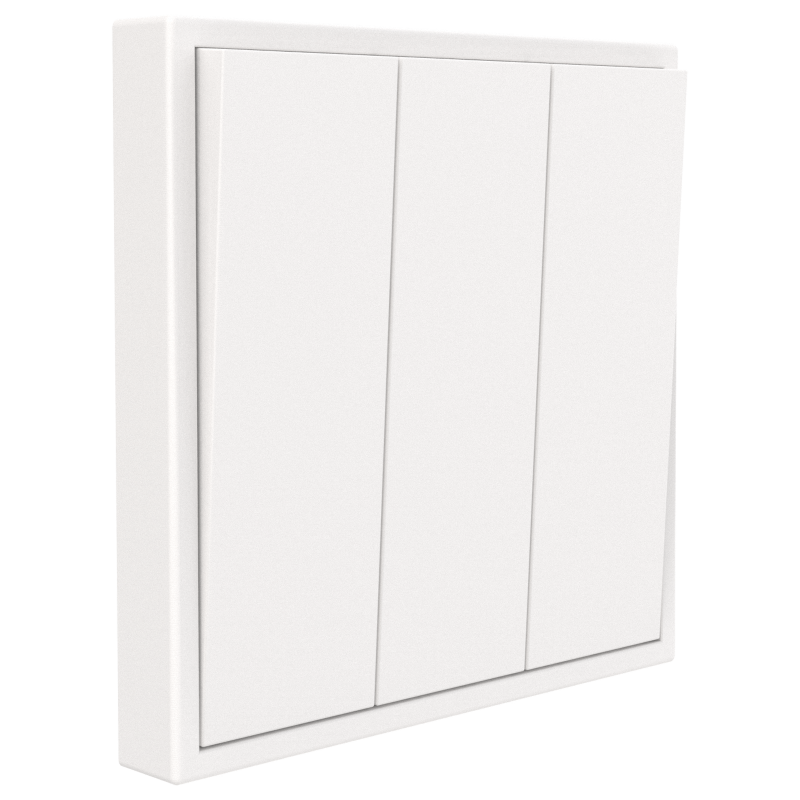

Tile Series 3 Button Rocker Switch 2.1 - Ivory White

Xelent Series 1 Port Coax Cable TV-F-Type Wall Jack, mount with plastic and metal frame,
Plastic: Ivory white/Charcoal Gray

Frame is NOT included.
Dimensions (mm):  81x81x47.56

Tile Series USB and Type-C Outlet 2.1, Rated voltage: 250V AC~, AC 100-240V~,50/60Hz , Maximum current 0.3A, Output Power 20W,
Type-C output : 5V / 3A, 9V / 2.22A, 12V / 1.67A .four colors(ivory white, ash gray, Champagne Gold and space gray) are
available for plastic plate,mount with plastic and metal frame
Frame is NOT included.

Dimensions (mm): 86*86*37.2

Xelent Series 2 Ports Ethernet Wall Jack, mount with plastic and metal frame,
Brushed Aluminium: Black, Antique Bronze, Brass

Frame is NOT included.
Dimensions (mm):  81x81x41.6

Xelent Series 1 Port Telephone Wall Jack, provides Cat3 telephone signal interface for transmitting signals to telephone devices，mount with plastic and metal frame,
Brushed Aluminium: Black, Antique Bronze, Brass

Frame is NOT included.
Dimensions (mm): 81x81x47.9

Tile Series Waterproof EU Power Socket 2.1, Rated voltage: 250V AC~ 16A,Waterproof grade:IP44,four colors(ivory white, ash
gray, Champagne Gold and space gray) are available for plastic plate,mount with plastic and metal frame,
Frame is NOT included.

Dimensions (mm): 86*86*40.5

Xelent Series 1 Button Rocker Switch, Rated voltage：250V~ 50/60Hz ，Rated current： 10A/CH, mount with plastic and metal frame,
Plastic: Ivory white/Charcoal Gray

Frame is NOT included.
Dimensions (mm):  81x81x33.2

Tile Series 1 Port Cable TV Ethernet Wall Outlet 2.1, four colors(ivory white, ash gray, Champagne Gold and space gray) are available for
plastic plate,mount with plastic and metal frame
Frame is NOT included.

Dimensions (mm): 86*86*33.4

Xelent Series EU Socket - Ivory White, Rated voltage: 250V AC~ 16A, mount with plastic and metal frame.
Plastic：Ivory white/Charcoal Gray

Frame is NOT included.
Dimensions (mm): 81x81x38.85

Xelent Series TV and Ethernet Wall Jack, Ethernet: unshielded Cat6 cable; TV: RF interface ，mount with plastic and metal frame,
Brushed Aluminium: Black, Antique Bronze, Brass

Frame is NOT included.
Dimensions (mm):  81x81x41.6

Tile Series Shaver Socket 2.1, Input voltage: 100-240V AC~ ,four colors(ivory white, ash gray, Champagne Gold and space gray) are
available for plastic plate, mount with plastic and metal frame
Frame is NOT included.

Dimensions (mm): 86×86×58.9

Xelent Series Emergency Panel, Communication: Passive dry contact, mount with plastic and metal frame,
Brushed Aluminium: Black, Antique Bronze, Brass

Frame is NOT included.
Dimensions (mm):  81x81x35.5

Xelent Series Emergency Panel, Communication: Passive dry contact, mount with plastic and metal frame,
Brushed Aluminium: Black, Antique Bronze, Brass

Frame is NOT included.
Dimensions (mm):  81x81x35.5

Tile Series UK Switch Socket 2.1, Rated voltage: 250V~50/60Hz, Rated current:13A, four colors(ivory white, ash gray, champagne gold and space gray)
are available for plastic plate, mount with plastic and metal frame
Frame is NOT included

Xelent Series 1 Port Cable TV Wall Jack, mount with plastic and metal frame,
Plastic: Ivory white/Charcoal Gray

Frame is NOT included.
Dimensions (mm):  81x81x33.2

Tile Series 1 Port Coax Cable TV-F-Type Wall Outlet 2.1, four colors(ivory white, ash gray,Champagne Gold and space gray) are
available for plastic plate,mount with plastic and metal frame
Frame is NOT included.

Dimensions (mm): 86*86*36.9

Xelent Series Universal Socket, Rated voltage: 250V AC~ 16A, mount with plastic and metal frame
Plastic: Ivory white/Charcoal Gray

Frame is NOT included.
Dimensions (mm): 81x81x35.3

Input volatage:21-30V DC and Auxiliary power DC24V, to provide power supply, RJ45 ethernet connection to Source 7/10/Mini built-in KNX interface and 2ch 5A relay output
Support 86*86 mm Size backbox installation

Dimension (mm):  76*76*29.2

Tile Series 2 Button Rocker Switch 2.1, Rated voltage: 250V AC~ 10A,four colors(ivory white, ash gray, Champagne Gold and space gray) are available for plastic plate, mount with plastic and metal frame,
Frame is NOT included.

Dimensions (mm): 86×86×35.9

Tile Series 8 button smart panel 2.1，used to control lighting,curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon,
Frame is NOT included,
Powered by MPFPIT-1PF-KT.18

Dimenstions (mm): 86*86*10.5

KNX IP Router Secure, KNX IP router with KNX Security, DIN-Rail Mount，
It can be used as line‐ or backbone coupler and provides a data connection between
the upper KNX net/IP line (main line or backbone) and the lower TP KNX bus line (sub line).
It also provides with the tunnelling protocol a connection point for ETS to enable commissioning and monitoring.with KNX Security

Dimensions: 61*18*90

Provides DC power and communicates to HDL Wall panel For US Type panel that model number with -A2 and Granite Series US.
Dimension (mm):  86*116*30

Panel Power Interface EU, with base Frame
Rated voltage：30V DC, Rated power : 50mA, Output power: 0.2A/5v DC
Provides DC power and communicates to HDL Wall panel, Tile Series Panel 2.1

Dimensions: 81.4*81.4*25.6

with 4-inch LCD screen，used to control lighting, curtain,air conditioning, security, floor heating, music etc, 480x480 Resolution,
Built-in speaker and Microphone
Built-in temperature and humidity sensors, Built-in human proximity sensor and light sensor, Ethernet access via Wifi or RJ45, IP20,Color Option: plastic Space Gray Frame/black glass.
Powered by specialized power interface to support Buspro, KNX, Zigbee protoco.
Dimension (mm):  86*86*11

Tile Series 4 button smart panel 2.1，used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1PF-KT.18

Dimensions (mm): 86*86*10.5
