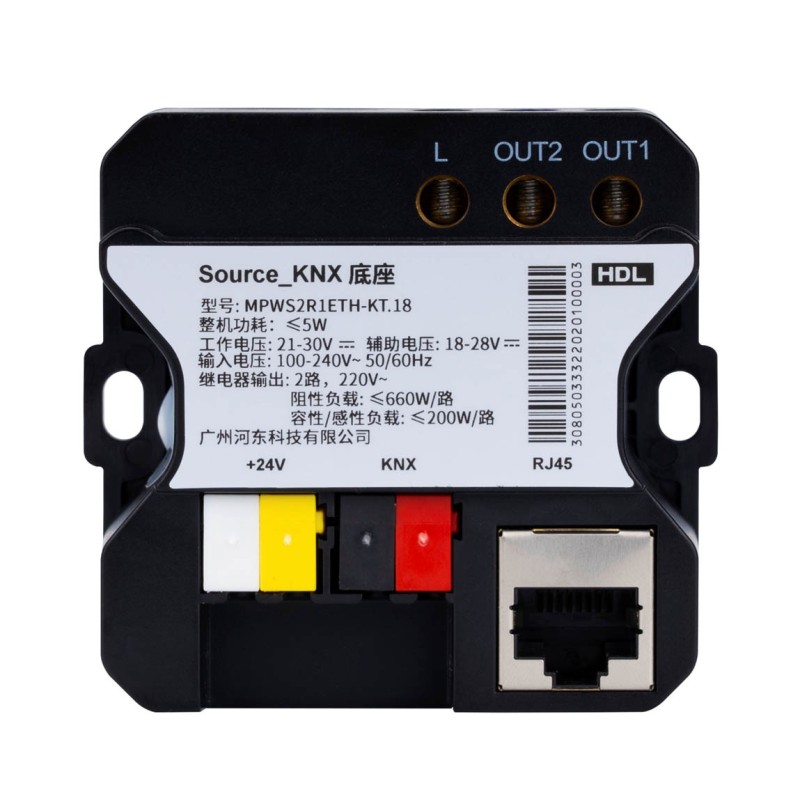

Source KNX Power interface

Panel Power Interface With 2CH 10A Relay，For Tile Series Panel 2.1 depth of backbox 50mm)

Dimensions (mm): 68.9*68.2*26.5

Input voltage:AC100-240V (50/60Hz), Auxiliary current output: 10mA/24V DC: 10mA/24V DC, 3CH 10A magnetic latching relay output, Long press the programming button to realize all relay channels on/off,provides DC power and communicates to Granite Display, EU Type panel that model number with-A2 and Granite Series EU,comply with 86*86 Size junction box only
Dimension (mm):  80×80×31.9

Panel Power Interface With 4CH 10A Relay，For Tile Series Panel 2.1 ( depth of backbox 50mm)

Dimensions (mm): 68.9*68.2*26.5

Provides DC power and communicates to HDL Wall panel For US Type panel that model number without-A2 .
Dimension (mm):  86*116*30

Tile Series 1 Gang Panel Base Frame 2.1 EU，For MPFPIT-1P-KT.18 & MPFPIT-2P-KT.18

Dimensions (mm): 80.6 * 86.6

Input voltage:AC100-240V (50/60Hz), Auxiliary current output: 10mA/24V DC: 10mA/24V DC, 2CH 10A magnetic latching relay output, Long press the programming button to realize all relay channels on/off,
provides DC power and communicates to Granite Display, EU Type panel that model number with-A2 and Granite Series EU.Comply with 86*86 Size junction box only
Dimension (mm):  80×80×31.9

Provides DC power and communicates to HDL Wall panel,
For EU Type panel that model number without-A2 .
Dimension (mm):  86*86*30

Panel power interface with auxiliary power interface EU， Rated voltage:30V , Retaed current: 10mA/30v,output power:1A/5v,

Auxiliary power supply:400ma/24v,provides DC power and communicates to Tile Series Thermostat 2.1 MPHT-6B-KT.18

Dimensions (mm): 51.2*51.2*23.1

Panel Power Interface EU, with base Frame
Rated voltage：30V DC, Rated power : 50mA, Output power: 0.2A/5v DC
Provides DC power and communicates to HDL Wall panel, Tile Series Panel 2.1

Dimensions: 81.4*81.4*25.6

Provides DC power and communicates to M/MPTLC43.1-A2, M/PTL43.1
Dimension (mm):  86*116*30

Provides DC power and communicates to M/PTL4.1
Dimension (mm):  86*86*30

KNX Dual Output Power Supply Module, DIN-Rail Mount, 100-240V~ 50/60Hz,
Provides one KNX BUS output 30V DC 640mA and one 24V DC 640mA auxiliary output,
overload, short-circuit, over-voltage and over-temperature protection, manual reset function.

Dimensions: 72*90*64

Provides DC power and communicates to Tile Series Thermostat 2.0, Tile Display
Dimension (mm):  81.4*81.4*27

Panel Power Interface EU，Rated voltage：30V DC, Rated power : 50mA , output power: 0.2A/5v DC ，provides DC power and

communicates to HDL KNX Wall panel, Support KNX Xelent Series Panel

Dimensions (mm): 51.2*51.2*23.1

Tile Series 1 Gang Panel Base Frame, MPFPIT-0210-KT.17 & MPFPIT-0410-KT.17

Dimensions (mm): 80.6 * 86.6

Provides DC power and communicates to HDL Tile Series Wall panel Excludes Tile Thermostat 2.0
Dimension (mm):  81.4*81.4*27

DIN-Rail Mount, 5CH for relay output and 2CH DC 0-10V output. with FCU control and floor heating control, it has High-Medium-Low Fan Speed,also cooling and heating control if selected FCU function in ETS , it has 7CH floor heating control if selected by ETS, Support 7 digital temperature sensors.
Dimension (mm): 72*90*66

Android OS with built-in Smart home App to control lighting, curtain,air conditioning, security, floor heating, music etc, 1280*720 Resolution, built-in Camera and Microphone to support between-in Screen intercom
Built-in proximity sensor/Lux sensor, Bult-in temperature and humidiry sensor, Ethernet access via Wifi or RJ45, IP20,
Color Option: Ink Black, Pine Green, Moutain Blue. Powered by specialized power interface to support Buspro, KNX, Zigbee protoco.

Dimension (mm):  219*102*26

Supports 4 channel infrared interfaces, totally can store up to 650 infrared codes, The control modes are ON/OFF control, Temperature control, Cooling/Heating, Fan speed control, Swing control etc.
Dimension (mm): 49*31*12

Tile Series 1 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 86*86*10.5

to work with HDL-M/IRAC.1 Infrared Emitter.

Occupancy Plus Sensor，Input voltage12 - 30V DC, support surface mount & surface mount，built in 24GHz millimeter wave
radar technology，includes LUX sensor, Temprature sensor , 2 ch Dry contact input, 1HVAC control，1 Constant brightness
control, logic block. supports Master & slave mode. Maximum detection range: diameter 8m，Support KNX Secure
Dimensions (mm): Φ66 x 34.6, Φ48.5 x 27.5

 Supports Deadbolt and Latch

Communication Protocol under Link: Buspro, Zigbee, KNX

 Lock Cylinder Level: C-Level

 Lock Body Type: Mechanical Lock Body

 Unlocking Methods: Fingerprint, Password, Induction Card, Mechanical Key, Mobile APP Temporary Password, Dual Authentication

 Door Opening Direction: Supports Left and Right Reversal of Handle

 Virtual Password: Supports up to 32 Digits (Including Correct Password)

 Temporary Password: Supported

 Key Capacity: 50, Fingerprint Capacity: 50, Induction Card Capacity: 50

 Fingerprint Sensor Type: Semiconductor / Recognition Speed: <1s

 Alarms: Tamper Alarm, Low Battery Alarm, Anti-Tamper Lock (Locks After 3 Consecutive Failed Attempts Within 5 Minutes for Password/Card or 5 for

 Fingerprint, System Locks for 3 Minutes) / Stay Detection

 Working Power: 4 AA Batteries

 Emergency Power: Type C

 Dimensions: 360*73*23mm

 Supports Deadbolt and Latch

 Door Thickness: 40mm-120mm

 Doorbell: Electronic Doorbells

 Battery Life: 6-8 Months

 Shell Material: Aluminum Alloy

 Installation: Suitable for Iron and Wooden Doors

Each channel can be used separately or used for RGBW composite control. support staircase lighting, flasher, logic control, threshold switching, sequence control and RGBW composite control switching.
Dimension (mm):  183*84*39
