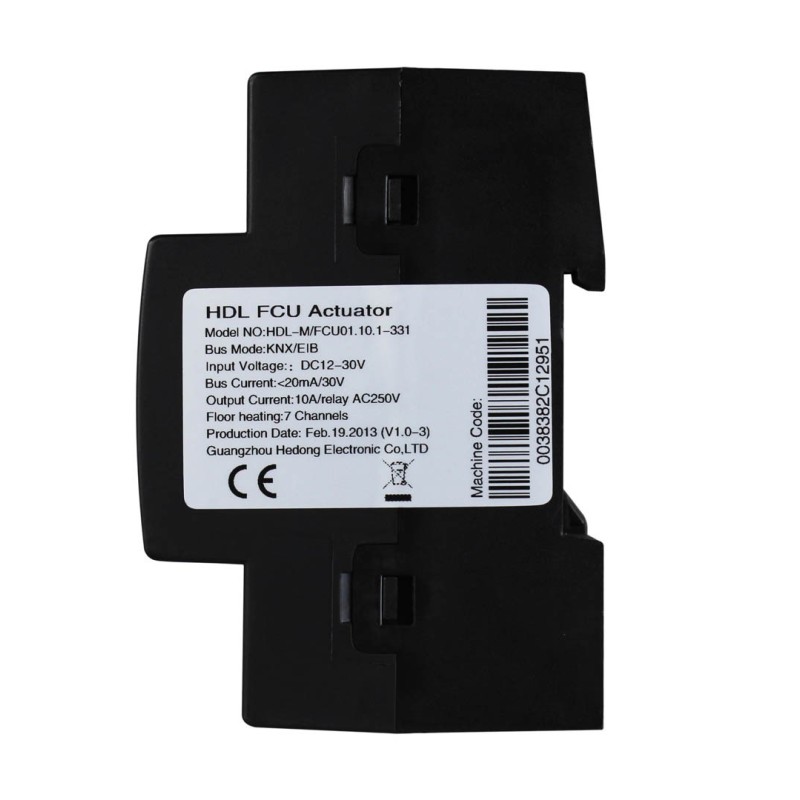

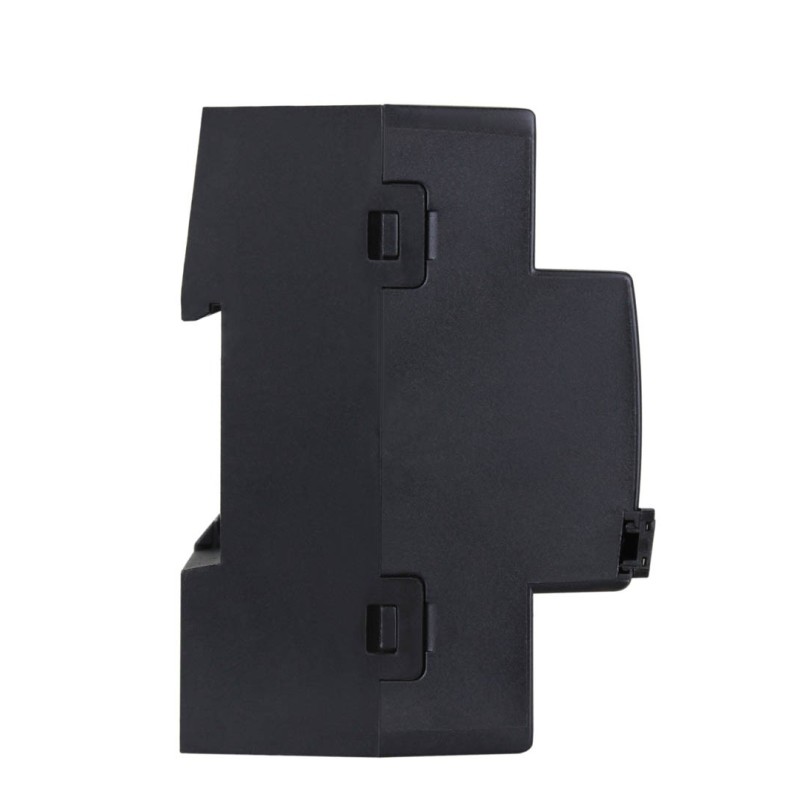

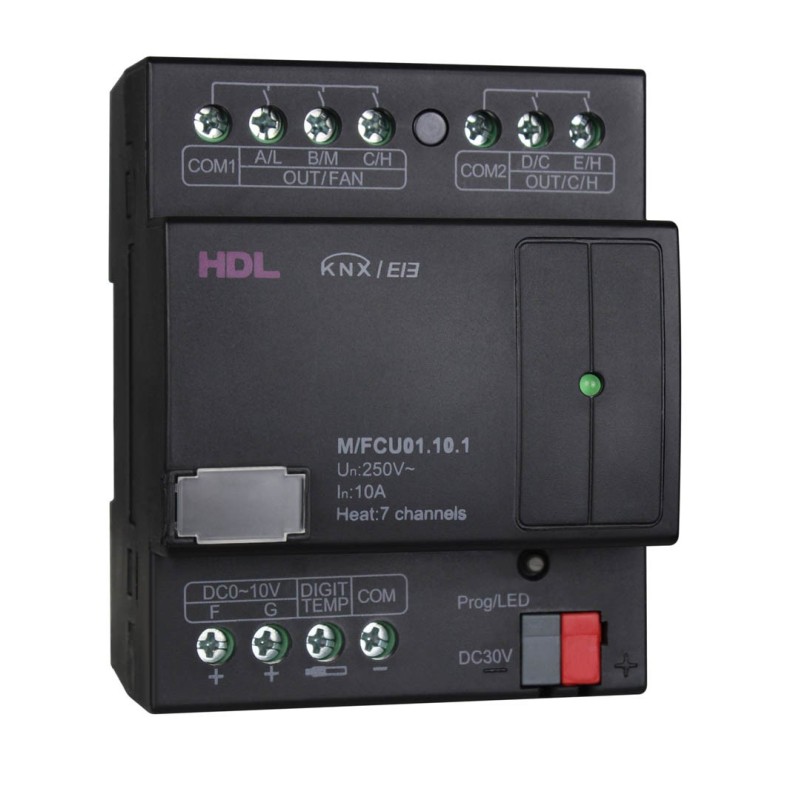

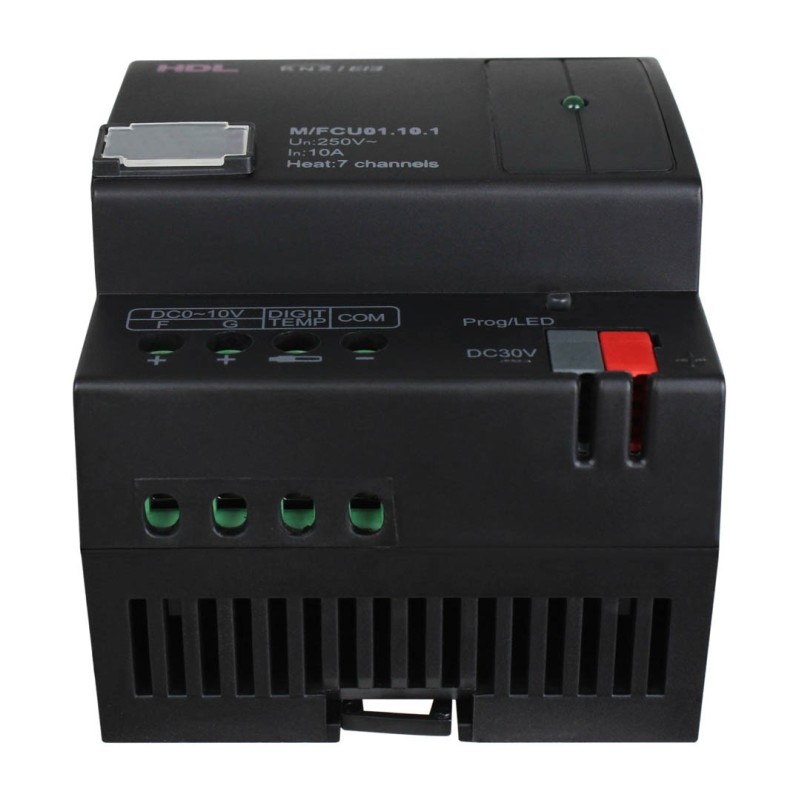

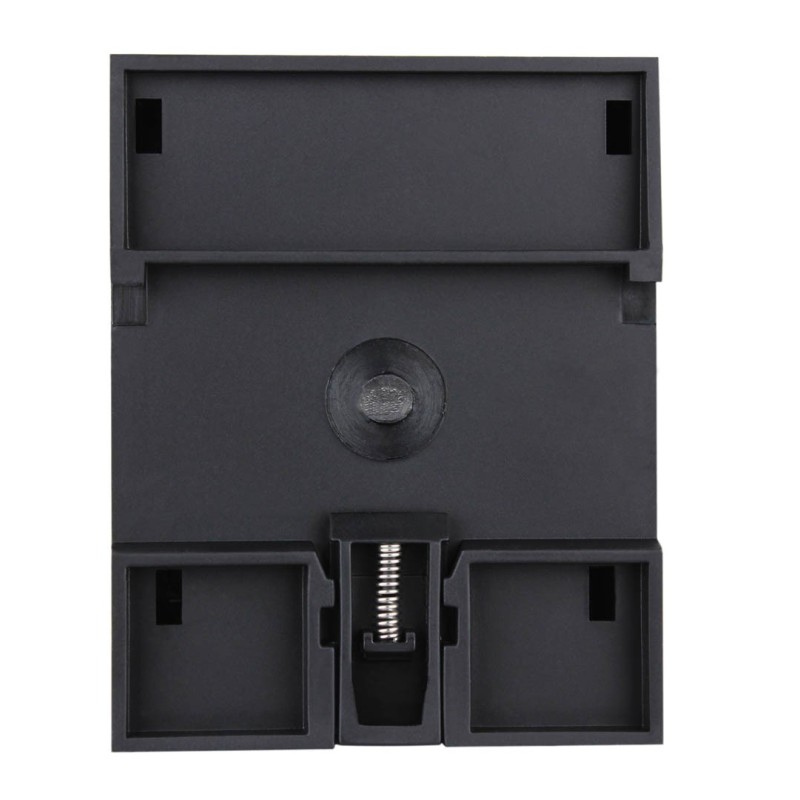

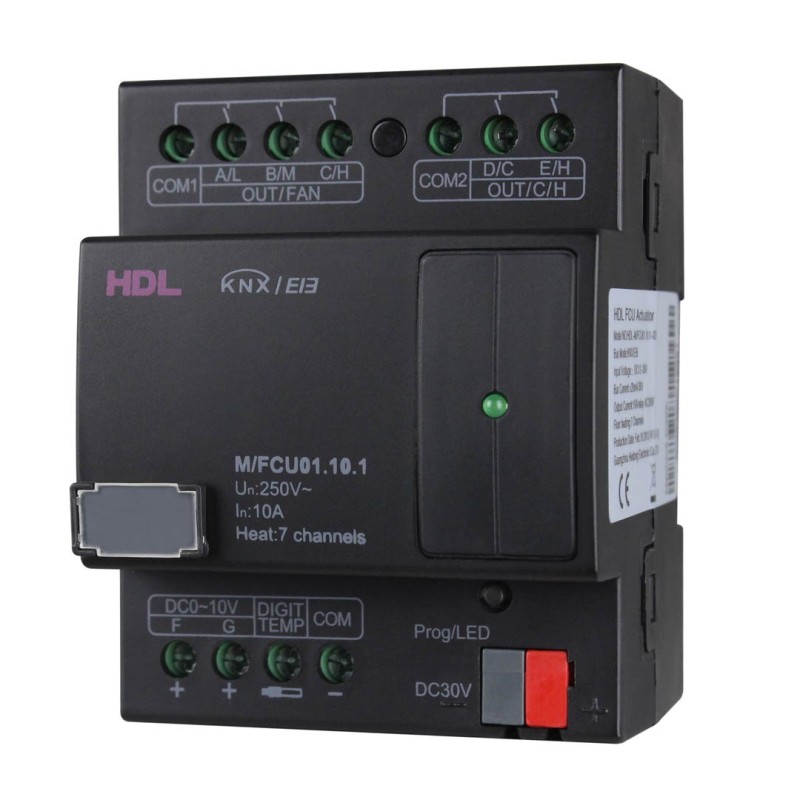

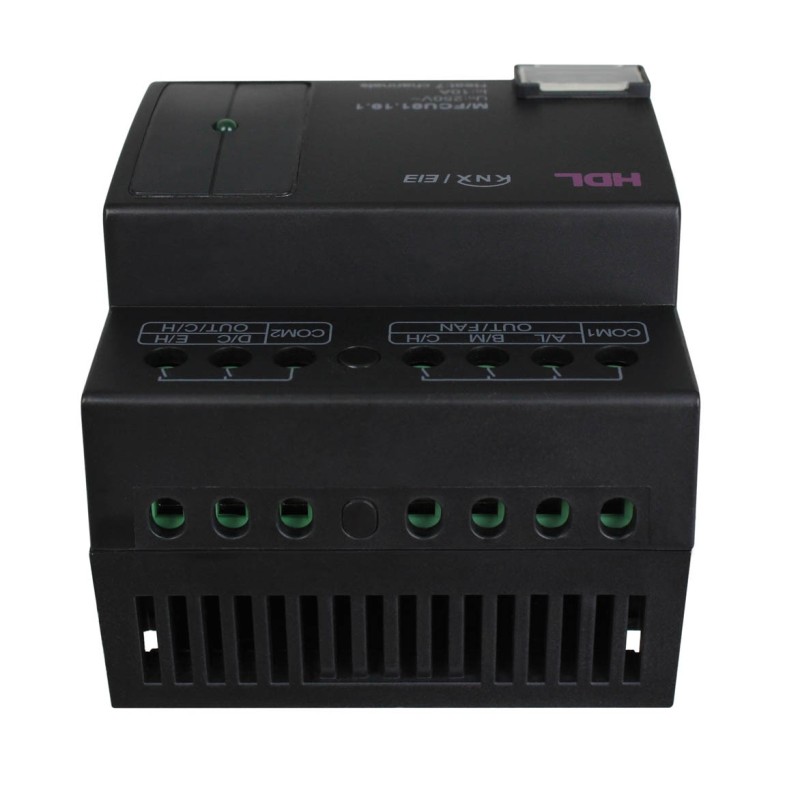

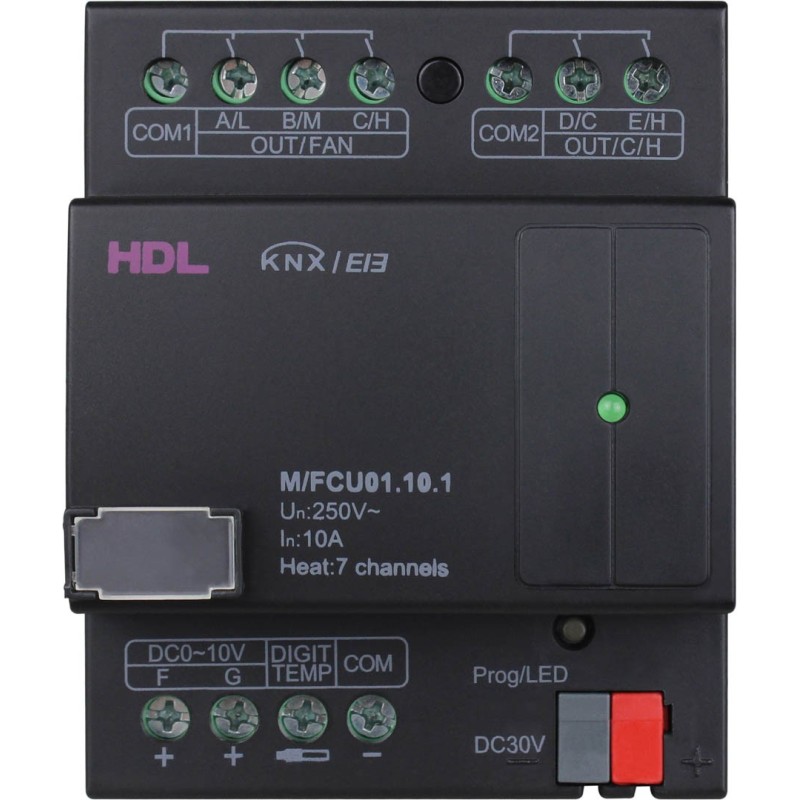

FCU & Floor Heating Actuator
DIN-Rail Mount, 5CH for relay output and 2CH DC 0-10V output. with FCU control and floor heating control, it has High-Medium-Low Fan Speed,also cooling and heating control if selected FCU function in ETS , it has 7CH floor heating control if selected by ETS, Support 7 digital temperature sensors.
Dimension (mm): 72*90*66
Specifications
- Bus Power
- 20mA
- Protocol
- KNX
- MPN
- 311010059
