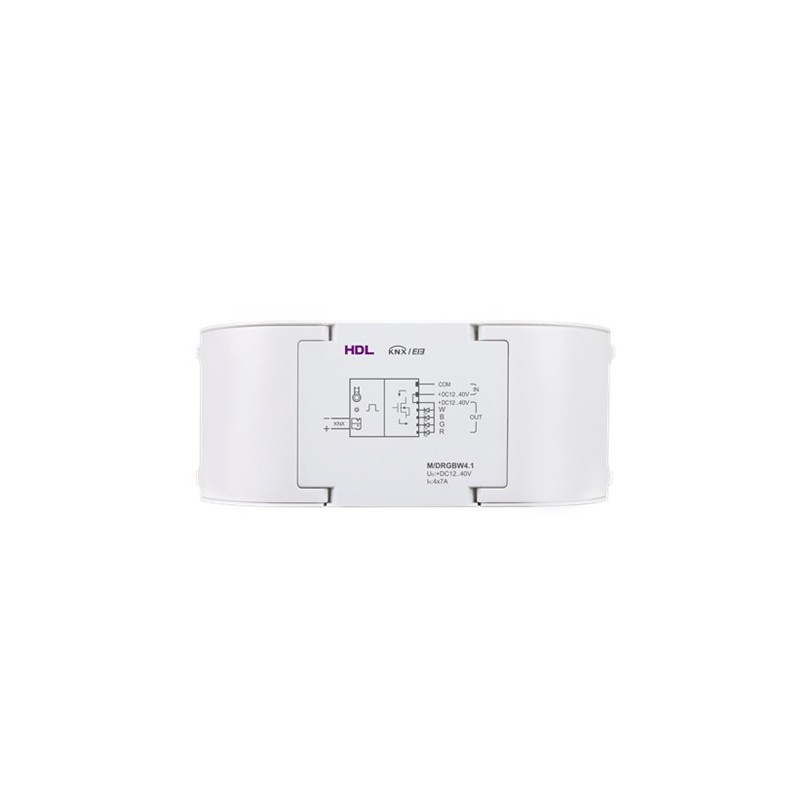

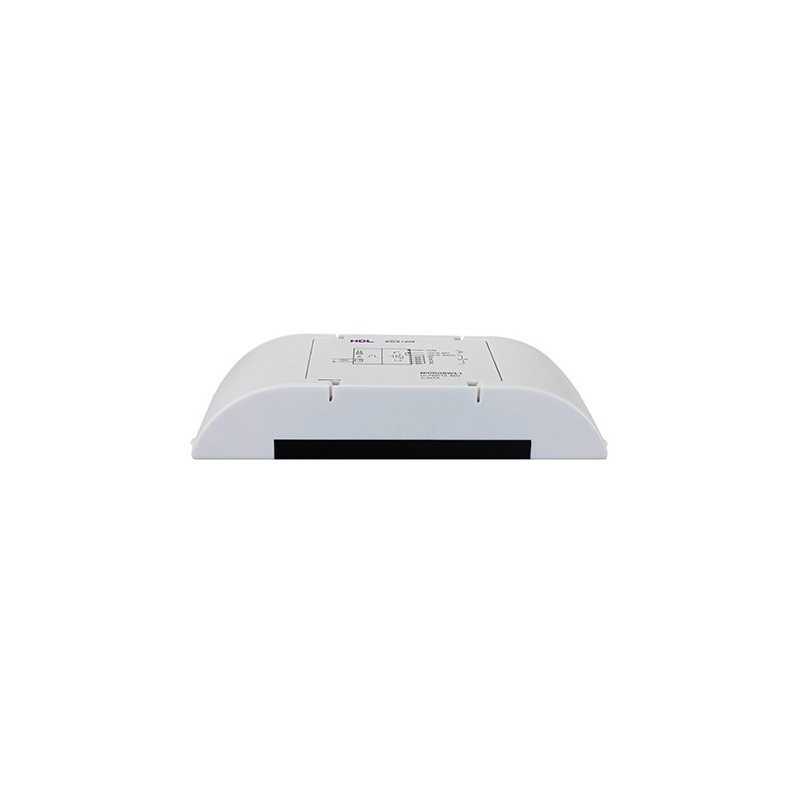

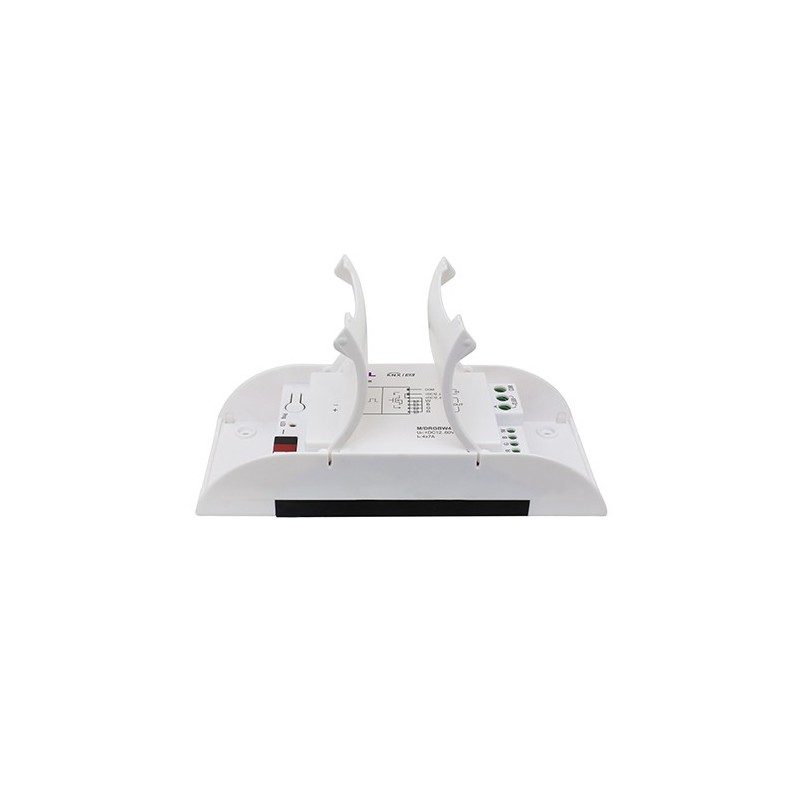

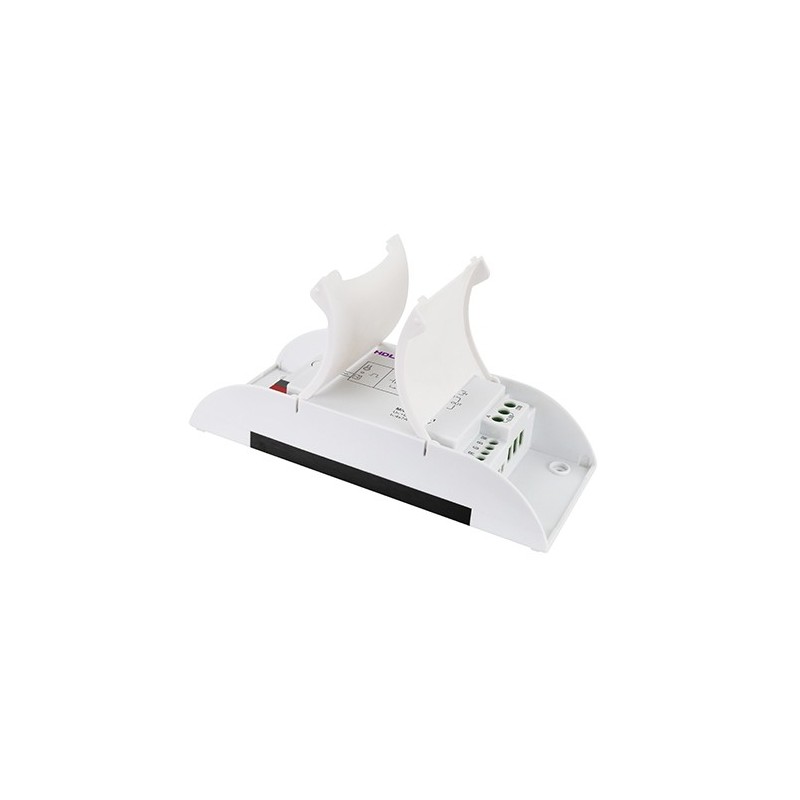

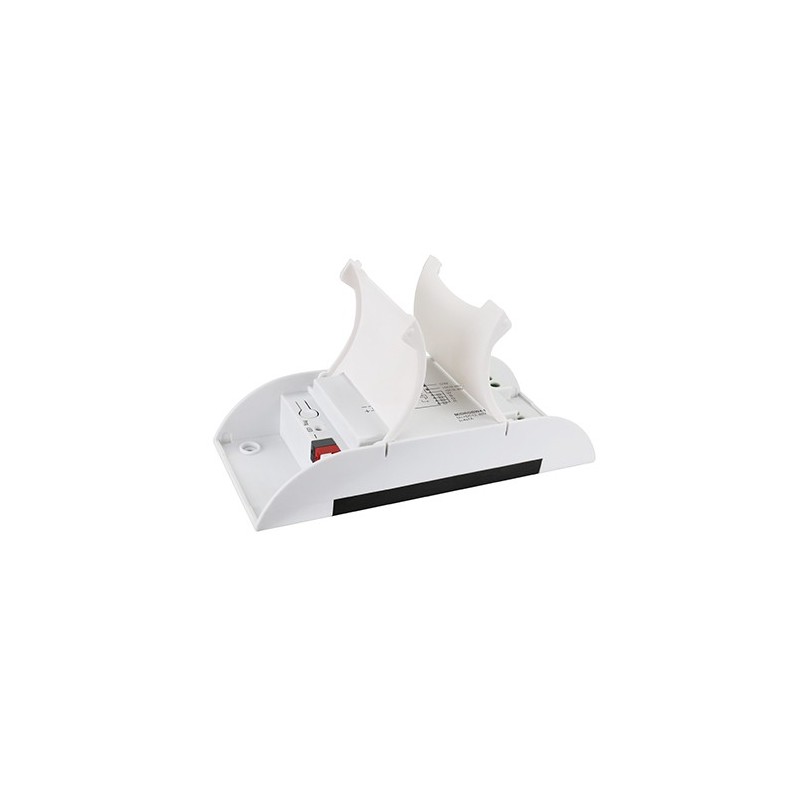

Each channel can be used separately or used for RGBW composite control. support staircase lighting, flasher, logic control, threshold switching, sequence control and RGBW composite control switching.
Dimension (mm): 183*84*39
For FCU Actuator,one wire bus for all of sensor, simple installation, metal shell with epoxy resin packaging protect sensor, allow to be putted to any of application for measure temperature.
Input volatage:21-30V DC and Auxiliary power DC24V, to provide power supply, RJ45 ethernet connection to Source 7/10/Mini built-in KNX interface and 2ch 5A relay output
Support 86*86 mm Size backbox installation
Dimension (mm): 76*76*29.2
DIN-Rail Mount, 1.5A per Channel and totally 6A, both110/220 VAC, 50-60Hz,LED status indicator and bypass button for each output, Parallel channels can form heavy current output.
Dimension (mm): 144*90*64
Android OS with built-in Smart home App to control lighting, curtain,air conditioning, security, floor heating, music etc, 1280*720 Resolution, built-in Camera and Microphone to support between-in Screen intercom
Built-in proximity sensor/Lux sensor, Bult-in temperature and humidiry sensor, Ethernet access via Wifi or RJ45, IP20,
Color Option: Ink Black, Pine Green, Moutain Blue. Powered by specialized power interface to support Buspro, KNX, Zigbee protoco.
Dimension (mm): 219*102*26
DIN-Rail Mount,10A per Channel, both110/250 VAC, 50-60Hz,internal use of 16A High-current magnetic relay,control motor via its relay function.
Dimension (mm): 144*90*66
DIN-Rail Mount,10A per Channel, both 110/250 VAC, 50 60Hz,internal use of 16A High-current magnetic relay.
Dimension (mm): 144*90*66
DIN-Rail Mount,10A per Channel, both 110/250 VAC, 50 60Hz,internal use of 16A High-current magnetic relay.
Dimension (mm): 72*90*66
DIN-Rail Mount, 5CH for relay output and 2CH DC 0-10V output. with FCU control and floor heating control, it has High-Medium-Low Fan Speed,also cooling and heating control if selected FCU function in ETS , it has 7CH floor heating control if selected by ETS, Support 7 digital temperature sensors.
Dimension (mm): 72*90*66
Source 10 Touch screen, Android OS with built-in Smart home App to control lighting, curtain,air conditioning, security, floor heating,
music etc, 1200*2000Resolution, built-in Microphone to support between-in Screen intercom, Built-in proximity sensor/Lux sensor,
Bult-in temperature and humidiry sensor,Ethernet access via Wifi or RJ45, IP20, Color Option：Dark Purple，
Powered by specialized power interface to support Buspro, KNX, Zigbee protoco.
Dimensions (mm): 301.3*155.2*9.8
Each channel can be used separately or used for RGBW composite control. support staircase lighting, flasher, logic control, threshold switching, sequence control and RGBW composite control switching.
Dimension (mm): 183*84*39
