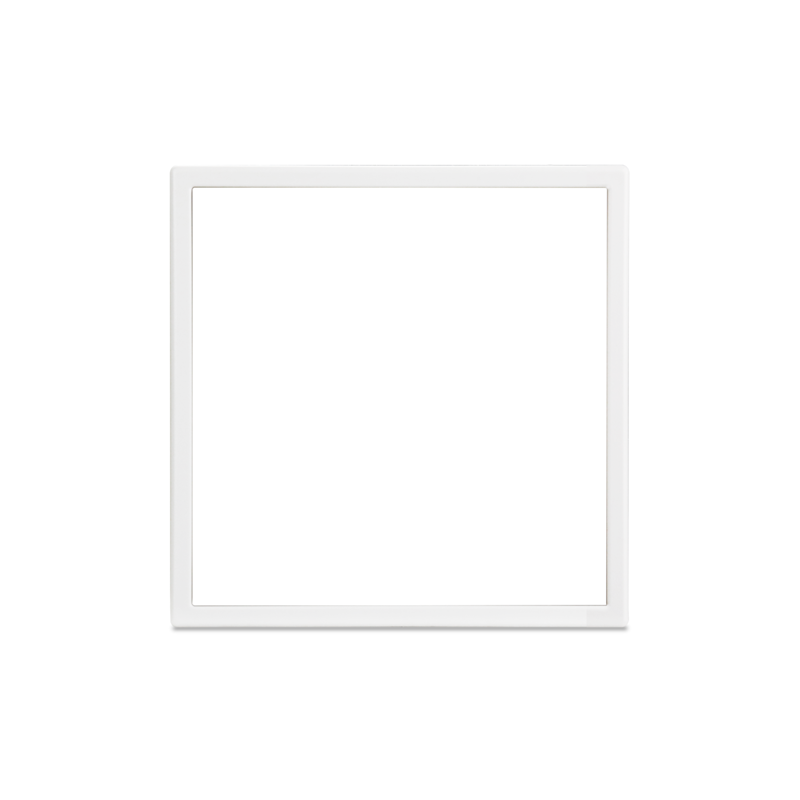

Tile Series 1 Gang Panel Frame 2.1 - Ivory White

Tile Series 4 Gang Panel Frame 2.1 - Space Gray, Metal (Champagne Gold/space gray color) material

Dimensions (mm): 344*86*10.5

Tile Series 1 Gang Panel Base Frame 2.1 EU，For MPFPIT-1P-KT.18 & MPFPIT-2P-KT.18

Dimensions (mm): 80.6 * 86.6

Tile Series 3 Gang Panel Frame 2.1 - Space Gray, Metal (Champagne Gold/space gray color) material

Dimensions (mm): 258*86*10.5

Tile Series 2 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 172*86*10.5

Tile Series 2 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 172*86*10.5

Tile Series 2 Gang Panel Frame 2.1 - Space gray, vertical installation,metal material(Champagne Gold/ space gray) is available.

Dimensions (mm):  172*86*10.5

Tile Series 3 Gang Panel Frame 2.1 - Space gray, vertical installation, metal material(Champagne Gold/ space gray) is available.

Dimensions (mm):  258*86*10.5

Tile Series 4 Gang Panel Frame 2.1, vertical installation, plastic(ivory white, ash gray, Champagne Gold and space gray) are available

Dimensions (mm): 344*86*10.5

Tile Series 3 Gang Panel Frame 2.1, vertical installation, plastic(ivory white, ash gray, Champagne Gold and space gray) are available

Dimensions (mm): 258*86*10.5

Tile Series 1 Gang Panel Frame 2.1 - Space Gray, Metal (Champagne Gold/space gray color) material

Dimensions (mm): 86×86×10.5

Tile Series 2 Gang Panel Frame 2.1 - Space Gray, Metal (Champagne Gold/space gray color) material

Dimensions (mm): 172*86*10.5

Tile Series 1 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 86*86*10.5

Tile Series 2 Gang Panel Frame 2.1, vertical installation, plastic(ivory white, ash gray, Champagne Gold and space gray) are available.

Dimensions (mm): 172*86*10.5

Tile Series 1 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 86*86*10.5

Tile Series 1 Gang Panel Base Frame, MPFPIT-0210-KT.17 & MPFPIT-0410-KT.17

Dimensions (mm): 80.6 * 86.6

Tile Series 4 Gang Panel Frame 2.1 - Space gray, vertical installation, metal material(Champagne Gold/ space gray) is available.

Dimensions (mm):   344*86*10.5

Panel Power Interface EU，Rated voltage：30V DC, Rated power : 50mA , output power: 0.2A/5v DC ，provides DC power and

communicates to HDL Wall panel,Tile Series Panel 2.1

Dimensions (mm): 51.2*51.2*23.1

Tile Series USB and Type-C Outlet 2.1, Rated voltage: 250V AC~, AC 100-240V~,50/60Hz , Maximum current 0.3A, Output Power 20W,
Type-C output : 5V / 3A, 9V / 2.22A, 12V / 1.67A .four colors(ivory white, ash gray, Champagne Gold and space gray) are
available for plastic plate,mount with plastic and metal frame
Frame is NOT included.

Dimensions (mm): 86*86*37.2

With 3.5-inch 480*480 LCD Touch screen, Built-in temperature, humidity and proximity sensor, used to control lighting,
curtain, scene, AC/FCU, floor heating, music and fresh air.
Frame is NOT included.
Dimenstions (mm): 76*76*11
Powered by M/PTCI2P.1

Tile Series 3 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 258*86*10.5

Panel power interface with auxiliary power interface EU， Rated voltage:30V , Retaed current: 10mA/30v,output power:1A/5v,

Auxiliary power supply:400ma/24v,provides DC power and communicates to Tile Series Thermostat 2.1 MPHT-6B-KT.18

Dimensions (mm): 51.2*51.2*23.1

Tile Series Thermostat 2.1, used to control air conditioning, floor heating and fresh air system, metal(Champagne Gold/space gray color),
Built-in temperature sensor, humidity sensor and proximity sensor, with LED backlight.
Frame is NOT included,
Powered by MPFPIT-2P-KT.18

Dimensions (mm): 86*86*10.5

Includes 4 independent logic blocks and 1 combined logic block, the logic relation can be “AND” “OR” , logic input conditions can be the condition of LUX sensor, microwave sensor, temperature sensor, dry contact and external telegram, Microwave detection range: H:3m D:10m
Dimension (mm): 84*84*32

Tile Series EU Socket 2.1, Rated voltage: 250V AC~ 16A,four colors(ivory white, ash gray, Champagne Gold and space gray) are
available for plastic plate,mount with plastic and metal frame,
Frame is NOT included.

Dimensions (mm): 86×86×39.1
