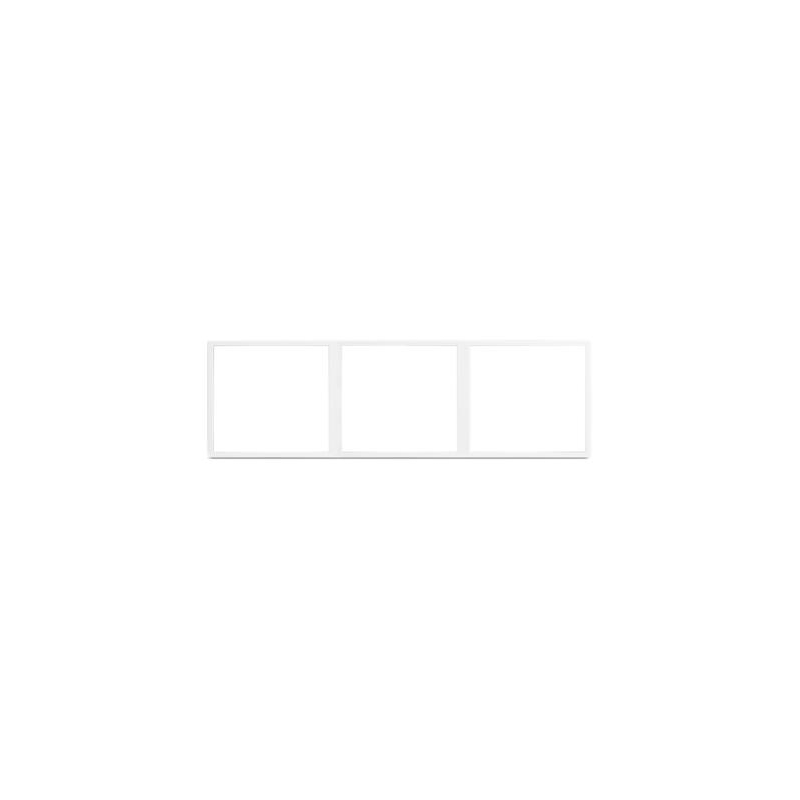

Tile Series 3 Gang Panel Frame 2.1 - Ivory White

Tile Series 1 Gang Panel Base Frame 2.1 EU，For MPFPIT-1P-KT.18 & MPFPIT-2P-KT.18

Dimensions (mm): 80.6 * 86.6

Tile Series 2 Gang Panel Frame 2.1 - Space gray, vertical installation,metal material(Champagne Gold/ space gray) is available.

Dimensions (mm):  172*86*10.5

Tile Series 4 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 344*86*10.5

Tile Series 1 Gang Panel Frame 2.1 - Space Gray, Metal (Champagne Gold/space gray color) material

Dimensions (mm): 86×86×10.5

Tile Series 2 Gang Panel Frame 2.1, vertical installation, plastic(ivory white, ash gray, Champagne Gold and space gray) are available.

Dimensions (mm): 172*86*10.5

Tile Series 3 Gang Panel Frame 2.1 - Space Gray, Metal (Champagne Gold/space gray color) material

Dimensions (mm): 258*86*10.5

Tile Series 1 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 86*86*10.5

Tile Series 2 Gang Panel Frame 2.1, vertical installation, plastic(ivory white, ash gray, Champagne Gold and space gray) are available.

Dimensions (mm): 172*86*10.5

Tile Series 3 Gang Panel Frame 2.1, vertical installation, plastic(ivory white, ash gray, Champagne Gold and space gray) are available

Dimensions (mm): 258*86*10.5

Tile Series 4 Gang Panel Frame 2.1 - Space gray, vertical installation, metal material(Champagne Gold/ space gray) is available.

Dimensions (mm):   344*86*10.5

Tile Series 2 Gang Panel Frame 2.1, vertical installation, plastic(ivory white, ash gray, Champagne Gold and space gray) are available.

Dimensions (mm): 172*86*10.5

Tile Series 1 Gang Panel Frame 2.1 - Space Gray, Metal (Champagne Gold/space gray color) material

Dimensions (mm): 86×86×10.5

Tile Series 2 Gang Panel Frame 2.1 - Space Gray, Metal (Champagne Gold/space gray color) material

Dimensions (mm): 172*86*10.5

Tile Series 2 Gang Panel Frame 2.1 - Space gray, vertical installation,metal material(Champagne Gold/ space gray) is available.

Dimensions (mm):  172*86*10.5

Tile Series 1 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 86*86*10.5

Tile Series 1 Gang Panel Base Frame, MPFPIT-0210-KT.17 & MPFPIT-0410-KT.17

Dimensions (mm): 80.6 * 86.6

Provides DC power and communicates to Tile Series Thermostat 2.0, Tile Display
Dimension (mm):  81.4*81.4*27

Tile Series EU Socket 2.1, Rated voltage: 250V AC~ 16A,four colors(ivory white, ash gray, Champagne Gold and space gray) are
available for plastic plate,mount with plastic and metal frame,
Frame is NOT included.

Dimensions (mm): 86×86×39.1

Tile Series 4 button smart panel 2.1，used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1P-KT.18

Dimensions (mm): 86*86*10.5

Tile Series Thermostat 2.1, used to control air conditioning, floor heating and fresh air system, metal(Champagne Gold/space gray color),
Built-in temperature sensor, humidity sensor and proximity sensor, with LED backlight.
Frame is NOT included,
Powered by MPFPIT-2P-KT.18

Dimensions (mm): 86*86*10.5

Panel power interface with auxiliary power interface EU， Rated voltage:30V , Retaed current: 10mA/30v,output power:1A/5v,

Auxiliary power supply:400ma/24v,provides DC power and communicates to Tile Series Thermostat 2.1 MPHT-6B-KT.18

Dimensions (mm): 51.2*51.2*23.1

Panel Power Interface EU，Rated voltage：30V DC, Rated power : 50mA , output power: 0.2A/5v DC ，provides DC power and

communicates to HDL Wall panel,Tile Series Panel 2.1

Dimensions (mm): 51.2*51.2*23.1

Tile Series 2 Port Ethernet Wall Outlet 2.1, Ethernet: unshielded Cat6 cable, Ethernet: unshielded Cat6 cable:RJ45, four colors(ivory
white, ash gray, Champagne Gold and space gray) are available for plastic plate,mount with plastic and metal frame
Frame is NOT included.

Dimensions (mm): 86*86*35.1

Tile Series 1 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 86*86*10.5
