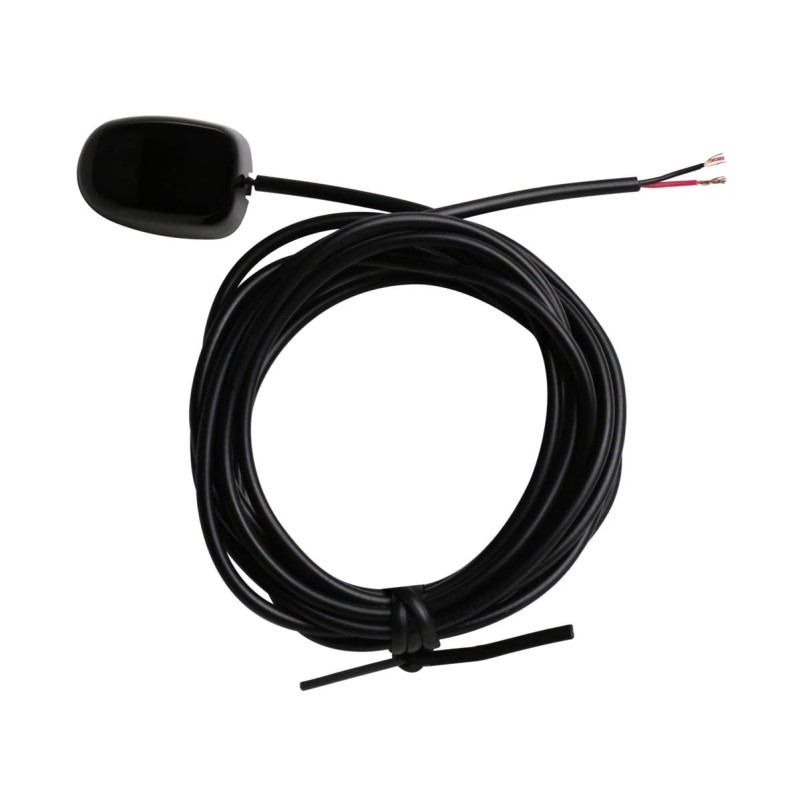

Infrared Emission Probe

Includes 24 Dry Contact input channels, serves as a bridge between mechanical or electronic control outputs and the KNX bus system. The unit enables the control of diverse targets, like dimmers, curtains, shutters, bells, etc.
Dimension (mm): 72*90*63

Includes 8 Dry Contact input channels, which is able to control sensors and logic controllers. The module can also control a diverse range of targets such as dimming controllers, curtain/shutter controllers, and switch controllers.
Dimension (mm): 49*31*12

Supports 4 channel infrared interfaces, totally can store up to 650 infrared codes, The control modes are ON/OFF control, Temperature control, Cooling/Heating, Fan speed control, Swing control etc.
Dimension (mm): 49*31*12

USB Pluggable, IR learning/ Programming Kit. Comes with Software driver, for Pro installers and Integrators.
Dimension (mm): 98*70*38

can be used as binary inputs and binary outputs. Binary input: used to switching, dimming and curtain control,Binary output: used to drive signal LEDs with on/off control or percentage control,Logic function: AND, OR, NAND, NOR, XOR, Auxiliary current:10mA/30V DC.
Dimension (mm): 72*90*64

Analog sensor, work with Dry Contact Module for temperature collection.

includes 4 Dry Contact input channels, coupled with a temperature sensor and 4 dimming output channels or provide LED status indication.
Dimension (mm): 49*31*12

Supports 4 channel infrared interfaces, totally can store up to 650 infrared codes, The control modes are ON/OFF control, Temperature control, Cooling/Heating, Fan speed control, Swing control etc.
Dimension (mm): 49*31*12

Occupancy Plus Sensor，Input voltage12 - 30V DC, support surface mount & surface mount，built in 24GHz millimeter wave
radar technology，includes LUX sensor, Temprature sensor , 2 ch Dry contact input, 1HVAC control，1 Constant brightness
control, logic block. supports Master & slave mode. Maximum detection range: diameter 8m，Support KNX Secure
Dimensions (mm): Φ66 x 34.6, Φ48.5 x 27.5

with 4-inch LCD screen，used to control lighting, curtain,air conditioning, security, floor heating, music etc, 480x480 Resolution,
Built-in speaker and Microphone
Built-in temperature and humidity sensors, Built-in human proximity sensor and light sensor, Ethernet access via Wifi or RJ45, IP20,Color Option: plastic Space Gray Frame/black glass.
Powered by specialized power interface to support Buspro, KNX, Zigbee protoco.
Dimension (mm):  86*86*11

Panel Power Interface EU, with base Frame
Rated voltage：30V DC, Rated power : 50mA, Output power: 0.2A/5v DC
Provides DC power and communicates to HDL Wall panel, Tile Series Panel 2.1

Dimensions: 81.4*81.4*25.6

Input volatage:21-30V DC and Auxiliary power DC24V, to provide power supply, RJ45 ethernet connection to Source 7/10/Mini built-in KNX interface and 2ch 5A relay output
Support 86*86 mm Size backbox installation

Dimension (mm):  76*76*29.2

Tile Series 1 Gang Panel Frame 2.1, plastic(ivory white, ash gray, Champagne Gold and space gray)

Dimensions (mm): 86*86*10.5

USB Pluggable, IR learning/ Programming Kit. Comes with Software driver, for Pro installers and Integrators.
Dimension (mm): 98*70*38

 Supports Deadbolt and Latch

Communication Protocol under Link: Buspro, Zigbee, KNX

 Lock Cylinder Level: C-Level

 Lock Body Type: Mechanical Lock Body

 Unlocking Methods: Fingerprint, Password, Induction Card, Mechanical Key, Mobile APP Temporary Password, Dual Authentication

 Door Opening Direction: Supports Left and Right Reversal of Handle

 Virtual Password: Supports up to 32 Digits (Including Correct Password)

 Temporary Password: Supported

 Key Capacity: 50, Fingerprint Capacity: 50, Induction Card Capacity: 50

 Fingerprint Sensor Type: Semiconductor / Recognition Speed: <1s

 Alarms: Tamper Alarm, Low Battery Alarm, Anti-Tamper Lock (Locks After 3 Consecutive Failed Attempts Within 5 Minutes for Password/Card or 5 for

 Fingerprint, System Locks for 3 Minutes) / Stay Detection

 Working Power: 4 AA Batteries

 Emergency Power: Type C

 Dimensions: 360*73*23mm

 Supports Deadbolt and Latch

 Door Thickness: 40mm-120mm

 Doorbell: Electronic Doorbells

 Battery Life: 6-8 Months

 Shell Material: Aluminum Alloy

 Installation: Suitable for Iron and Wooden Doors
