Airkit2 Pro Air Quality Sensor

Occupancy Plus Sensor，Input voltage12 - 30V DC, support surface mount & surface mount，built in 24GHz millimeter wave
radar technology，includes LUX sensor, Temprature sensor , 2 ch Dry contact input, 1HVAC control，1 Constant brightness
control, logic block. supports Master & slave mode. Maximum detection range: diameter 8m，Support KNX Secure
Dimensions (mm): Φ66 x 34.6, Φ48.5 x 27.5

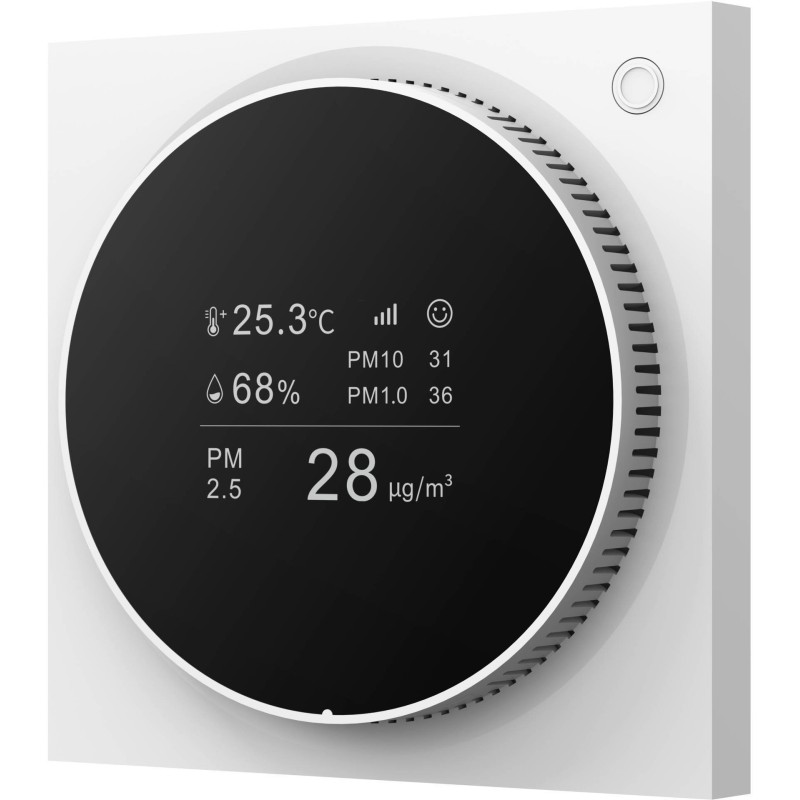

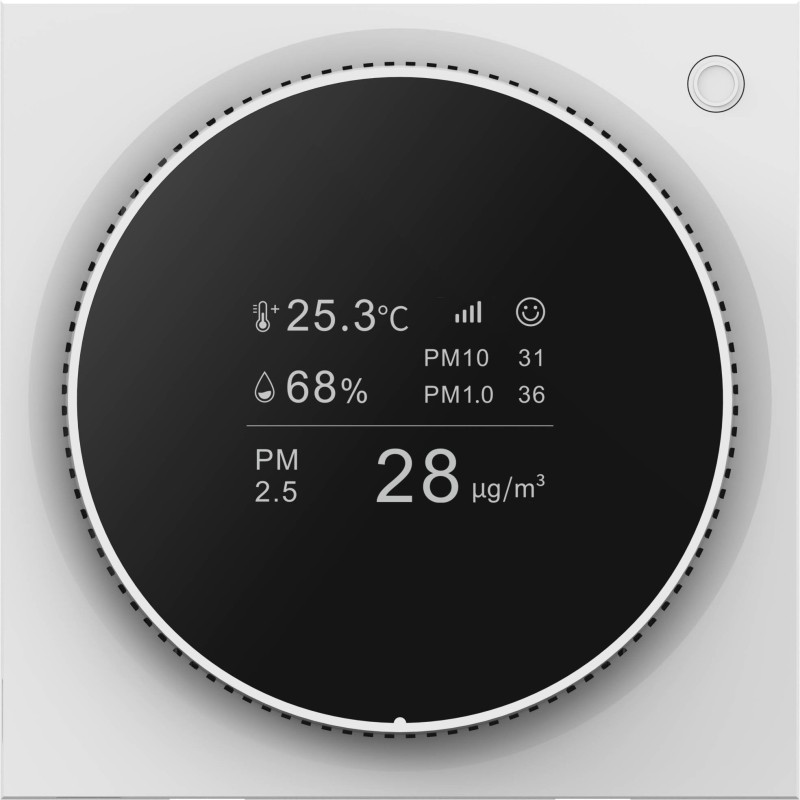

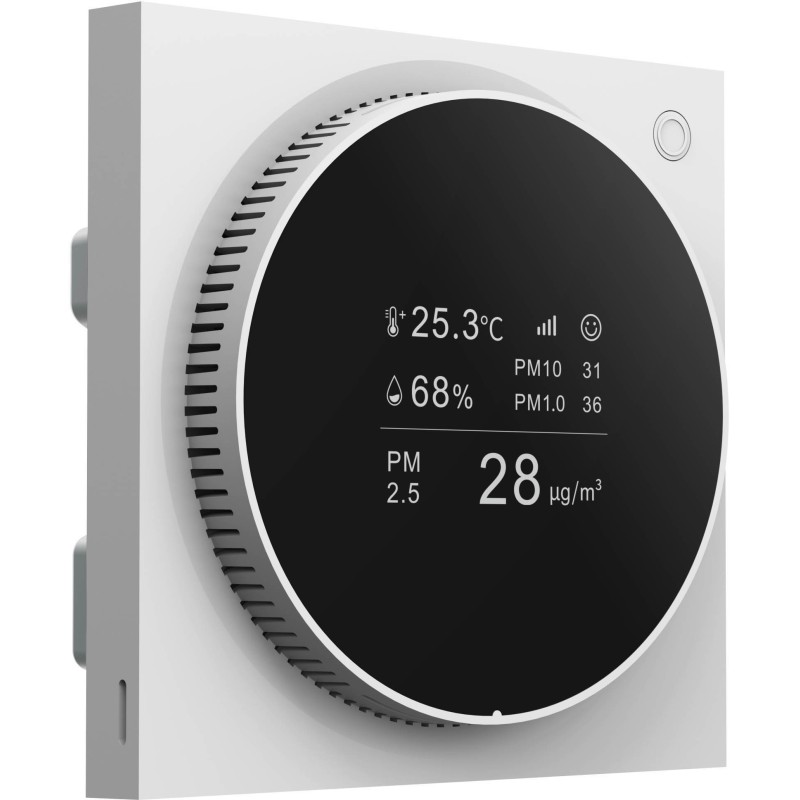

Airkit2 Pro Air Quality Sensor can be used to detect and display indoor air quality, including air quality indicators such as
environmental temperature and humidity, Lux, PM2.5, PM1.0, PM10, CO2, TVOC and HCHO.

Main functions:

1. Built-in temperature and humidity detection
2. Built-in illuminance detection
3. Built-in PM1.0, PM2.5, PM10 detection
4. Built-in CO2 detection
5. Built-in HCHO detection
6. Built-in TVOC detection
7. Built-in microwave distance detection, automatically turns on the screen when a human body is detected, and automatically turns off the screen when the human body leaves
8. Support custom level threshold for air quality
9. Support mixed calculation of internal and external inputs for testing projects
10. It has 5 logical block functions, each logical block can set 10 target outputs, and supports logical locking

Dimensions (L*W*H): 86mm*86mm*49.5mm

Airkit2 Pro Air Quality Sensor.
Rated Voltage: 30V DC, Standard KNX Terminal, air quality detection and display, including temperature, humidity, illuminance, PM2.5, PM1.0, PM10 and CO₂.
Supports local screen display, remote real‑time monitoring and linkage with other devices to improve indoor air quality.
Support 86mm flush mounting box.

Main functions:

1. Built-in temperature and humidity detection

2. Built-in illuminance detection

3. Built-in PM1.0, PM2.5, PM10 detection

4. Built-in CO2 detection

5. Built-in microwave distance detection, automatically turns on the screen when a human body is detected, and automatically turns off the screen when the human body leaves

6. Support custom level threshold for air quality

7. Support mixed calculation of internal and external inputs for testing projects

8. It has 5 logical block functions, each logical block can set 10 target outputs, and supports logical locking

Dimensions: 86*86*49.5

Includes 4 independent logic blocks and 1 combined logic block, the logic relation can be “AND” “OR” , logic input conditions can be the condition of LUX sensor, microwave sensor, temperature sensor, dry contact and external telegram, Microwave detection range: H:3m D:10m
Dimension (mm): 84*84*32

Standard KNX Terminal, includes motion sensor, LUX sensor and external telegram detection, motion detection range H:3m D:9m.
Dimension (mm): 63*63*38

Includes PIR sensor, temperature sensor and brightness sensor. 4 independent logical blocks and 1 combined block are available, and each block contains 10 object outputs.
Logical relations AND, OR can be set and single mode and master / slave mode are supported. motion detection range H:3m D:12m.
Dimension (mm): Φ85*85

Includes Lux sensor, motion sensor and temperature sensor, support trigger alarms, adjust lighting and regulate HVAC systems effortlessly. motion detection range H:2.5m D:24m.
Dimension (mm): 84*84*42

Includes LUX sensor, microwave sensor,humidity sensor,temperature sensor, dry contact, external telegram, Microwave detection range: Φ30m (Installation height:3m)
Dimension (mm): 126*78*114

Standard KNX Terminal, includes motion sensor, Lux sensor, temperature sensor, dry contact and external telegrams, motion detection range H:2.5m D:8m.
Dimension (mm): 80*80*28
