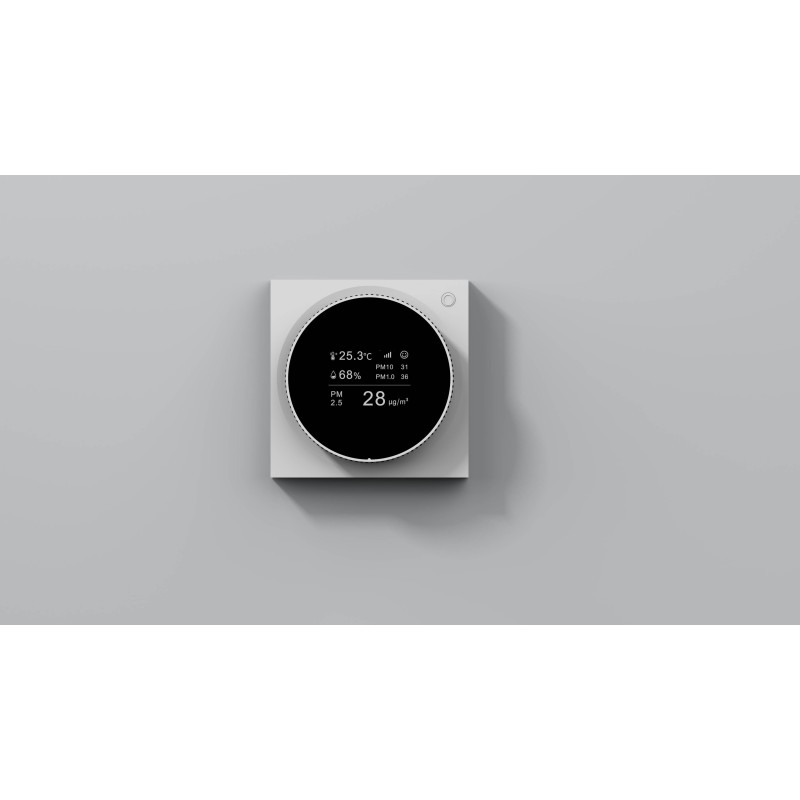

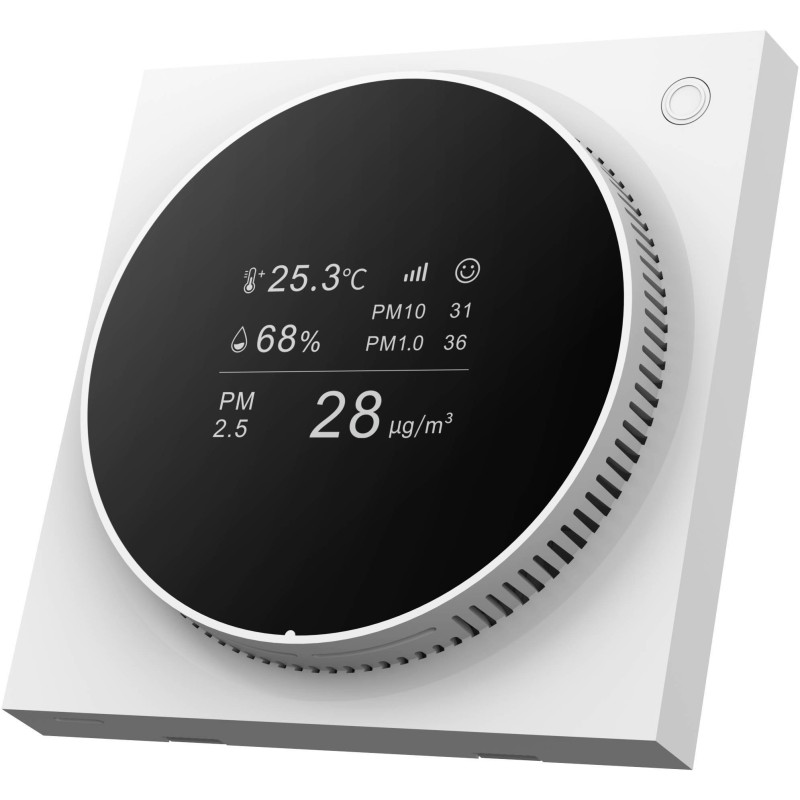

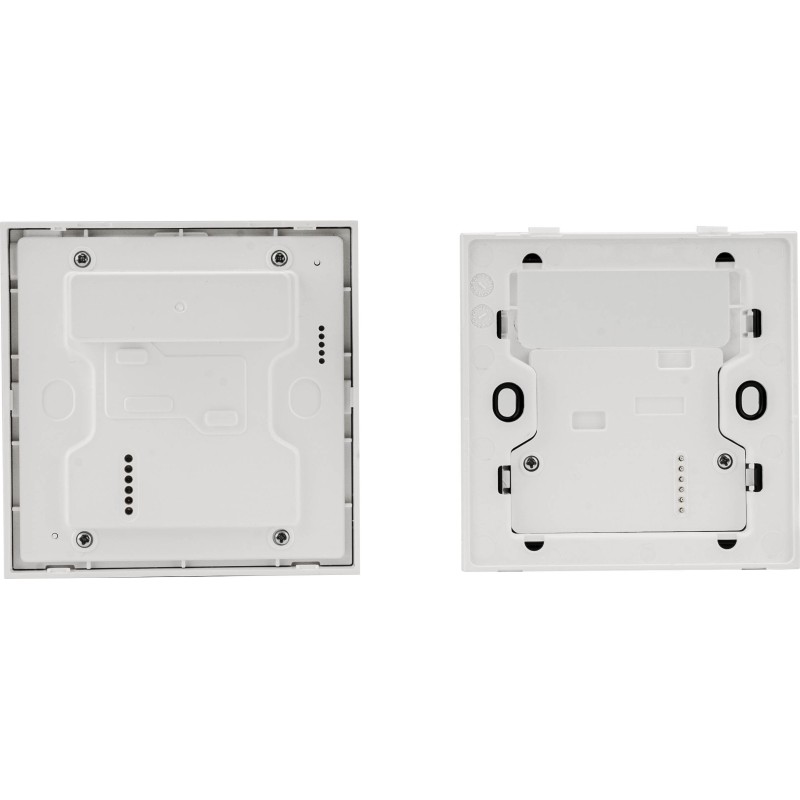

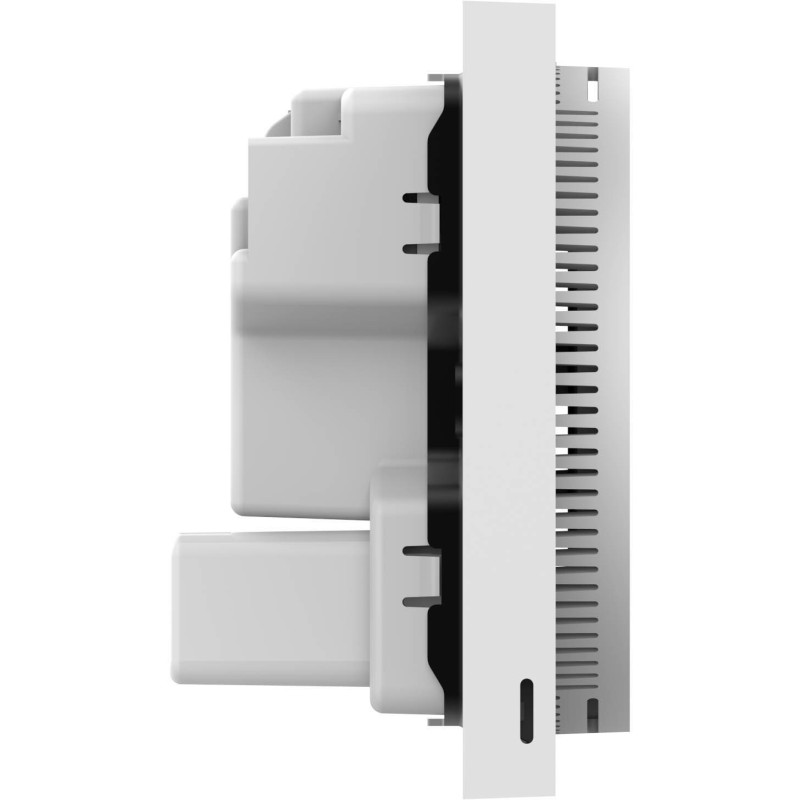

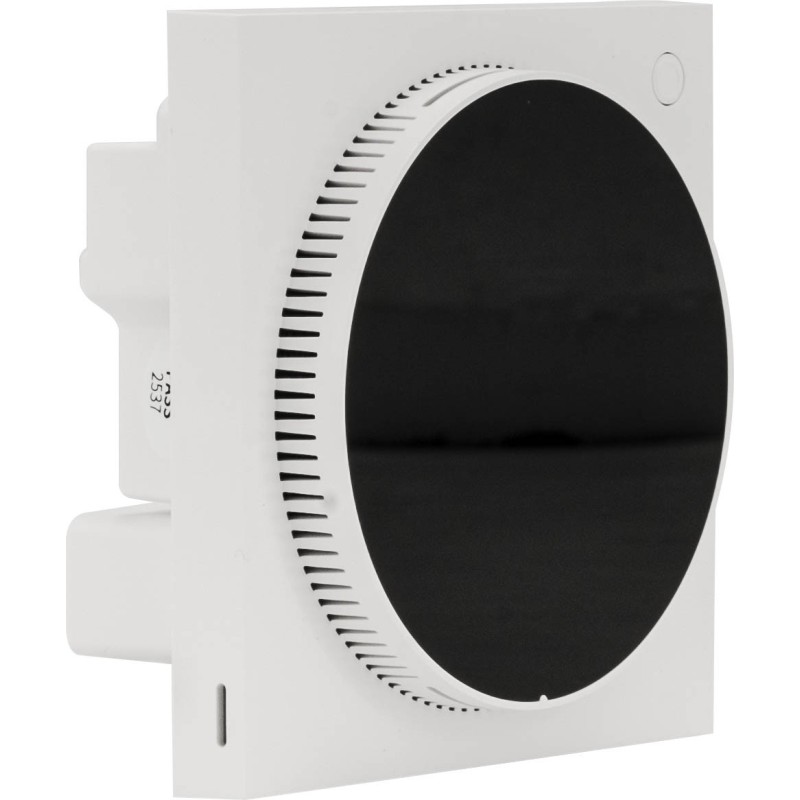

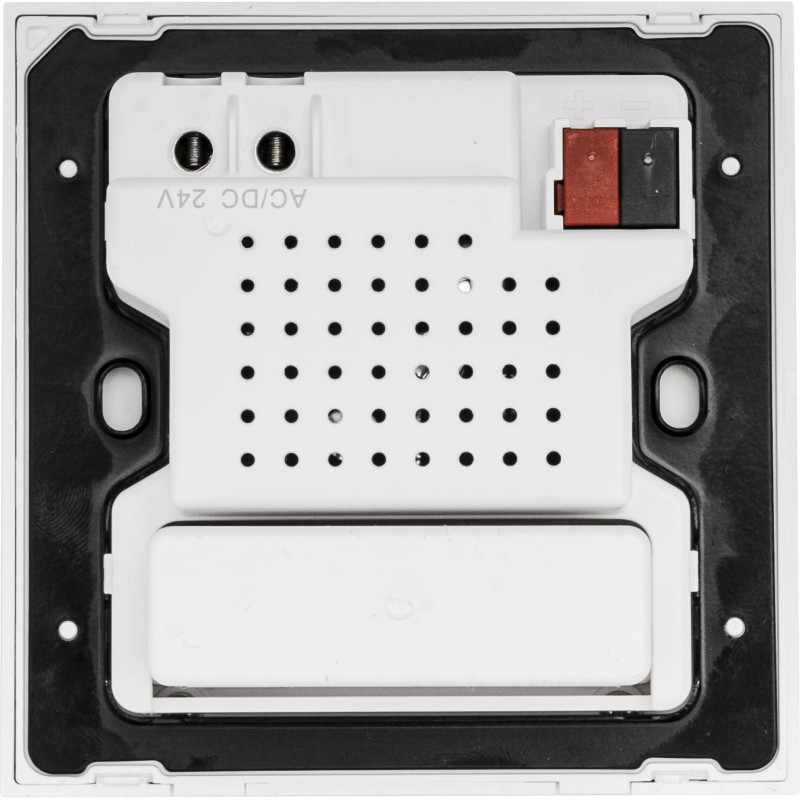

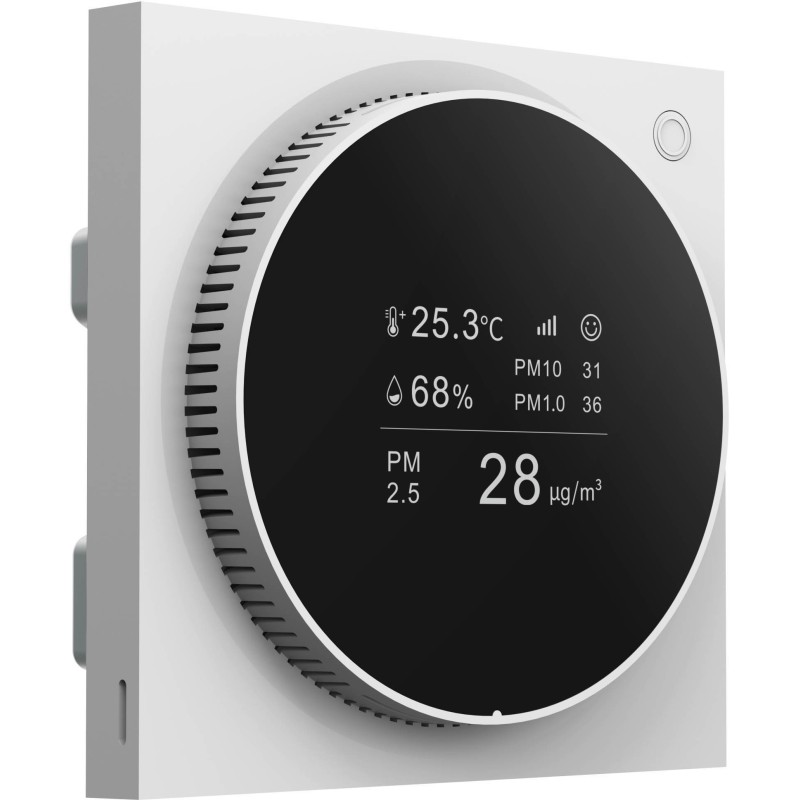

Airkit2 Pro Air Quality Sensor can be used to detect and display indoor air quality, including air quality indicators such as
environmental temperature and humidity, Lux, PM2.5, PM1.0, PM10, CO2, TVOC and HCHO.
Main functions:
1. Built-in temperature and humidity detection
2. Built-in illuminance detection
3. Built-in PM1.0, PM2.5, PM10 detection
4. Built-in CO2 detection
5. Built-in HCHO detection
6. Built-in TVOC detection
7. Built-in microwave distance detection, automatically turns on the screen when a human body is detected, and automatically turns off the screen when the human body leaves
8. Support custom level threshold for air quality
9. Support mixed calculation of internal and external inputs for testing projects
10. It has 5 logical block functions, each logical block can set 10 target outputs, and supports logical locking
Dimensions (L*W*H): 86mm*86mm*49.5mm
Includes Lux sensor, motion sensor and temperature sensor, support trigger alarms, adjust lighting and regulate HVAC systems effortlessly. motion detection range H:2.5m D:24m.
Dimension (mm): 84*84*42
Airkit2 Pro Air Quality Sensor.
Rated Voltage: 30V DC, Standard KNX Terminal, air quality detection and display, including temperature, humidity, illuminance, PM2.5, PM1.0, PM10 and CO₂.
Supports local screen display, remote real‑time monitoring and linkage with other devices to improve indoor air quality.
Support 86mm flush mounting box.
Main functions:
1. Built-in temperature and humidity detection
2. Built-in illuminance detection
3. Built-in PM1.0, PM2.5, PM10 detection
4. Built-in CO2 detection
5. Built-in microwave distance detection, automatically turns on the screen when a human body is detected, and automatically turns off the screen when the human body leaves
6. Support custom level threshold for air quality
7. Support mixed calculation of internal and external inputs for testing projects
8. It has 5 logical block functions, each logical block can set 10 target outputs, and supports logical locking
Dimensions: 86*86*49.5
Standard KNX Terminal, includes motion sensor, LUX sensor and external telegram detection, motion detection range H:3m D:9m.
Dimension (mm): 63*63*38
Includes LUX sensor, microwave sensor,humidity sensor,temperature sensor, dry contact, external telegram, Microwave detection range: Φ30m (Installation height:3m)
Dimension (mm): 126*78*114
Includes PIR sensor, temperature sensor and brightness sensor. 4 independent logical blocks and 1 combined block are available, and each block contains 10 object outputs.
Logical relations AND, OR can be set and single mode and master / slave mode are supported. motion detection range H:3m D:12m.
Dimension (mm): Φ85*85
Airkit2 Pro Air Quality Sensor.
Rated Voltage: 30V DC, Standard KNX Terminal, air quality detection and display, including temperature, humidity, illuminance, PM2.5, PM1.0, PM10.
Supports local screen display, remote real‑time monitoring and linkage with other devices to improve indoor air quality.
Main functions:
1. Built-in temperature and humidity detection
2. Built-in illuminance detection
3. Built-in PM1.0, PM2.5, PM10 detection
4. Built-in microwave distance detection, automatically turns on the screen when a human body is detected, and automatically turns off the screen when the human body leaves
5. Support custom level threshold for air quality
6. Support mixed calculation of internal and external inputs for testing projects
7. It has 5 logical block functions, each logical block can set 10 target outputs, and supports logical locking
Support 86mm flush mounting box.
Dimensions: 86*86*49.5
Occupancy Plus Sensor，Input voltage12 - 30V DC, support surface mount & surface mount，built in 24GHz millimeter wave
radar technology，includes LUX sensor, Temprature sensor , 2 ch Dry contact input, 1HVAC control，1 Constant brightness
control, logic block. supports Master & slave mode. Maximum detection range: diameter 8m，Support KNX Secure
Dimensions (mm): Φ66 x 34.6, Φ48.5 x 27.5
Includes 4 independent logic blocks and 1 combined logic block, the logic relation can be “AND” “OR” , logic input conditions can be the condition of LUX sensor, microwave sensor, temperature sensor, dry contact and external telegram, Microwave detection range: H:3m D:10m
Dimension (mm): 84*84*32
Standard KNX Terminal, includes motion sensor, Lux sensor, temperature sensor, dry contact and external telegrams, motion detection range H:2.5m D:8m.
Dimension (mm): 80*80*28
The Granite Display is a multifunctional 4-inch high-resolution touch control panel. You can quickly access your most-used functions or scenes via shortcut buttons on the home screen, and customize these shortcuts as desired. As you explore more of the user interface, you’ll find it intuitive and comfortable for controlling your home devices.
With a 4-inch LCD and aluminum panel, it is used to control lighting, curtains, scenes, air conditioning, floor heating, music, and fresh air systems.
Built-in temperature sensor, humidity sensor, and proximity sensor.
Color options: Space Gray frame / black glass.
Powered by M/PCI2PE.1
Dimensions (mm): 86 × 86 × 11
Occupancy Plus Sensor，Input voltage12 - 30V DC, support surface mount & surface mount，built in 24GHz millimeter wave
radar technology，includes LUX sensor, Temprature sensor , 2 ch Dry contact input, 1HVAC control，1 Constant brightness
control, logic block. supports Master & slave mode. Maximum detection range: diameter 8m，Support KNX Secure
Dimensions (mm): Φ66 x 34.6, Φ48.5 x 27.5
DIN-Rail Mount,10A per Channel, both110/250 VAC, 50-60Hz,internal use of 16A High-current magnetic relay,control motor via its relay function.
Dimension (mm): 144*90*66
Provides DC power and communicates to M/PTL4.1
Dimension (mm): 86*86*30
DIN-Rail Mount, with USB Conector galvanically isolated from KNX Bus that establish a bidirectional data connection between PC and KNX BUS, Enable addressing, setting parameters, visualzation, protocolin and diagnoisis of the bus devices.
Dimension (mm): 70*90*36
KNX VRV/VRF Outdoor Gateway，supports up to 64 indoor units. It enables centralized connection of multiple air conditioners to a smart home control system or BMS system.
Supports RS485, KNX, or UART (with optional wireless module) and is compatible with major brands including
Daikin, Hitachi, Toshiba, Mitsubishi Electric, Hisense, Haier, Panasonic, York, Midea, LG, Gree, Samsung, Trane, Carrier, etc.
Dimensions(mm): 108*87*49.7
DIN-Rail Mount, both110/240 VAC, 50-60Hz, supports communication between the HDL KNX BUS and the DALI BUS system. capable of managing 64 DALI ballasts, support switch, dimming, color temperature adjustment, RGB/RGBW/xy coordinate color control ,DALI2 Compitable.
Dimension (mm): 72*90*64
KNX Dual Output Power Supply Module, DIN-Rail Mount, 100-240V~ 50/60Hz,
Provides one KNX BUS output 30V DC 640mA and one 24V DC 640mA auxiliary output,
overload, short-circuit, over-voltage and over-temperature protection, manual reset function.
Dimensions: 72*90*64
Airkit2 Pro Air Quality Sensor can be used to detect and display indoor air quality, including air quality indicators such as
environmental temperature and humidity, Lux, PM2.5, PM1.0, PM10, CO2, TVOC and HCHO.
Main functions:
1. Built-in temperature and humidity detection
2. Built-in illuminance detection
3. Built-in PM1.0, PM2.5, PM10 detection
4. Built-in CO2 detection
5. Built-in HCHO detection
6. Built-in TVOC detection
7. Built-in microwave distance detection, automatically turns on the screen when a human body is detected, and automatically turns off the screen when the human body leaves
8. Support custom level threshold for air quality
9. Support mixed calculation of internal and external inputs for testing projects
10. It has 5 logical block functions, each logical block can set 10 target outputs, and supports logical locking
Dimensions (L*W*H): 86mm*86mm*49.5mm
