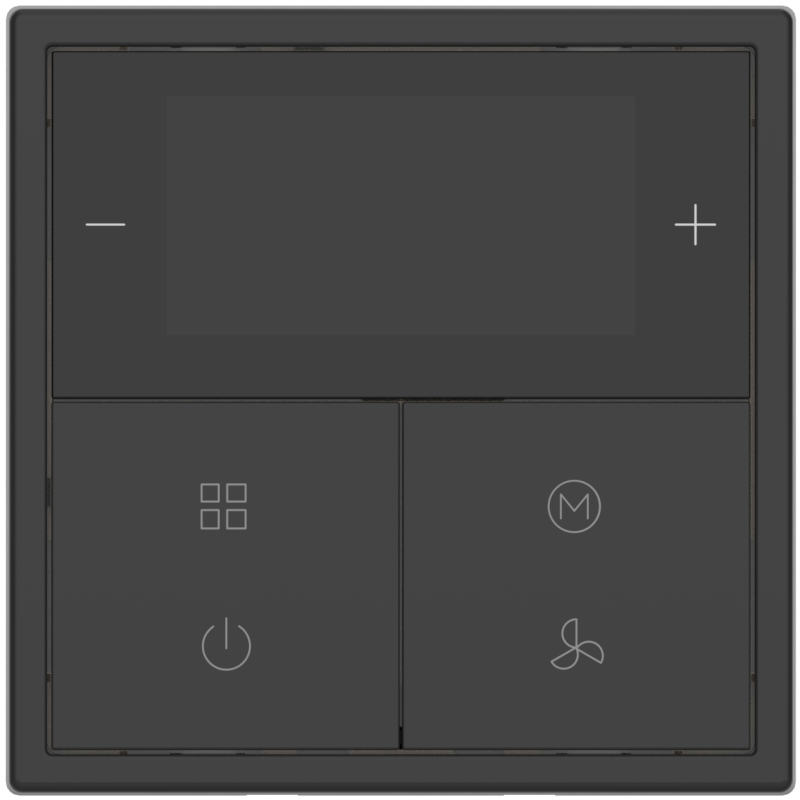

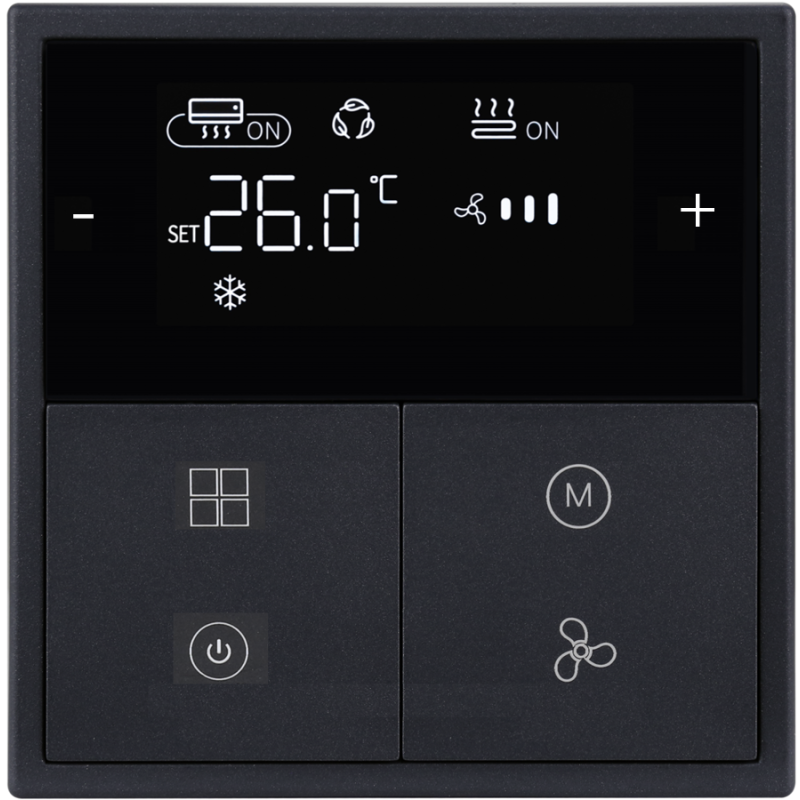

Tile Series Thermostat 2.1, used to control air conditioning, floor heating and fresh air system, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor, humidity sensor and proximity sensor, with LED backlight.
Frame is NOT included,
Powered by MPFPIT-2P-KT.18
Dimensions (mm): 86*86*10.5
Featuring cross-protocol compatibility, a comprehensive product portfolio, and globally adaptable installation, it meets diverse project demands with ease. Every detail — from precision engineering to refined finishes — is crafted to enhance reliability and elevate the user experience.
Tile Series offers over 30 styles, including modular keypads, thermostats, touch panels, and sockets. It supports using a single intelligent panel or combining multiple units to expand functionality. For international projects, HDL provides country-specific, standard-compliant sockets for power, network, doorbells, and waterproof needs—ensuring seamless integration, one-stop procurement, and a consistent aesthetic.
Precise Microwave Sensing Powered by HDL RadarX Sensing, the Tile Series uses precise 5.8GHz microwave sensing with adjustable sensitivity levels (1–5) to automatically illuminate the panel and trigger preset scenes—such as night lighting in bathrooms—without any physical touch. This hands-free solution enhances user convenience, boosts energy efficiency, and improves safety, especially for elderly users during nighttime, delivering a smarter and more comfortable experience.
Tile Series features an NTC temperature and humidity sensor combined with HDL’s multi-point data collection across up to eight panels. Using a dynamic weighted algorithm, it overcomes inaccuracies caused by single-point sensors affected by sunlight or airflow—delivering temperature readings within ±1°C of the actual room climate. This precision enables smarter automation, optimizing air conditioning and underfloor heating for enhanced comfort and energy efficiency. Note: The HDL testing laboratory provides the test data. Actual results may vary depending on the usage environment.
Tile Series uses precise microwave sensing and group control to sync panel lights in a room. All panels wake or sleep together, avoiding flickering lights that disturb sleep. Soft, gradual backlight changes reduce eye strain and protect sleep quality. Ideal for bedrooms, children’s rooms, and senior care spaces, this system enhances nighttime comfort, prevents accidental operation, and lowers energy use.
With an LCD and six buttons, Tile Series Climate Panel enables the easy control of air conditioning, floor heating, and ventilation system to keep the ambience healthy and comfortable.
You can use just one smart control panel if it meets your requirement, or combine multiple smart panels to serve more functions in a specific area.
With built-in proximity sensor in the panel, the LCD and icon backlight automatically wake up when approached by someone so that you can easily find the right switch in darkness.
Applying segment code LCD screen, the panel offers comprehensive monitoring of environment measurements with a build-in temperature and humidity sensor.
HDL Tile comprises a series of smart control panels with push-button keypads, Climate Panels, socket panels with USB ports, and emergency button panels. Its rectangular or square buttons are just like little tiles paved on the surface. HDL Tile can keep the walls in a consistent and beautiful look while meeting various requirements of functionality.
Tile Series Thermostat 2.1, used to control air conditioning, floor heating and fresh air system, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor, humidity sensor and proximity sensor, with LED backlight.
Frame is NOT included,
Powered by MPFPIT-2P-KT.18
Dimensions (mm): 86*86*10.5
Tile Series 3 button smart panel 2.1, used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon,
Frame is NOT included
Poweredby MPFPIT-1P-KT.18
Dimenstions (mm): 86*86*10.5
Tile Series 2 button smart panel 2.1, used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space
gray), Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon, Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Tile Series 8 button smart panel 2.1，used to control lighting,curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon,
Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimenstions (mm): 86*86*10.5
Tile Series 4 button smart panel 2.1, used to control lighting, curtain and scene, Metal(Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Tile Series 2 button smart panel 2.1, used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space
gray), Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon, Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Granite Series 4 Buttons Smart Panel EU, with Metal plate, used to control lighting,curtain and scene, RGB backlight,Support Lable/Icon Customized,
Powered by M/PCI.1-A, Avaiable for Space Gray Color
Dimensions (mm): 86*86*11
with LCD screen and Aluminum Frame, Multipage used to control the lighting, curtain, scene, music, AC and floor heating. built-in temperature sensor,.Powered by M/PCI.1-A
Dimension (mm): 86*86*10
The Granite Display is a multifunctional touch control panel with a 4.3-inch high-resolution 800×480 LCD. You can quickly access your most-used functions or scenes via shortcut buttons on the home screen and customize these shortcuts as desired. Exploring the user interface, you’ll find it intuitive and comfortable for controlling your home devices.
With an aluminum panel, it is used to control lighting, curtains, scenes, air conditioning, floor heating, music, and fresh air systems.
Built-in temperature sensor, humidity sensor, and proximity sensor.
Color options: Space Gray frame / black glass.
Powered by M/PCI2PU.2, supports both vertical and horizontal user interface (UI).
Dimensions (mm): 86 × 116 × 11
Tile Series 8 button smart panel 2.1，used to control lighting,curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon,
Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimenstions (mm): 86*86*10.5
The Granite Display is a multifunctional 4-inch high-resolution touch control panel. You can quickly access your most-used functions or scenes via shortcut buttons on the home screen, and customize these shortcuts as desired. As you explore more of the user interface, you’ll find it intuitive and comfortable for controlling your home devices.
With a 4-inch LCD and aluminum panel, it is used to control lighting, curtains, scenes, air conditioning, floor heating, music, and fresh air systems.
Built-in temperature sensor, humidity sensor, and proximity sensor.
Color options: Space Gray frame / black glass.
Powered by M/PCI2PE.1
Dimensions (mm): 86 × 86 × 11
Tile Series 4 button smart panel 2.1，used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Granite Series 6 Buttons Smart Panel US, with Metal plate, used to control lighting,curtain and scene, RGB backlight,Support Lable/Icon Customized,
Powered by M/PCI.3-A, Avaiable for Space Gray Color
Dimensions (mm): 86*116*11
Tile Series Card Holder Panel 2.1, Dry contact， master card panel for energy control of hotel guest room , Voltage 24V DC ，
High frequency M1 card 13.56 MHz ，Four colors(ivory white, ash gray, Champagne Gold and space gray) are available for plastic,
Frame is NOT included
Dimensions (mm): 86×86×45.8
Tile Series Card Holder Panel 2.1, Dry contact, κύριο πάνελ κάρτας για έλεγχο ενέργειας σε δωμάτιο ξενοδοχείου. Τάση: 24V DC. Υψηλής συχνότητας κάρτα M1 13.56 MHz.
Διατίθενται τέσσερα χρώματα για πλαστικό: ιβουάρ λευκό, γκρι στάχτης, σαμπανιζέ χρυσό και γκρι διαστήματος.
Το πλαίσιο ΔΕΝ περιλαμβάνεται.
Διαστάσεις (mm): 86 × 86 × 45.8
with 4-inch LCD screen，used to control lighting, curtain,air conditioning, security, floor heating, music etc, 480x480 Resolution,
Built-in speaker and Microphone
Built-in temperature and humidity sensors, Built-in human proximity sensor and light sensor, Ethernet access via Wifi or RJ45, IP20,Color Option: plastic Space Gray Frame/black glass.
Powered by specialized power interface to support Buspro, KNX, Zigbee protoco.
Dimension (mm): 86*86*11
Tile Series Thermostat 2.1, used to control air conditioning, floor heating and fresh air system, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor, humidity sensor and proximity sensor, with LED backlight.
Frame is NOT included,
Powered by MPFPIT-2P-KT.18
Dimensions (mm): 86*86*10.5
